AJAX Button User Manual

Wireless panic button
Hide thumbs Also See for Button:
Table of Contents

Advertisement

Quick Links

Download this manual

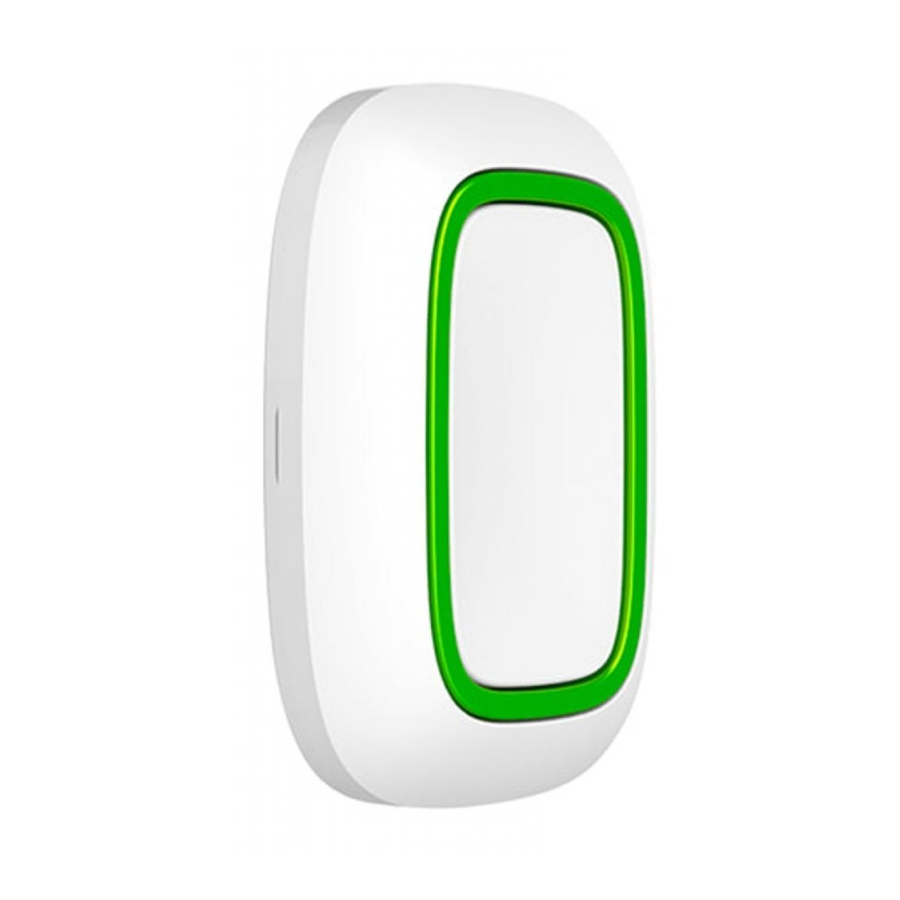

Button is a wireless panic button with protection against accidental press and
additional mode to control
Button is compatible with
integration modules!
Button is connected to the security system and configured via
Android, macOS, and Windows. The users are alerted of all alarms and events via
push notifications, SMS, and phone calls (if enabled).
Buy panic button Button
Functional elements
Button User Manual
Updated December 28, 2020
automation devices
Ajax hubs
only. No support for
.
ocBridge Plus
and
Ajax apps
uartBridge
on iOS,

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Button and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Button

Summary of Contents for AJAX Button

  • Page 1 Button User Manual Updated December 28, 2020 Button is a wireless panic button with protection against accidental press and additional mode to control automation devices Button is compatible with Ajax hubs only. No support for ocBridge Plus uartBridge integration modules! Button is connected to the security system and configured via...

  • Page 2: Operating Principle

    Ajax automation devices with a short or long press of a button. In panic mode, the Button can act as a panic button and signal about a threat, or inform about an intrusion, as well as a fire, gas or medical alarm. You can choose the type of alarm in the button settings.
  • Page 3 (for example, walls or floors) will reduce this distance. Button is easy to carry around. You can always keep it on a wrist or a neckless. The device is resistant to dust and splashes.
  • Page 4 3. Click Add and the countdown will begin. 4. Hold the button for 7 seconds. When the Button is added, the LEDs will flash green once. For detection and pairing, the Button must be located within the hub radio communication zone (on the single protected object).
  • Page 5 Off — protection disabled. Long press — in order to send alarm you Protection against accidental activation should hold the button down for more than 1.5 seconds. Double-pressing — in order to send alarm you should double-press on the button with a pause of no more than 0.5 seconds.
  • Page 6 LED Brightness Accidental press protection Displays the selected type of protection against (available only in panic mode) accidental activation: Off — protection disabled. Long press — in order to send alarm you should hold the button down for more than 1.5 seconds.
  • Page 7 Learn more about device temporary deactivation Disconnects Button from the hub and deletes its Unpair Device settings Operating indication Button status is indicated with red or green LED indicators. Category Indication Event The button is not registered in Green LEDs flash 6 times...

  • Page 8: Use Cases

    Use cases Panic Mode As a panic button, the Button is used to call for security company or help, as well as for emergency notification through the app or sirens. Button support 5 types of alarms: intrusion, fire, medical, gas leak, and panic button. You can choose the type of alarm in the device settings.

  • Page 9: Control Mode

    To bind an automation device action to a long or short press of a Button: 1. Open the Ajax app and go to the Devices tab. 2. Select Button in the list of devices and go to settings by clicking the gear icon 3. Select the Control mode in the Button mode section.
  • Page 10 4. Click the Button to save the changes. 5. Go to the Scenarios menu and click Create scenario if you are creating a scenario for the first time, or Add scenario if scenarios have already been created in the security system.
  • Page 11 . Enter the Scenario Name and specify the Device Action to be executed by pressing the Button. Switch on Switch off Switch the state When configuring a scenario for Relay, which is in pulse mode, the Device Action...
  • Page 12 Mute Fire Alarm By pressing the Button, the fire signal can be muted (if the corresponding operating mode is selected). The reaction of the system to pressing a button depends on the settings and the state of the system: Interconnected FireProtect Alarms are disabled — pressing the Button mutes the sirens of triggered FireProtect/FireProtect Plus detectors.

  • Page 13: Maintenance

    Buy Holder How to carry around Button The button is convenient to carry with you thanks to a special hole on its body. It can be worn on the wrist or around the neck, or hung on a key ring.

  • Page 14: Technical Specifications

    When the battery has run down, the user will receive a notification in the Ajax app, and the LED will steadily light up red and go out each time the button is pressed. How long Ajax devices operate on batteries, and what affects this Battery Replacement Technical Specifications...

  • Page 15: Complete Set

    3. Double-sided tape 4. Quick Start Guide Warranty The warranty for the products manufactured by the AJAX SYSTEMS MANUFACTURING limited liability company is valid for 2 years after purchase and does not extend to the bundled battery. If the device does not function properly, we recommend that you first contact the...
