Re Calibration
The factory setting at 41˚C can be altered to suit site conditions.
Warning: Care must be taken when altering the setting as incorrect calibration can cause
injury.
• Remove the grub screw (4) and lift the cartridge cover off (3).
• Re-calibrate by removing the temperature stop rings from the cartridge and set the mixed water
to the required temperature.
• Once the required temperature is achieved replace the two temperature stop rings on the
splined spindle of the cartridge as shown. These two rings are used to prevent the temperature
of the cartridge from being altered whilst in use. The stop rings should be locked at either end
of the operating cycle and will form a physical stop to prevent the cartridge turning (see
below)
• Refit the cartridge cover (3) and grub screw (4).
• Recheck the calibrated temperature

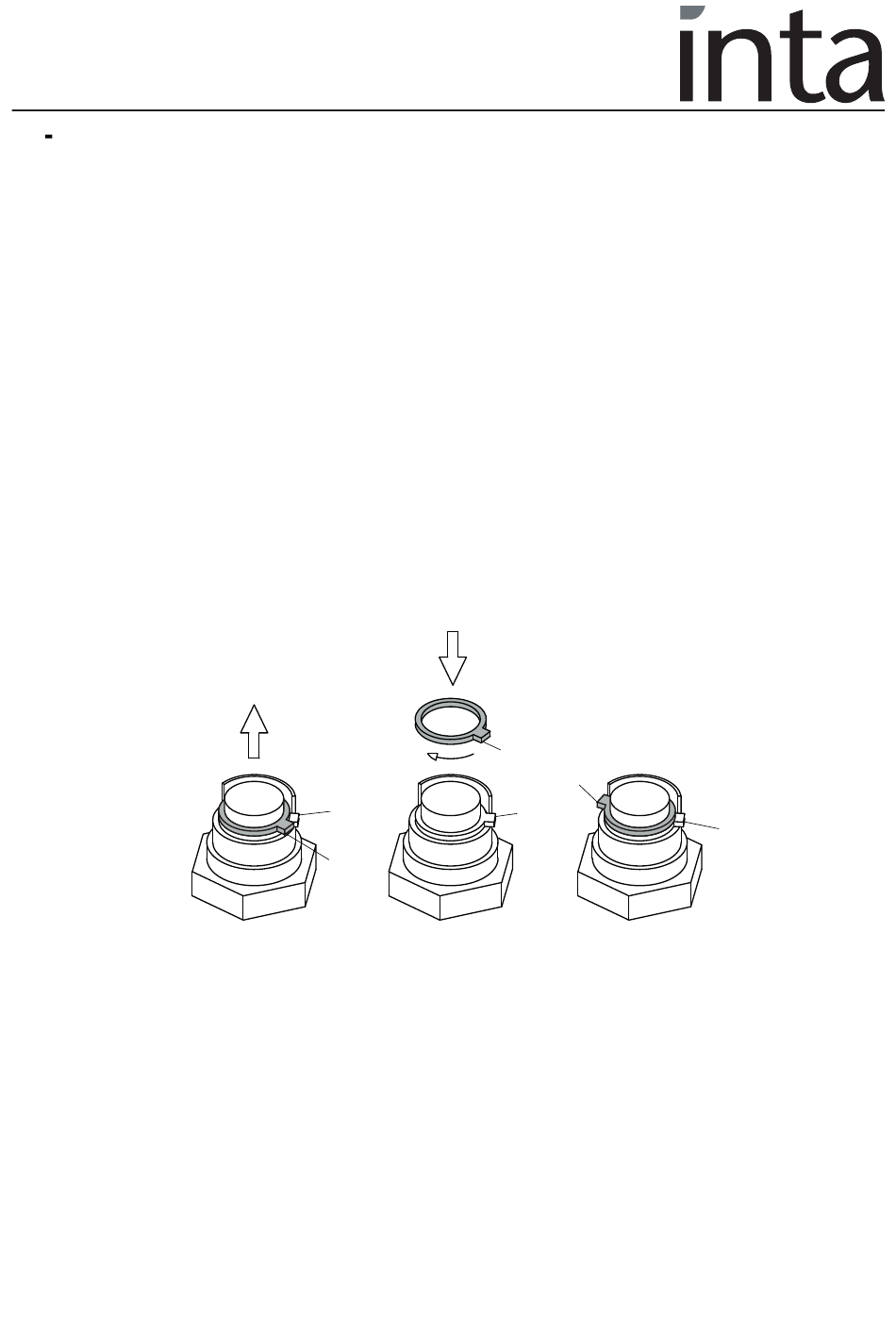

Remove rings and
set water temperature
© Intatec Ltd 2016
B
A
Replace rings
as shown
10
A
A
B
Rings act
as stops
B
