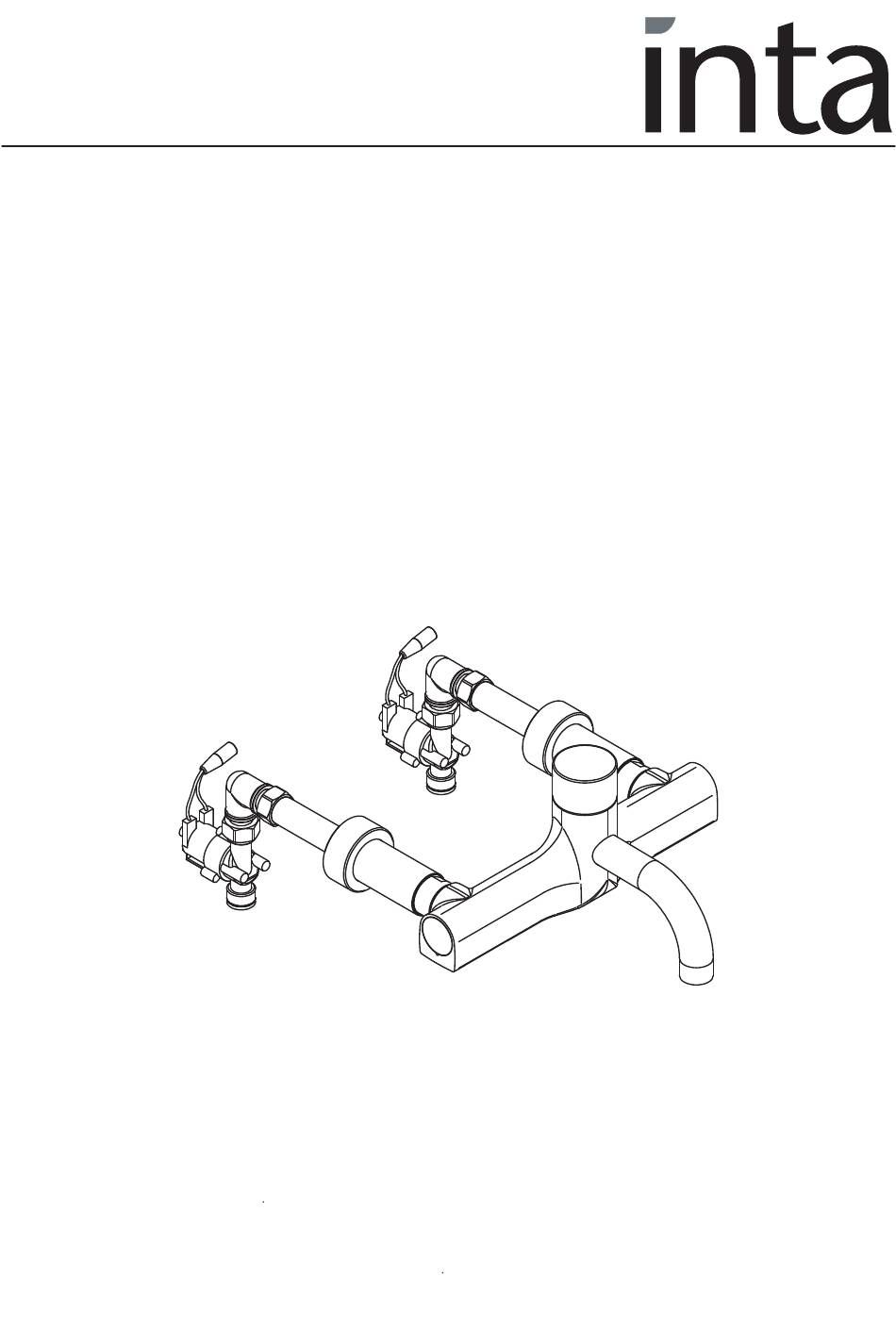

Infra Red

Thermostatic Wall Mixer

HTMWMBCP, HTMWMMCP,

HTMWMBRS & HTMWMMRS

Installation and Maintenance Instructions

Intatec Ltd

Airfield Industrial Estate

Hixon

Staffordshire

ST18 0PF

In this procedure document we have endeavoured to make the

information as accurate as possible

Tel: 01889 272 180

We cannot accept any responsibility should it be found that in

Fax: 01889 272 181

any respect the information is inaccurate or incomplete or

email: sales@intatec.co.uk

becomes so as a result of further developments or otherwise

web: www.intatec.co.uk

Table of Contents

Need help?

Do you have a question about the HTMWMBCP and is the answer not in the manual?

Questions and answers

Summary of Contents for Inta HTMWMBCP

Page 1 Infra Red Thermostatic Wall Mixer HTMWMBCP, HTMWMMCP, HTMWMBRS & HTMWMMRS Installation and Maintenance Instructions Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF In this procedure document we have endeavoured to make the information as accurate as possible Tel: 01889 272 180...
Page 2: Table Of Contents
Contents Thank you for choosing the Inta infra red thermostatic wall mixer. Subject Page Introduction Technical Data Components - Fixed Spout Components - Removable Spout Dimensions Installation Battery Replacement Installation Connections Operation Trouble Shooting Re-calibration Aftercare Removing Spout and Disinfection...
Page 3: Introduction
HTMWMMRS - HTM safe touch infra red thermostatic wall mounted tap mains operated with removable spout. Technical Data This Inta thermostatic mixer is suitable for installations on all types of plumbing systems, including gravity supplies, fully pumped, modulating combination boiler, unvented water heater and unbalanced supplies i.e. Cold Mains Tank Fed Hot.
Page 4: Components Fixed Spout
Preparation for Installation Before starting the installation, ensure that the site conditions are suitable - see Technical Data. The tap is supplied for wall mounting as shown. Flush the water supply pipes thoroughly prior to installation - see page 13. Do not allow debris, PTFE tape or any metal particles to enter the mixer.
Page 6 Components Item Description Item Description Body inc. Outlet Diffuser Hot Water Inlet Assembly including 5 l/m flow regulator Thermostatic Cartridge Cover Hot Water Port Blanking Assembly Cover Retaining Screw Cold Water Port Blanking Assembly Concealing Plate Sealing Washer Cold Water Inlet Tail Assembly Solenoid Valve Hot Water Inlet Tail Assembly Elbow Assembly...
Page 7: Dimensions
Dimensions Ø45 Ø55 Note: Sensor to be fitted to either side of tap body 85 min Ø50 Ø33 G½B Note: Slide concealing plate forward Please refer to HBN 00-10 to expose the isolation valve for guidance on Use a screw driver or Allen key mounting distance for to operate the valve outlet to waste fitting...
Page 8: Battery Replacement
Installation • Fit tap assembly to the mounting panel, using the back nuts and slide the concealing plates to the panel. • Connect the supply pipes to the tap, cold on the right, hot on the left. • Fit the cover (3) to the tap using the grub screw (4) provided. •...
Page 9: Installation Connections
Installation Connections Viewed from rear of tap Proximity Sensor It is important that the hole is carefully created and does not exceed Ø40mm Hot Water Cold Water Inlet Inlet Operation Hot Supply Cold Supply 3cm to 8cm Sensing Range As the sensor is activated the flow of water will commence, the mixer is factory set to deliver water at a pre-set maximum temperature of 41˚C.
Page 10: Trouble Shooting
Trouble Shooting Fault Diagnosis Mixed water temperature is not hot enough. Ensure the hot water supply is at a constant temperature above 60˚C. Re-calibrate as per page 10. Check for airlocks in the pipework. The water goes cold during operation. Insufficient stored hot water supply.
Page 11: Re-Calibration
Re Calibration The factory setting at 41˚C can be altered to suit site conditions. Warning: Care must be taken when altering the setting as incorrect calibration can cause injury. • Remove the grub screw (4) and lift the cartridge cover off (3). •...
Page 12: Aftercare
The HTMWMBRS and HTMWMMRS wall mounted taps have a removable spout to assist with cleaning, disinfection by immersion or sterilisation in an autoclave. Inta recommend that a replacement spout is available as the tap should not be left without a spout (HTMSP16XX).
Page 13 Removing Spout HTMSP16XX • Using a suitably sized Allen key unscrew the grub screw (24) located beneath the spout. The grub screw must be removed completely to ensure the ‘O’ rings are not damaged when the spout is pulled away. •...
Page 14: System Flushing Procedure
System Flushing Procedure The water system must be thoroughly flushed before attempting to commission or operate this tap to ensure all pipework is clean and free from any debris. This system flushing procedure allows the process to be efficiently conducted with the tap installed. Failure to carry out effective system flushing before commissioning or operating this product could damage or limit the performance of the product and invalidate the product guarantee.
Page 15: Sterilization Process
System Flushing Procedure OPEN 90° CLOSE 9 - Close the isolating ball 10 - Unscrew the connector plug using 11- Repeat the procedure for valve on the hot supply a suitably sized spanner and refit the cold inlet side. the check valve housing and end cover Sterilization Process NOTE: Not a replacement for chlorination...
Page 16 Sterilization Process REMOVE 5 - Fit the cold inlet plug into the hot position and the hot into the cold position Wave hand in front of sensor to start water flow. See table below OPEN for times needed OPEN 90° 90°...
Page 17: Tmv3 Installation Instructions
When this Mixer is used in a DO8 Application the following Instructions apply: Introduction This Inta Thermostatic Mixer has been specifically designed and manufactured to meet the requirements of BS 7942: 2000 and NHS D08. The product has been independently tested and approved as a TYPE 3 valve under the TMV3 scheme.
Page 18 Installation 2. Consideration must be made for the possibility of multiple/ simultaneous demands being made on the supply system whilst the thermostatic mixing valve is in use, all practical pre-cautions must be made to ensure that the valve is not affected. Failure to make provision within the pipe sizing etc will affect the performance of the valve.
Page 19 Commissioning IMPORTANT – The following instructions must be read and understood prior to the commissioning of a Thermostatic Mixer. If under any circumstances there are aspects to the installation/system which do not comply with the specification laid down, the valve MUST NOT is put into operation until the system/installation complies with our specification.
Page 20 Commissioning 6. Ensure that the application, to which the valve will be used, is appropriate for the approved designation. 7. The above information must be recorded and updated on every occasion when any work is carried out on the valve. In Service Testing To ensure that the Thermostatic Mixer maintains a high level of protection, we advise the following in service testing is followed (the same equipment used to commission the valve initially must be used in...
Page 21 In Service Testing 6. Dependant upon the results obtained from the first two series of tests; there are a number of possible outcomes. If no significant change in the mixed water temperatures (e.g. < 1˚C) is recorded between commissioning and step 3e above or between commissioning and 5 of this section, the next in service testing should be carried out at a period of 24 to 28 weeks after initial commissioning.
Page 22: Guarantee
Guarantee Intatec guarantees the product to be free from defects in materials and workmanship at the date of purchase. If the product is determined to be defective at the date of original purchase due to improper materials or workmanship and you inform us of this within the prescribed warranty period, (five years for showering products, one year for commercial products), of the date of purchase, Intatec will, without charge for labour or parts, repair or (at the discretion of Intatec) replace the product or its defective parts subject to the terms and limitations below.
Page 24 Please leave this Manual for the User To activate your product warranty please visit www.intatec.co.uk and click on Product Registration Intatec Ltd Airfield Industrial Estate Hixon Staffordshire ST18 0PF Tel: 01889 272 180 Fax: 01889 272 181 email: sales@intatec.co.uk web: www.intatec.co.uk ©...
