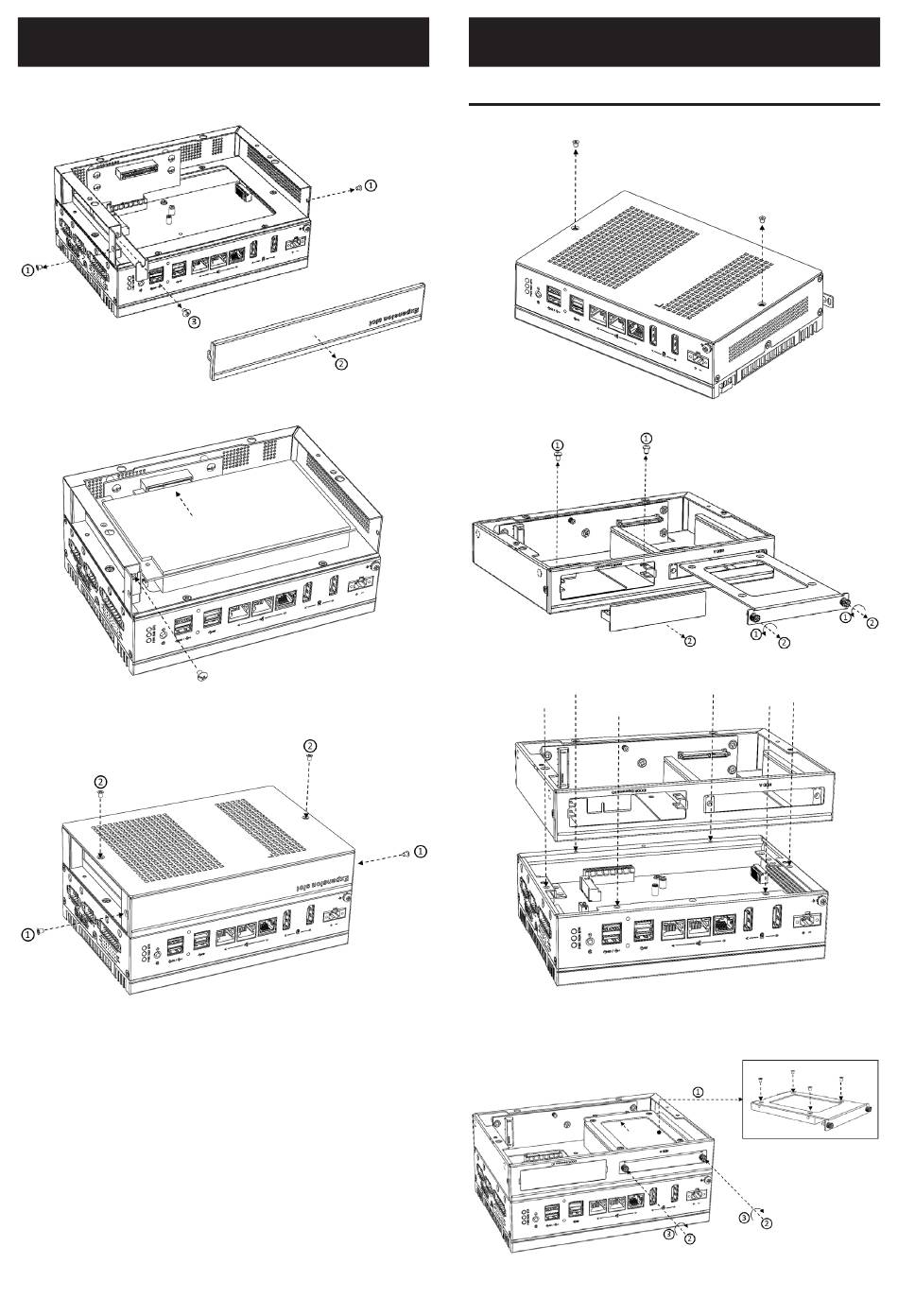

Simple Maintenance Process (Cont.)
3. Secure the extension module on 2nd stack and remove
the front cover and the PCIE-bracket.
4. Install PCIE card and secure with screws.
5. Place front cover and bottom cover back then secure
with screws.
Simple Maintenance Process (Cont.)
iDoor&HDD Module
1. Remove 2 screws from the bottom cover.
2. Remove iDoor cover and HDD tray.
3. Secure the 6 screws on 2nd stack to combine base unit.
4. HDD extension slot: lock HDD into HDD tray and insert
HDD tray on the track then tighten the screws.
