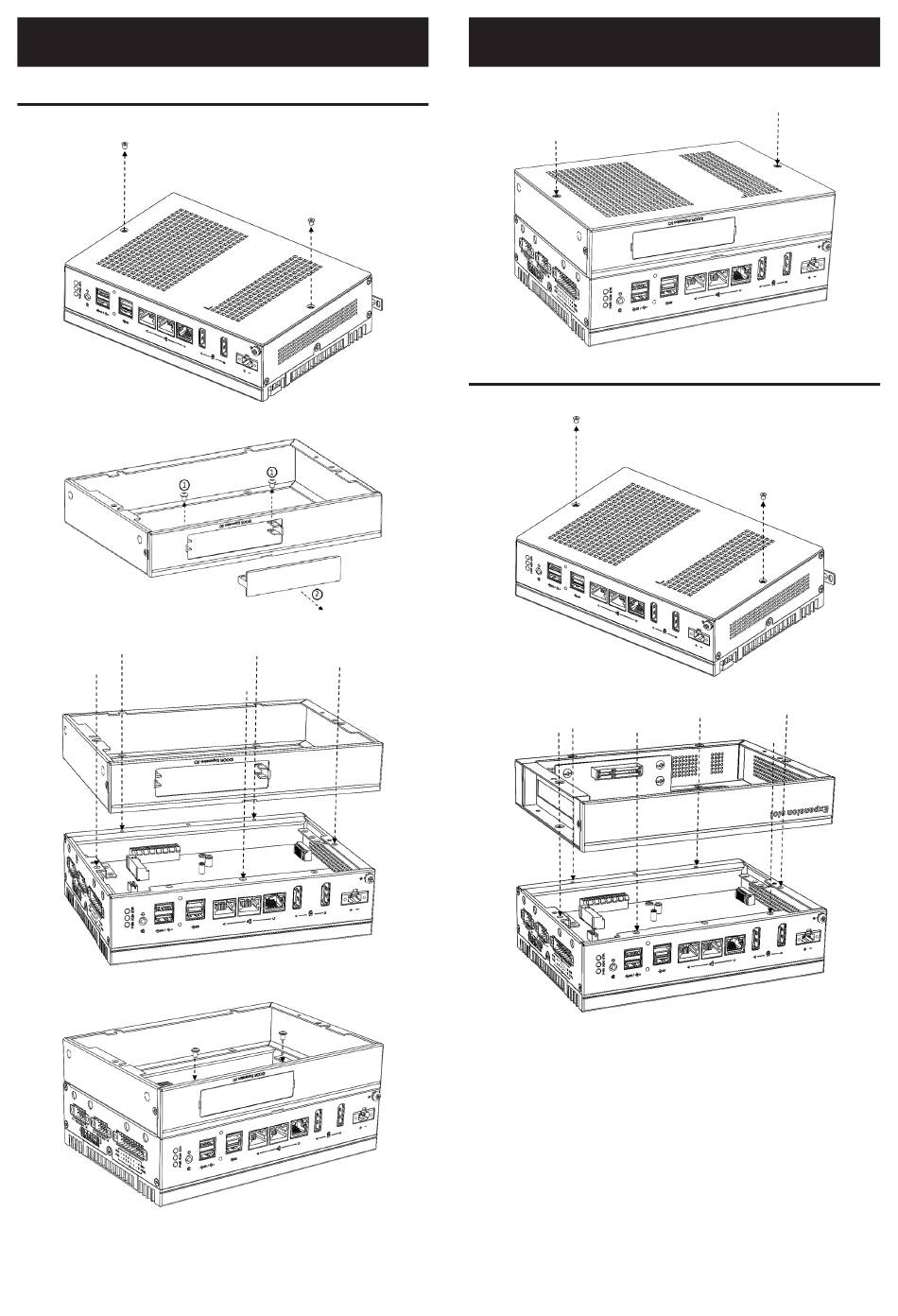

Simple Maintenance Process (Cont.)

iDoor Module

1. Remove 2 screws from bottom cover

2. Remove iDoor cover.

3. Secure 5 screws on 2nd stack to combine base unit.

4. Secure the iDoor cover back.

4 UNO-148 V2 Startup Manual

Simple Maintenance Process (Cont.)

5. Lock screws back to bottom cover.

PCIE Module

1. Remove the 2 screws from the bottom cover.

2. Secure 6 screws on 2nd stack to combine base unit.
