Advantech MIO-4370 Instruction Manual

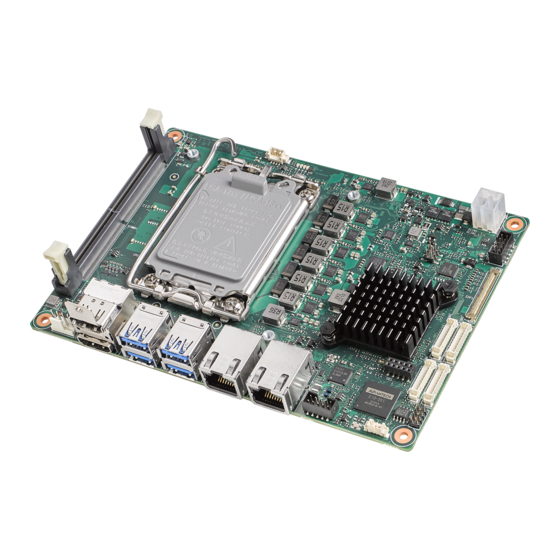

MIO-4370
12th/13th Gen. Intel
Socket Type), 4" EPIC SBC, DDR5, Dual HDMI,
eDP , 2 x 2.5GbE with TSN, 4 x USB 3.2, CAN Bus,
TPM
Packing List
Before you begin installing your system, please make sure
that the following items have been shipped:
1. 1 x MIO-4370 SBC
2. 1 x USB 2.0 Cable 20cm
3. 1 x Audio Cable 20cm
4. 2 x COM Cable 20cm
5. 1 x Startup Manual
6. 1 x Screw Kit (3 x M3x5L screws for the M.2 module, 4
sets of screws and stand-off)
7. 1 x Jumper Kit (10 x Jumpers)
8. 1 x WISE-DeviceOn Package
9. 1 x McAfee/Acronis Package
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Note 1: For detailed contents regarding MIO-4370,
please refer to information on the support web-
site: https://www.advantech.com/en/support.
Note 2:
Adobe Reader is required to view any PDF file.
Adobe Reader can be downloaded at: https://get.
adobe.com/reader/otherversions/ (Adobe is the
trademark of Adobe Systems Incorporated.)
For more information about this and other Advantech
products, visit our website at:
https://www.advantech.com/en
For technical support and customer service, visit our
support website at:
https://www.advantech.com/en/support
This manual is for the the MIO-4370 series.
Part No. 2046437000
Printed in China
Core™ Processor (LGA1700
®
(P/N: 1700030406-01)
(P/N: 1700019584-01)
(P/N: 1700030404-01)
(P/N: 2046437000)
Edition 1
March 2023
Specifications
General
• CPU:
- Intel Core™ i9-12900TE (16 Cores / 24 Threads, up to
®
4.8 GHz)
- Intel Core™ i7-12700TE (12 Cores / 20 Threads, up to
®
4.6 GHz)
- Intel Core™ i5-12500TE (6 Cores / 12 Threads, up to
®
4.3 GHz)
- Intel Core™ i3-12100TE (4 Cores / 8 Threads, up to
®
4.0 GHz)
• Chipset: R680E/H610E
• System memory: DDR5-4800 up to 32GB, SODIMM,
Single Channel
• BIOS: AMI UEFI 256Mbit
• Watchdog timer: 65536 level, 0~65535 sec (Multi-level
WDT)
• TPM: Support
• Battery: Lithium 3V/220mAH
• Audio: Supports High Definition Audio (HD), Line-in, Line-
out, and Mic-in.
Expansion Interface
• 2 x M.2 M-Key (Chipset: R680E ) or 1 x M.2 M-Key (Chip-
set: H610E) for 2280 module (PCIe Gen 4 x4)
• 1 x M.2 E-Key for 2230 module (PCIe x1, USB 2.0)
• 1 x M.2 B-Key (Chipset: H610E only) with SIM slot for
3042 module (USB 2.0 only)
Display
• Controller:
- Intel UHD Graphics 770 with 32 Execution Units
®
- Intel UHD Graphics 730 with 24 EUs (i3-12100TE only)
®
• Maximum resolution:
- LCD: 1 x eDP 1.4b, up to 5120 x 3200 @ 60Hz, 24bpp
- HDMI: 2 x HDMI 1.2, up to 1920 x 1200 @ 60Hz, 24bpp
• Multiple displays: eDP + HDMI + HDMI
Ethernet Interface
• Controller: LAN1/LAN2: Intel® i225
• Speed: LAN1/LAN2: up to 2.5GbE with TSN support
I/O
• External I/O: 2 x RJ-45, 2 x HDMI, 4 x USB 3.2
• Internal I/O: 2 x USB 2.0, 2 x RS-232/422/485, CANBus,
I C, Audio, GPIO, Front Panel
2
• Power connector type: ATX 2x2 pin 180D (Optional ATX
2x2 pin 90D)
MIO-4370 Startup Manual 1
