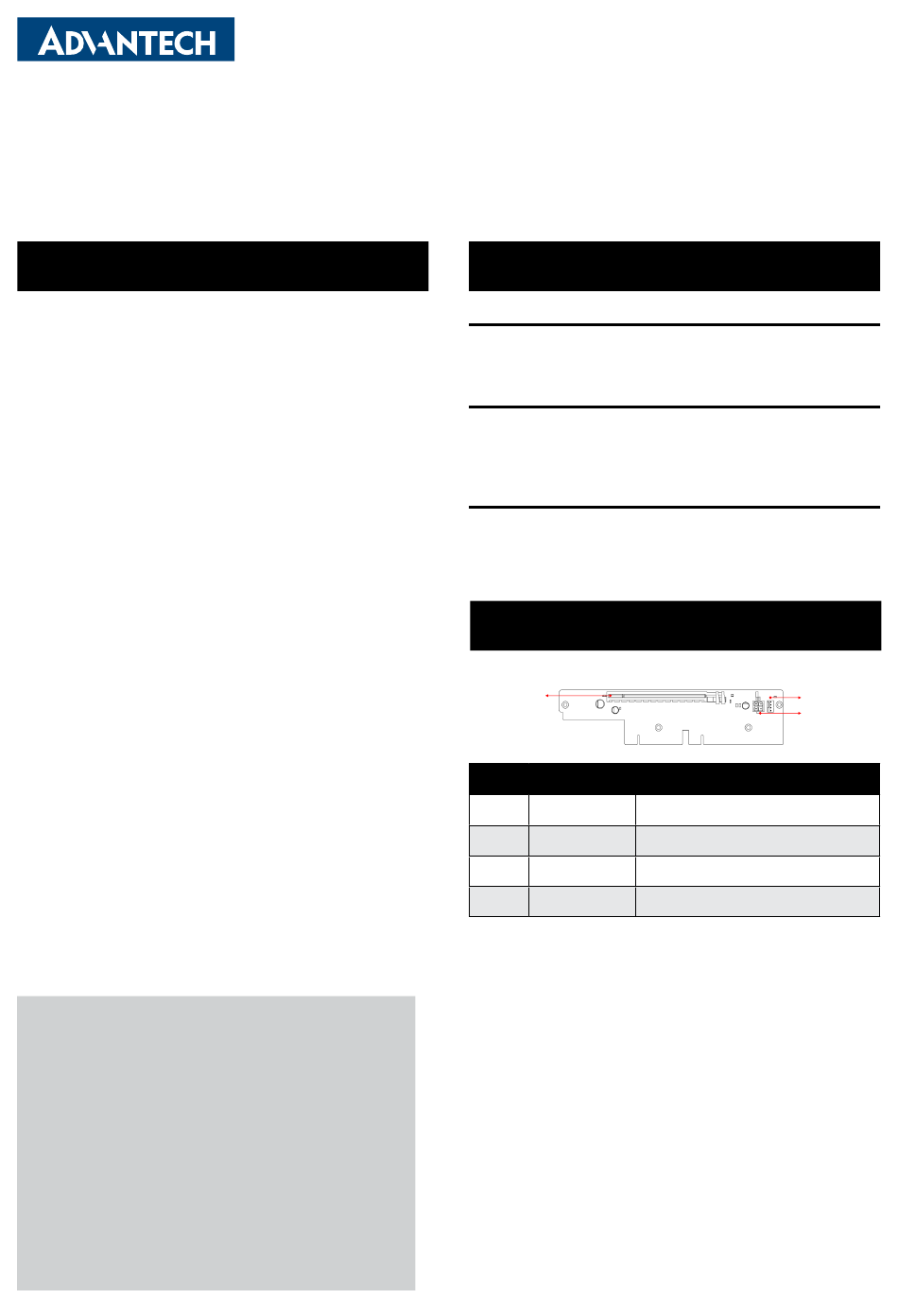

MIC-75M10
PCIE Expansion Module for MIC-7 Series Embedded
System
Startup Manual
Packing List
Before you begin installing your card, please make sure that
the following items have been shipped:
1. MIC-75M10 i-Module x1
2. MIC-75M10 Startup Manual x1
3. Mounting bracket (I-type) x1
4. Mounting bracket (C-Type) x1
If any of these items are missing or damaged, please
tact your distributor or sales representative immediately.
Note:
Acrobat Reader is required to view any PDF file.
Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://support.advantech.com.tw/support/
default.aspx
This manual is for the MIC-75M10 Rev. A1.
Part No. 20415M1000
Printed in China
P/N: MIC-75M10-00A1/
MIC-75M10-00A2
P/N: 20415M1000
P/N: 1960070543T00A
P/N: 1960070545N006
con-
1st Edition
April 2022
Specifications
PCIe Slots
• One PCIe x16 socket
Note 1: PCIe x16 power consumes 75W.
Environment
• Operating Temperature: -20 ~ 60° C with 0.7 m/sec air flow
• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity: 95% @ 40° C (non-condensing)
Mechanical
• i-Module Dimensions (H x W x D): 24 x 192 x 230 mm
• With MIC-7 series (H x W x D): 97 x 192 x 230 mm
Note: Width will be increased by 4mm with MIC-77xx.
Jumpers and Connectors
The table below lists the functions of each of the connectors.
PCIE x16 Socket
Connectors
No.
Item
Function
1
PPCIE1
PCIEx16 Socket
2
DC12VOUT1 4 Pin Power Connector (12V)
3
SYSFAN1
4 Pin FAN connector
MIC-75M10 Startup Manual 1
FAN Conn
12V Extra Power
