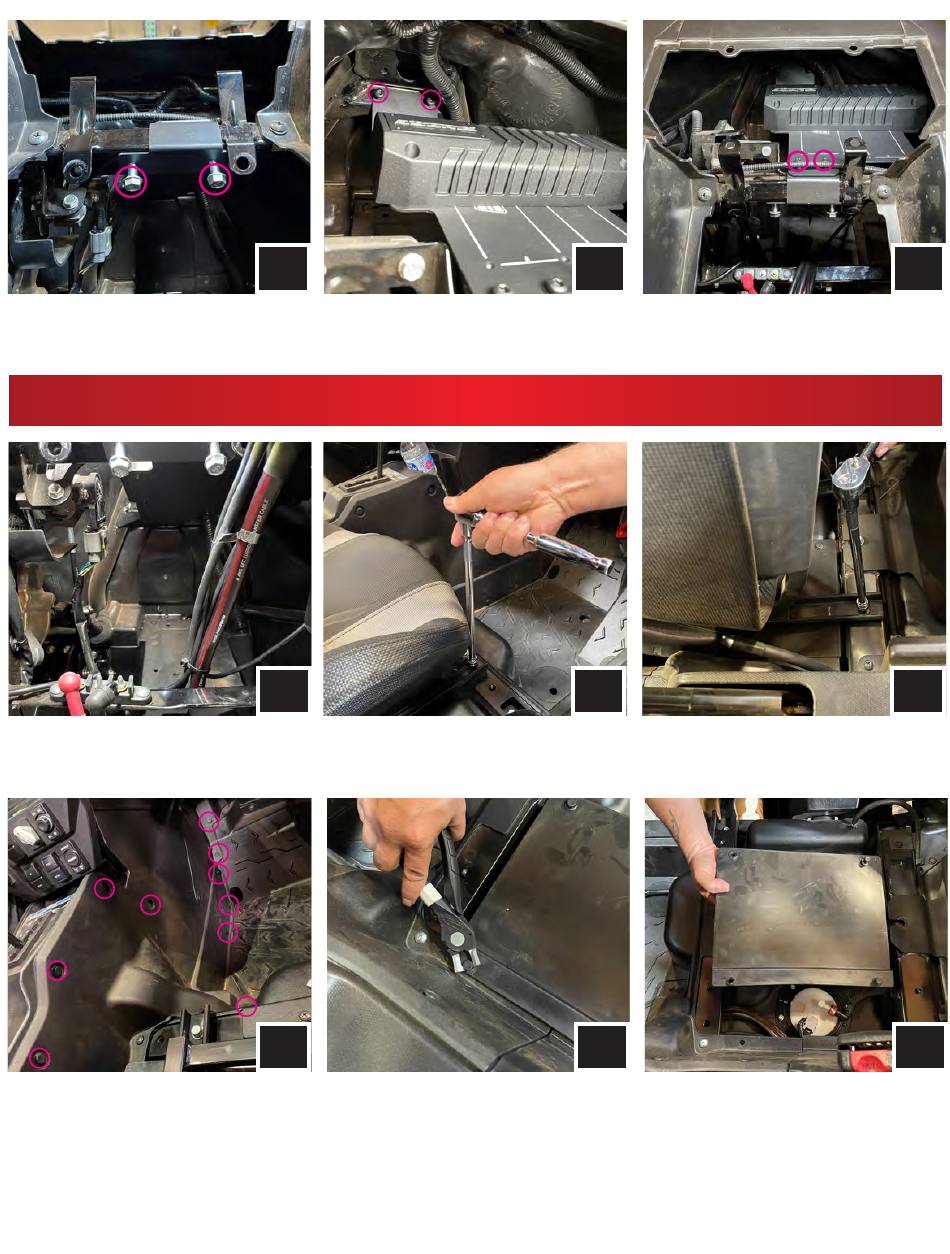

A. Start by mounting the smaller bracket onto the center bar using the (2) bolts. Hand tighten about half way. B. Place large plate with amp attached and
screw in the rest of the screws. Go back and tighten bolts on smaller plate.
RUNNING AMP POWER CABLE AND SPEAKER WIRE
A. Run Power and Ground for Phase EQ from the amp to the center console. B. Remove the seat, use a 13mm socket and wrench to remove front (2) bolt and
nut, and use a 18mm socket to remove (2) rear nuts and seat belt nut ( repeat on other seat)
C. Remove panel clips from passenger side center cosole and pull panel out ebough to access the insed for running cables. D. Using clip removal tool, unclip
the (4) clips and remove fuel pump cover.
