SSV WORKS, 201 N. Rice Ave Unit A, Oxnard, CA 93030
www.SSVworks.com | Phone: 818-991-1778 | Fax: 866-293-6751
WARRANTY INFORMATION:
All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or workmanship.
All SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship.
All Kicker Speakers are covered by a limited 1 year warranty against defects in material or workmanship. All
Kicker Amplifiers are covered by a limited 2 year warranty against defects in material or workmanship. Labor for
replacement of defective components is not covered. Contact SSV Works for further warranty information.
TOOLS NEEDED FOR
INSTALLATION

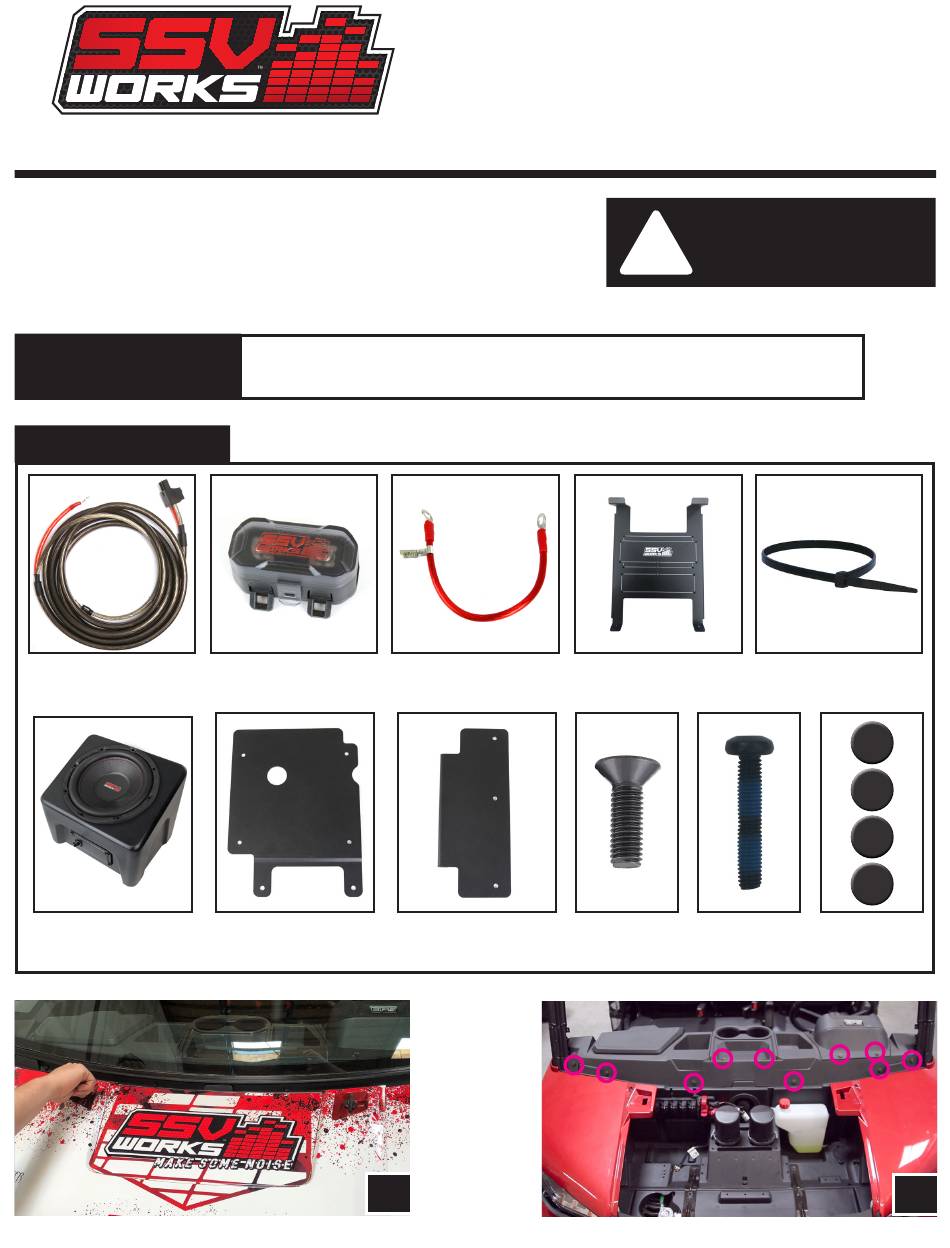

PARTS LIST IMAGES
1. Amp Power Wire x1
6. RG4-US10 Enclosure
A. Remove hood by turning locking pins and lifting up.
- T-40/30/25 Torx Driver
- Phillips Screwdriver
- 4mm Allen Key
2. Fuse Holder with 40A
3. Battery Terminal Cable
Fuse
7. Enclosure Bracket A
A
- Drill
- 3/32" Bit
- 9/16" Bit
- Panel Removal Tool
8. Enclosure Bracket B
9. M6 Flathead 4mm
B. Use a panel tool to extract push pins circled in pink.
RG4-1KRC
Polaris Ranger with Ride Command
Underseat 10" Subwoofer
Please read and understand these
!
instructions completely before
installation to avoid possible injury, or
damage to the accessory or vehicle.
- 13/64" Bit
4. Mounting Plate with
Amp
10. M6 Allen
Hex Screws x4
Torx Screws x2
- Uni-Bit
5. Zip Ties
11. Foam Circles
x4
B
Advertisement
Related Manuals for SSV Works KX-F65
Summary of Contents for SSV Works KX-F65
- Page 1 All SSV Works enclosures are covered by a limited lifetime warranty against defects in material or workmanship. instructions completely before All SSV Works Electronics are covered by a limited 1 year warranty against defects in material or workmanship. installation to avoid possible injury, or All Kicker Speakers are covered by a limited 1 year warranty against defects in material or workmanship.
- Page 2 D. Lift and disconnect gauge cluster for removal. C. With push pins extracted, lift to remove the cup holder. E. Unscrew (4) torx screws located in upper glove box and F. Extract push pins that are now exposed from removing the remove box.
- Page 3 K. Extract push pins located beneath 12v sockets. L. Remove front dash panel and disconnect the 12v socket harness. M. Unscrew (2) torx screws that were behind the front dash panel. N. Unscrew the two (2) torx screws connecting the dash bracket at the rear of the dash cavity.
- Page 4 S. With the cables now though the firewall, route cables down the front of the machine to be pulled though into the cabin of the machine. NOTE: A 1” hole may need to be drilled to run the cables down the front of the chassis. T.
- Page 5 X. Align bracket A’s holes with the dimples/recess’ circled in pink on the Y. Located on the floorboard to the right of the battery bottom of the enclosure. Using four (4) flathead 4mm screws, mount compartment, remove the (3) T40 torx screws circled in pink. the A bracket to the bottom of the enclosure.
- Page 6 40A fuse, screw the 2 screws back in and reattach the fuse holder top. column away from the drive shaft. THIS CONCLUDES THE INSTALLATION PROCESS. REPLACE THE FACTORY PANELS AND SEATS. QUESTIONS? PLEASE CONTACT SSV WORKS AT 818-991-1778 OR EMAIL SUPPORT@SSVWORKS.COM © 2018 SSV Works, Oxnard, CA 93030 RG4-1KRC Rev. A 12-24-18...
