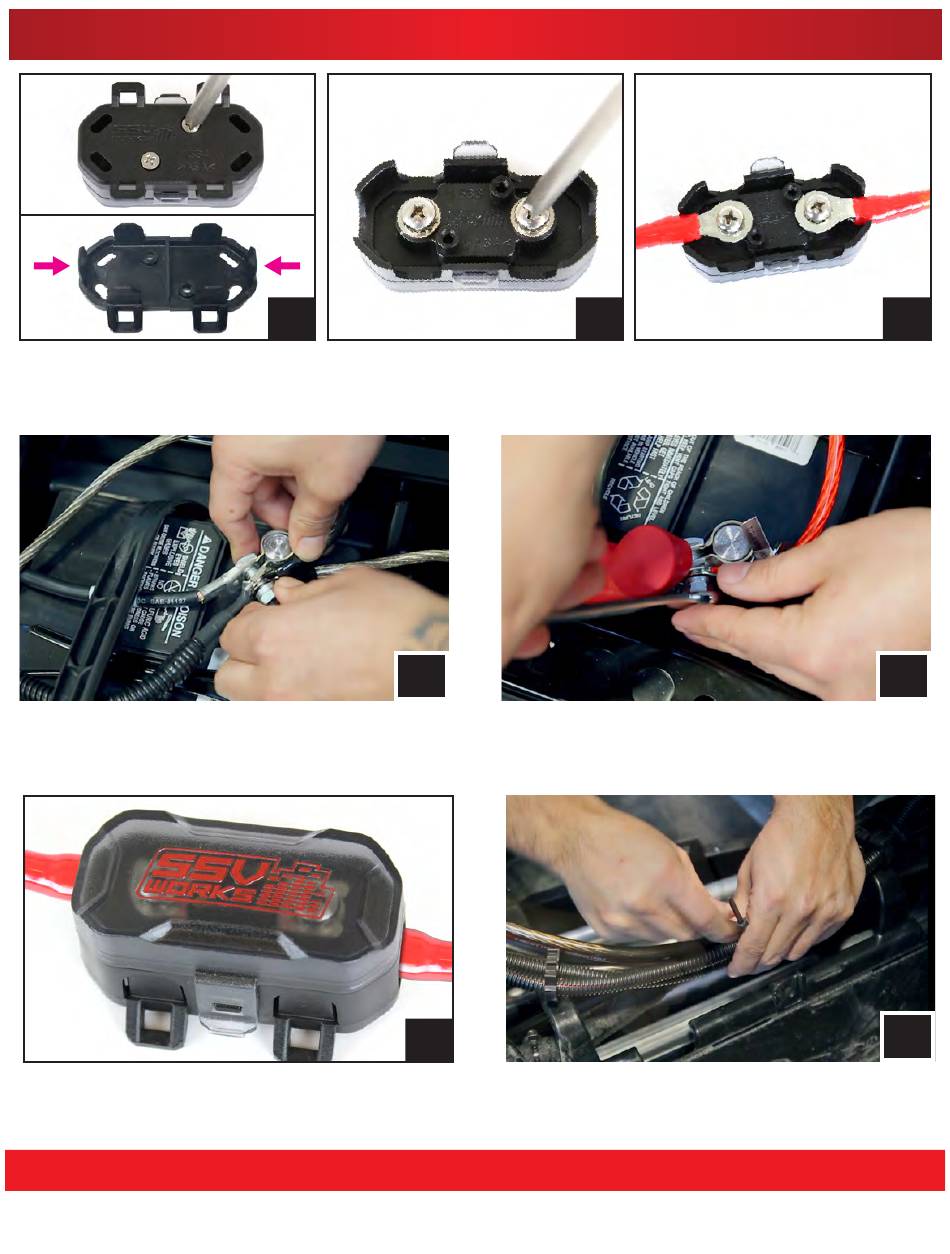

CONNECTING POWER & GROUND CABLE TO BATTERY
Break
off tab
A1. Remove the bottom cover of the fuse holder
by extracting the 2 screws. Break off the right
and left side tabs on the bottom cover.
B. Unscrew the factory nut on the negative battery terminal. Install
the 2 ground cables to the screw on the ground battery terminal.
Re-install the factory nut.
D. Remove the top of the fuse holder and extract the 2 screws. Insert the
40A fuse, screw the 2 screws back in and reattach the fuse holder top.
14
Break
off tab
A1
A2. Extract both fuse holder screws.
B
D
THIS CONCLUDES THE INSTALLATION PROCESS.
