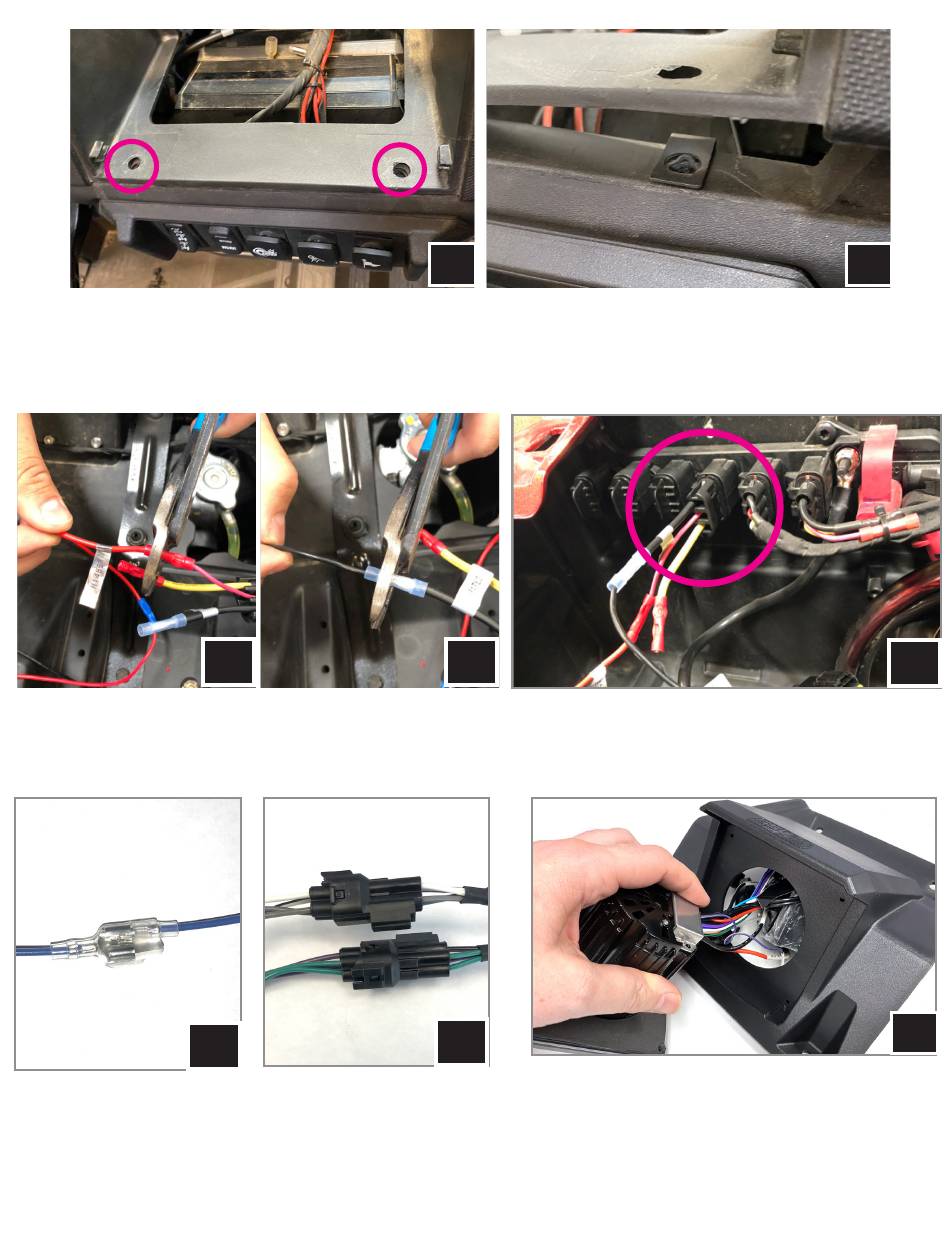

C. Using a panel removal tool gently lift the existing plastic panel on the center dash support. Install the two (2) supplied U-Nut clips
by sliding them onto the bottom of the center dash panel support and align holes as needed.
D. Cut and strip power and ground wires. Crimp the power and ground to the
provided B-H1752 harness. Red for ACC and yellow for constant power.
F. Connect the blue "AMP TURN-ON"
from the MR1 power harness, to
the blue, "AMP TURN-ON" on the
B-H2605 amp harness.
D
F
G. Connect the front (white/gray)
and rear (green/purple) outputs
from the MR1 power harness to
the inputs of the 8005 amp.
C
D
E. Once crimped, remove port guard and connect to the busbar.
G
H. Slide on the MR1 trim ring from the back of the MR1. Connect
the MR1 and all related accessories. Place the MR1 into the
dash mount. When placing the MR1 into the dash mount, feed
slack wiring back into the dash cavity cut out. This will allow for
proper fitment of the MR1.
