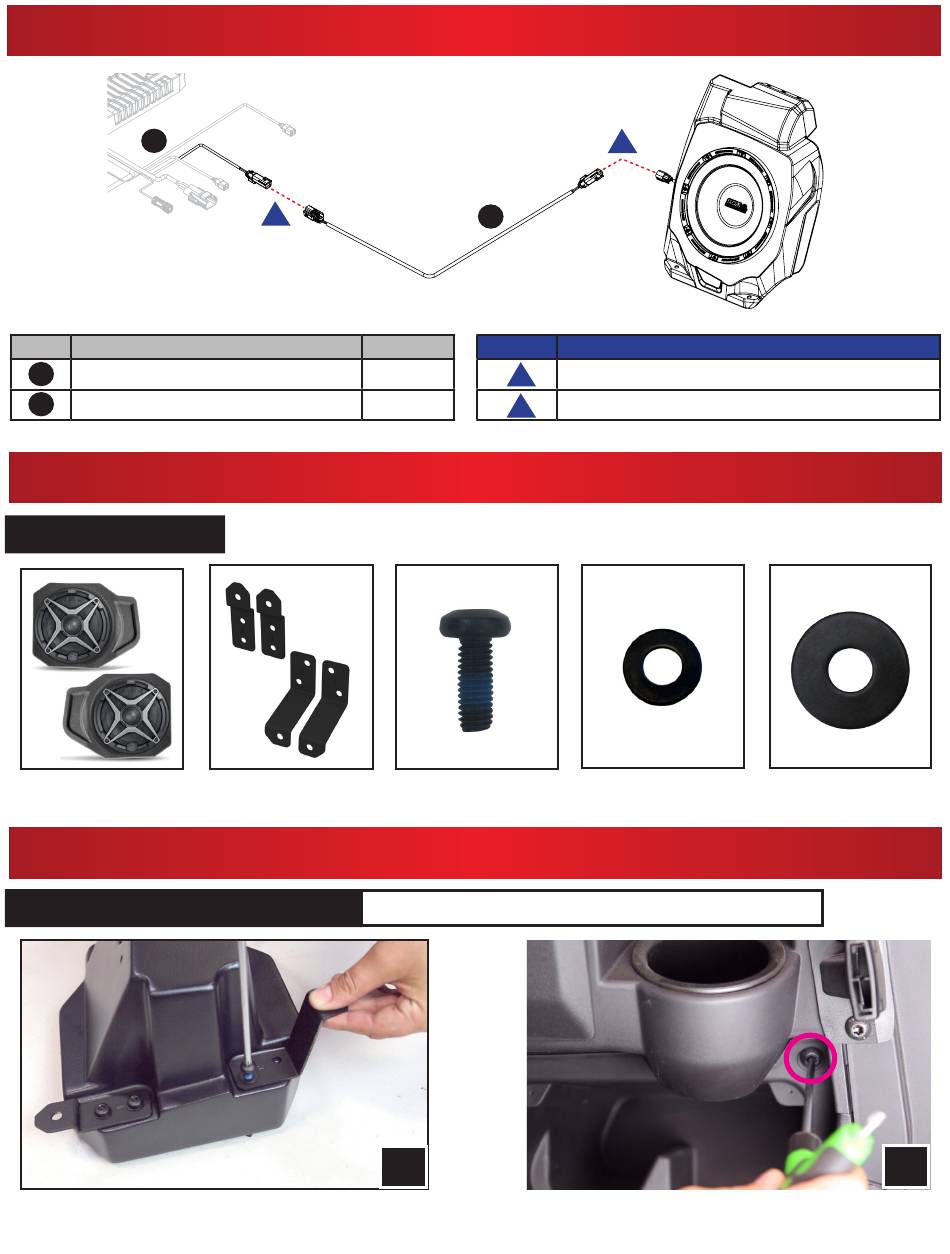

SUBWOOFER WIRING DIAGRAM
1
Description
1
800.5 Amplifier 32-Pin Universal Harness
2
2-Pin Audio, Sub Extension Harness
FRONT KICK PODS PARTS LIST
PARTS LIST IMAGES
1. RG4-F65 Enclosures
(1 pair)
FRONT KICK PODS ASSEMBLY
TOOLS NEEDED FOR INSTALLATION
A. Using the supplied M6 screws and small washers, install the
brackets to kick pods.
A
Part #
B-H2605
B-H2702
2. Enclosure Brackets x 4
2
Detail
Connect Subwoofer Output from B-H2605 to B-H2702
A
Connect B-H2702 directly to the Subwoofer
B
3. M6 x 16mm Screws
x 10
- T-30 Torx Driver - Panel Removal Tool
A
B. Remove factory T40 torx screws located from the front of the
dash next to the cup holders.
12
B
Description
4. M6 Washers x 8 (small)
- Phillips Screwdriver
4. M6 Washers x 2 (large)
B
