SSV Works RG4-Q3A1 Manual page 10

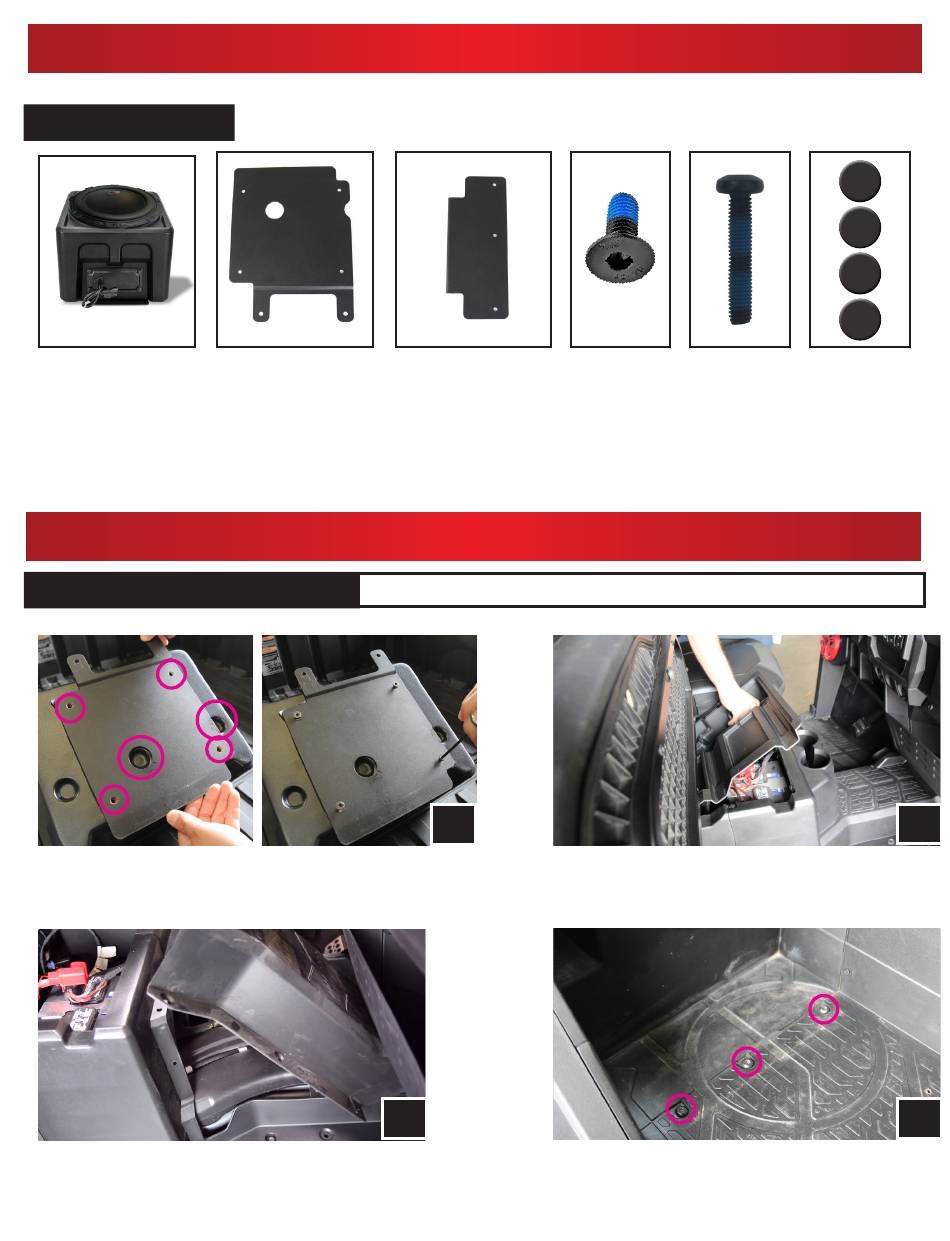

SUBWOOFER ENCLOSURE PARTS LIST
PARTS LIST IMAGES
1. RG4-US10 Enclosures
NOTE: To avoid subwoofer damage, do not face the subwoofer down or rest the enclosure on the subwoofer when
installing bracket to the bottom of the enclosure.
SUBWOOFER ENCLOSURE INSTALLATION
TOOLS NEEDED FOR INSTALLATION
A. Align bracket A's holes with the dimples/recess' circled in pink on the
bottom of the enclosure. Using four (4) flathead 4mm screws, mount
the A bracket to the bottom of the enclosure. After the bracket is secure,
cover the screw heads with the (4) foam circles.
C. Using a panel removal tool, extract the (8) push pins to
remove the center driveline center column cover.
2. Enclosure Bracket A 2. Enclosure Bracket B
- T-30 & T-40 Torx Driver - 4mm Allen Key
C
4. M6 Flathead 4mm
Hex Screws x4
A
B. Flip up passenger seat and remove center tray to access
battery. Disconnect the negative battery cable from the battery.
D. Located on the floorboard to the right of the battery
compartment, remove the (3) T40 torx screws circled in pink.
10
5. M6 Allen Torx
Screws x2
- Drill - 13/64" Drill Bit
- Panel Removal Tool
5. Foam Circles
x4
B
D
