Mounting the panel version: UL-certified

The panel version controller is mounted as part of an electrical panel.

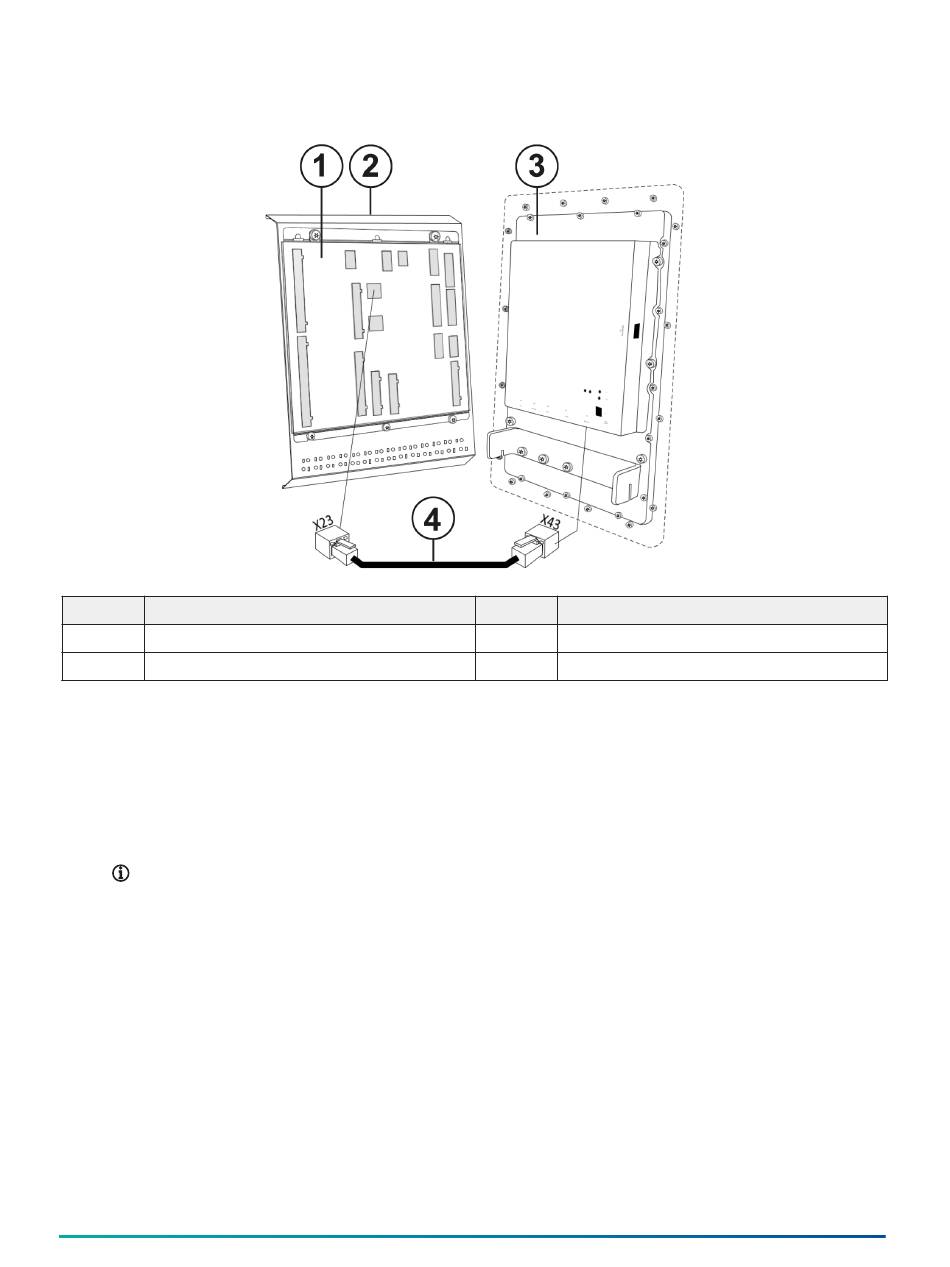

Figure 4: Panel version
Callout Component
1 I/O board
2 I/O board mounting plate
1. Use the pre-drilled holes and four screws to install the I/O board mounting plate on to the
backplate of the electrical panel.
2. Use the six threaded standoff nuts to install the I/O board on the I/O board mounting plate.
3. Connect the touchscreen display and the I/O board through a LAN cable.
4. Use 16 screws to mount the touchscreen display on to the electrical panel door, as shown in
the following figure:
Note: Maximum tightening torque is 0.325 Nm
UniSAB 4 Safety, Installation, and Operating Guide
Callout Component
3 Touchscreen display
4 LAN cable
