Mounting instructions

The UniSAB 4 controller is available in two versions:
• Cabinet version, used as a standalone controller that mounts on to the unit frame.
Panel version, which mounts in an electrical panel.
•

Placement of the controller

Choose a location that has free space in front of, and on both sides of the UniSAB 4 controller, to
operate in a freely and safe manner.

Mounting the cabinet version: not UL-certified

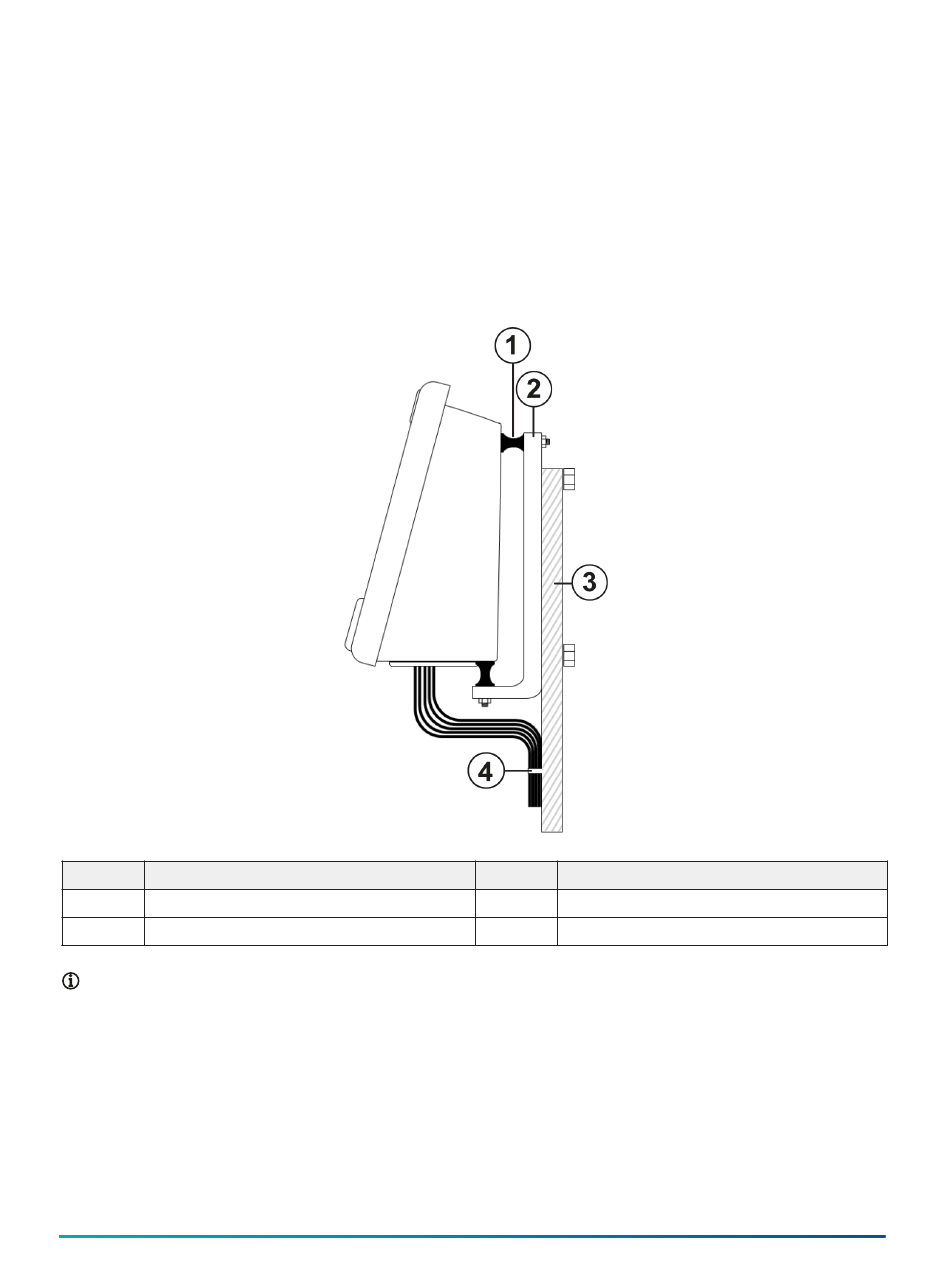

Figure 2: Cabinet version of the UniSAB 4
Callout Component
1 Vibration dampers
2 Mounting plate
Note: You must mount the cabinet version using the supplied mounting plate and vibration
dampers, as shown in
1. Use the pre-drilled holes in the top and bottom corners to mount the enclosure onto the
mounting plate.
2. Install cables with the appropriate cable fasteners, in order to secure them from unwanted
strain and detachment risks. Position the cable fasteners at a height that prevents the cables
from bending beyond 90 degrees.
3. You can move the front cover of the cabinet to rest on the top of the cabinet, to gain access
for maintenance and installation, as shown in the following figure:
UniSAB 4 Safety, Installation, and Operating Guide
Figure 2.
Callout Component
3 Machinery frame
4 Cable fasteners
