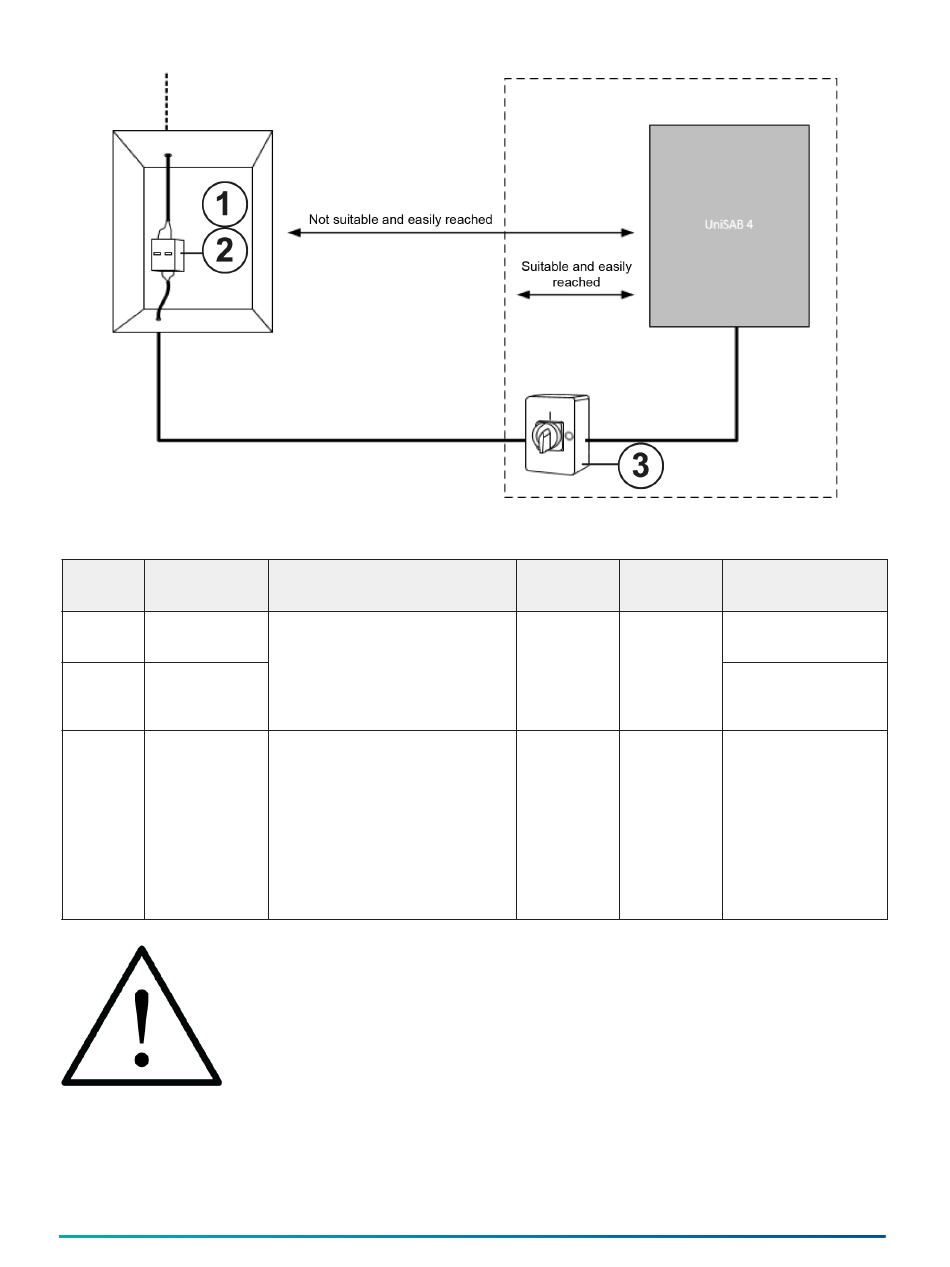

Figure 18: Power supply installation Circuit breaker and service switch
Table 7: Power supply overview
Callout Component
1 Circuit
breaker
2 Fuse
3 Service
switch
All connectors must be securely attached to the terminals of the UniSAB 4 controller before
switching on the power. See
The safety of any system, incorporating the UniSAB 4 controller, is the responsibility of the assembler of
the system.
UniSAB 4 Safety, Installation, and Operating Guide
Requirements
Clearly marked as the
primary disconnecting
device for the specific
controller. IEC 60947-1 and
60947-3 certified
Clearly marked as
the Service switch/
disconnecting device for the
specific controller. ON and
OFF markings must be in
accordance with IEC 61010-1
Table 1. IEC 60947-1 and
60947-3 certified
Table 5.
Voltage Current
rating rating
100 VAC to Max. 10 A*
240 VAC
>240 VAC Min. 10A
Permitted
characteristics
Type C-curve
gG/gL
–
23
