KEYBUS SE

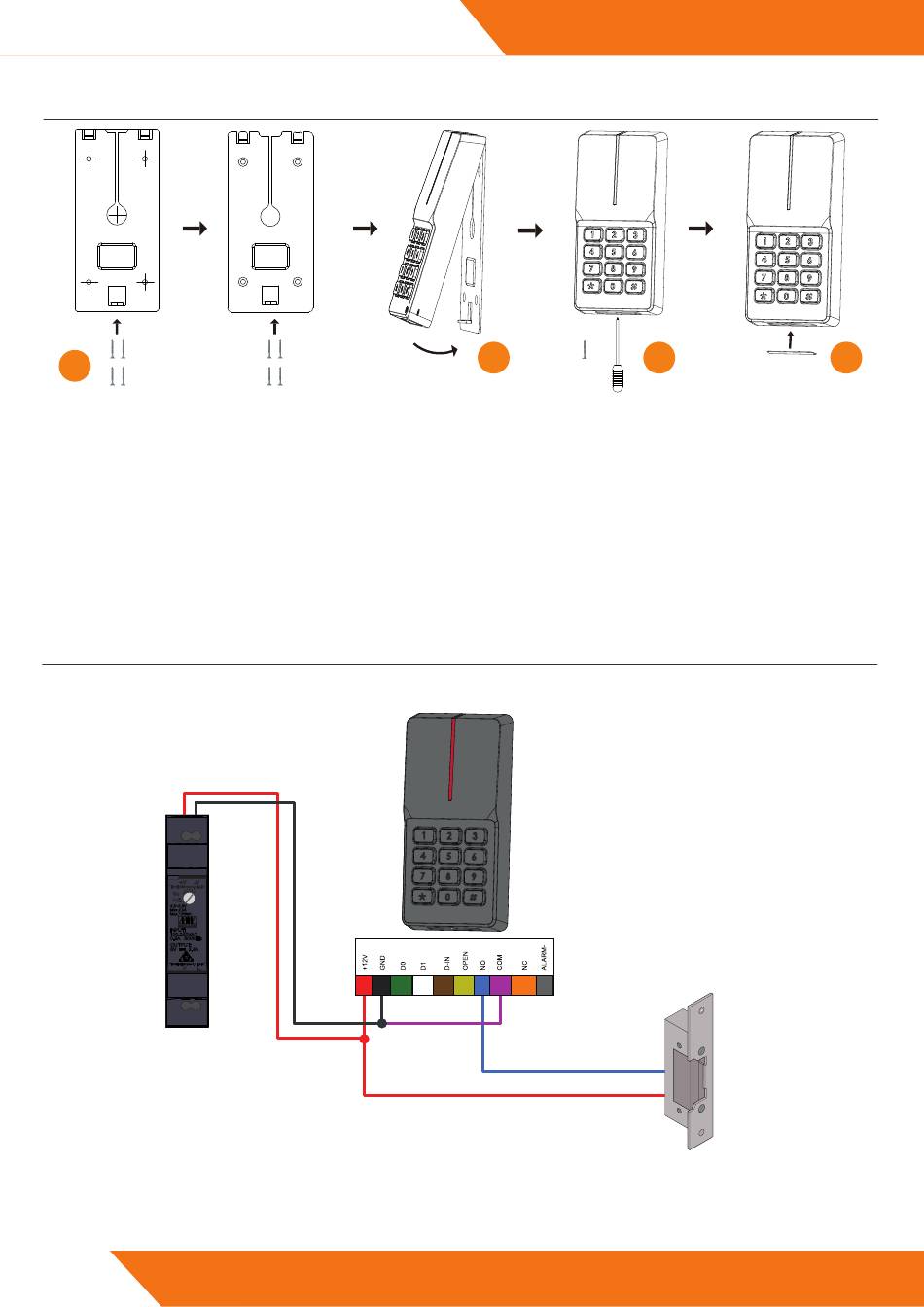

4.INSTALLATION

1
1) Stick the label on the wall, drill a 14mm diameter hole for the wiring outlet and 4 fixing holes of 6mm diameter, then insert 4 dowels
into the fixing holes.
2)Remove the anti-drop screw on the bottom of the product with a screwdriver, remove the mounting rail from the reader. Place the
mounting rail to fit the previously drilled holes and fix it to the wall with 4 self-tapping screws.
3) Connect the reader as shown in the wiring diagrams in the following sections of this manual. Make sure that the connection is correct so
as not to make a bad connection or short-circuit that could damage the reader. Briefly turn on the reader. When the reader is powered on, it
should beep and the LED should be on steady red. If this is not the case, remove the power supply immediately, and recheck the wiring. Once
the reader is correctly connected, attach the front panel to the mounting rail and secure it with the anti-drop screw.
4)Stick the decorative piece in the position of the anti-drop screw.

5.WIRING DIAGRAMS

5.1.STANDALONE

1 2
3 4
12Vdc/24Vdc
By default, the reader is set up to operate in standalone mode.
4
2
KEYBUS SE
RED BLACK GREEN WHITE
BROWN YELLOW BLUE PUERPLE ORANGE
3
GREY
12Vdc lock release
STANDALONE
4
