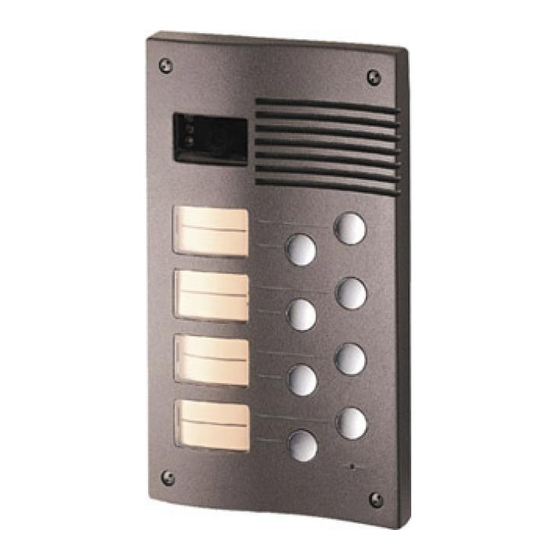

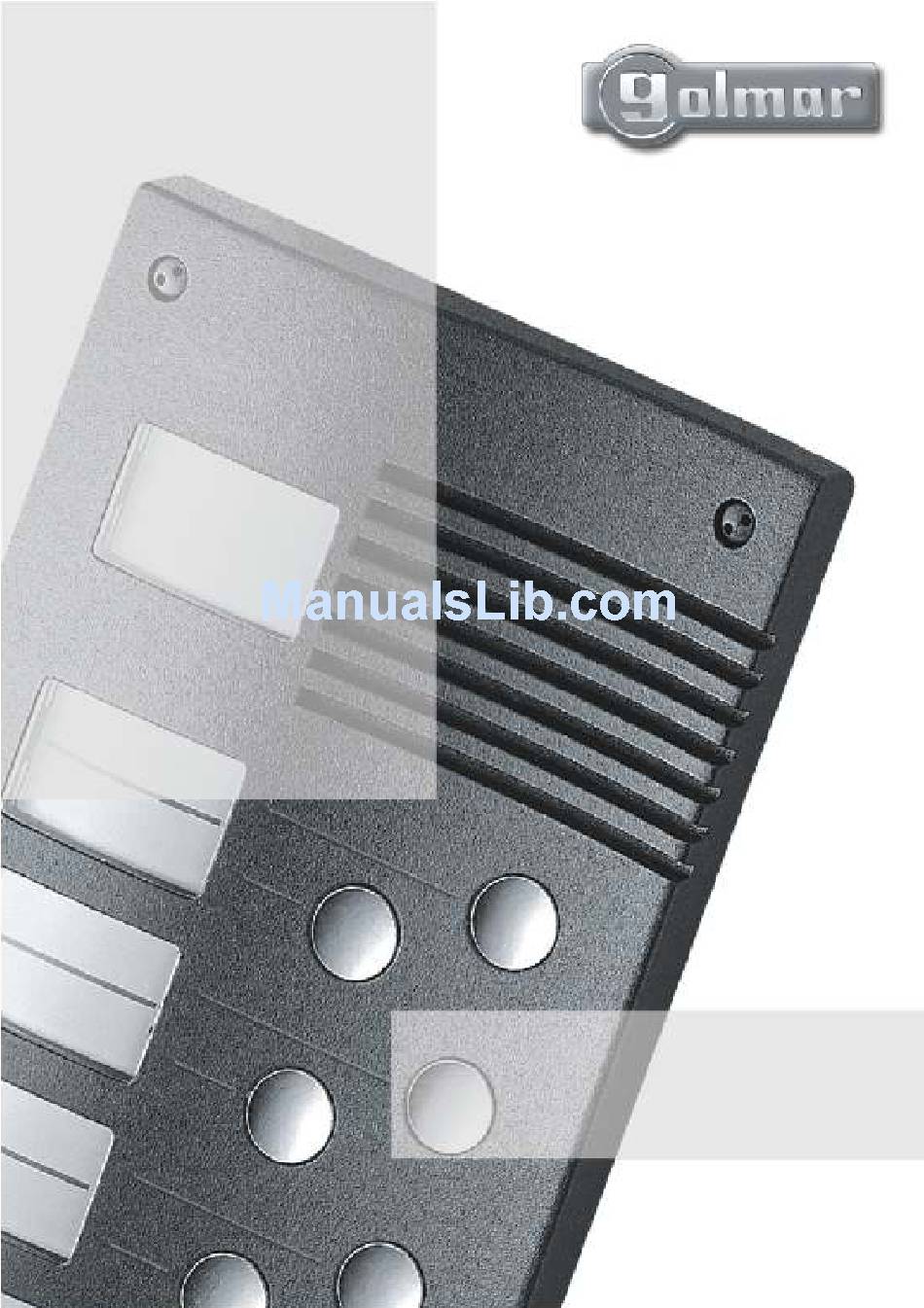

- Page 1 T200EN rev.0204 Audio door entry system Kits 4+'n' wires installation 295 Series Instructions manual...
- Page 2 DOOR PANEL INSTALLATION First of all we would like to thank and congratulate you for the purchase of this product manufactured by Golmar. mbedding box positioning. The commitment to reach the satisfaction of our customers is stated through the ISO-9001 certification and for the manufacturing of products like this one.
- Page 3 DOOR PANEL INSTALLATION DOOR PANEL INSTALLATION lace the embedding box. lace the nameplate labels. Pass the wiring through the hole made in the bottom part of the embedding box. Level and flush the embedding box. Once the embedding box is placed, remove the protective labels from the attaching door panel holes.
- Page 4 POWER SUPPLY INSTALLATION TELEPHONE INSTALLATION nstalling the TF-104 transformer. escription of the T-900 telephone. The transformer must be installed in a dry and Telephone handset. protected place. It's recommended to protect 3,5 x 25 Speaker grille. the transformer by using a thermo-magnetic DIN-7971 Microphone hole.
- Page 5 INSTALLATION DIAGRAM INSTALLATION DIAGRAM ush buttons wiring. ne access door. IMPORTANT NOTICE: the enclosed pictures draw the correspondence between each push button and its corresponding terminal on the CN1 connector. Terminals without arrow are not connected. PE-295/3 PE-295/6 ~ CA-295/6 ind.
- Page 6 OPTIONAL CONNECTIONS arallel telephones installation. The maximum number of telephones placed in the same apartment is three. For each telephone placed in parallel the section corresponding to the call wire must be doubled. ind. xternal lock release activation. The lock release can be activated at any moment by using an external push button, that must be connected between ~1 ~2 '–' y 'P' terminals of the main module.
- Page 7 Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
