golmar KEYBUS SE Installation Manual page 10

KEYBUS SE

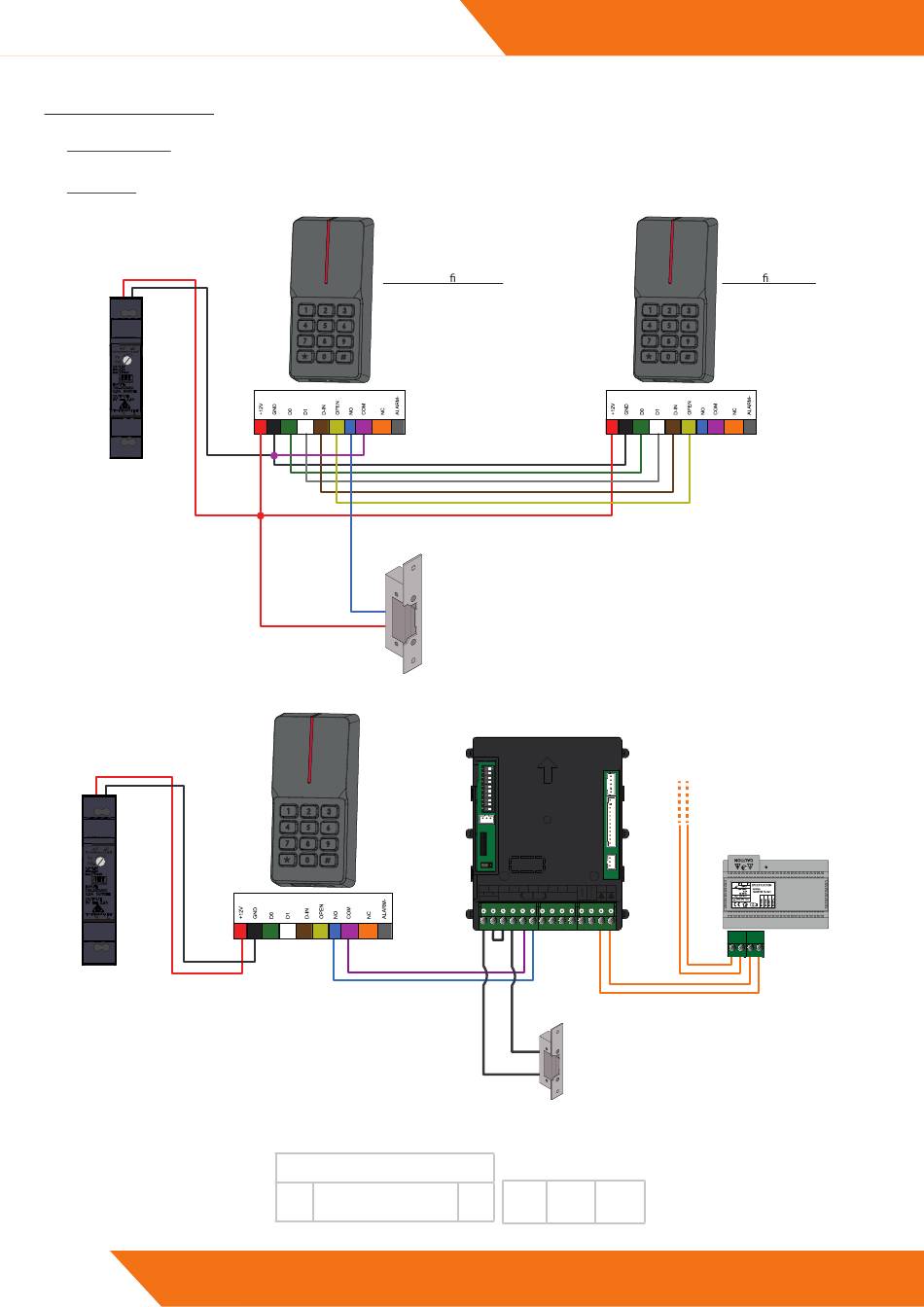

9.ADDITIONAL DIAGRAMS
9.1.ANTI-PASSBACK MODE
The entrance reader must be configured as Anti-Passback: *888888# (master code) + 715#. It will also require to be in "card read only"
mode: *888888# (master code) + 30#.
The exit reader must be set to
1 2
3 4
12Vdc/24Vdc
9.2..STANDALONE MODE CONNECTED TO INTERCOM
1 2
3 4
12Vdc/24Vdc
NOTE: The intercom AP (door opener) does not activate the door opener until the KeyBus SE reader pulse is completed. To avoid opening
delays, set the minimum pulse on the reader (1 second):
10
Reader mode: *888888# (master code) + 710#.
Entrance
Entrance con guration:
Anti-passback mode (715#)
Cards only (30#)
RED BLACK GREEN WHITE
BROWN YELLOW BLUE PUERPLE ORANGE GREY
12Vdc lock release
KEYBUS SE
RED BLACK GREEN WHITE BROWN YELLOW BLUE PUERPLE ORANGE GREY
Enter administrator mode
*
MASTER CODE
(By default: 888888)
RED
RST
GND
CLK
SDA
3V
1 2
_
+
C1 NA1 AP+ AP- AP+ C2 NA2 NC2 BUS BUS
Relé 1 Relé 2
12Vdc
- C1
AP+
AP-
+ NA1
12Vdc lock release
4 1 #
#
STANDALONE
Exit
Exit con guration:
Reading mode (710#)
BLACK GREEN WHITE BROWN YELLOW BLUE PUERPLE ORANGE GREY
BUS(M) BUS(PL)
Aout
