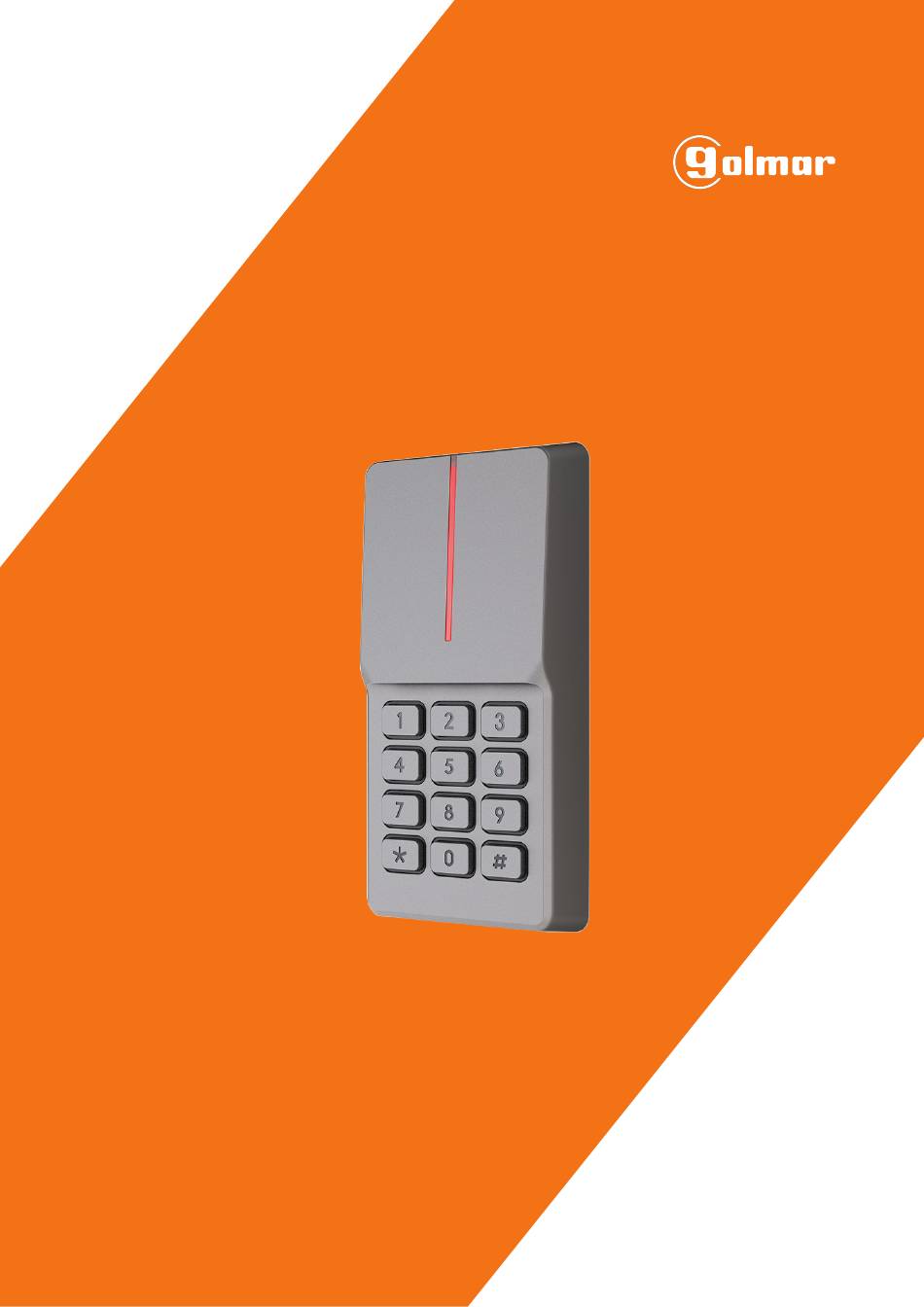

- Page 1 KEYBUS SE INSTALLATION MANUAL IM_ENG_REV0124_KEYBUS_SE...
-
Page 2: Table Of Contents
KEYBUS SE STANDALONE 1.TABLE OF CONTENTS ..............................2 1.Table of contents ..............................3 2.Introduction .............................3 3.Technical specifications ................................4 4.Installation ...............................4 5.Wiring diagrams ................................5.1.Standalone ..................................5.2.Slave .............................5 6.Access to programming ..............................5 7.Programming ..............................7.1.Add codes and cards ................................. 7.1.1.Add code ................................7.1.2.Add card ............................ -
Page 3: Introduction

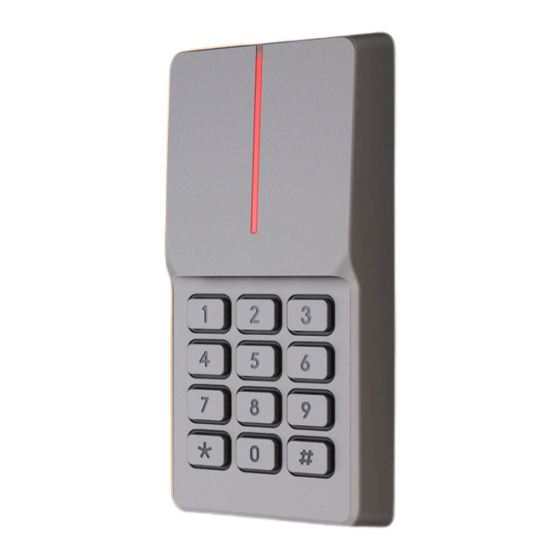

9.6.Exit pushbutton 2.INTRODUCTION Installation manual for the KeyBus SE reader, a new version of the KeyBus reader, which has a renewed appearance and as a great nov- elty the possibility of reading cards in two frequencies 125Khz and 13.56MHz. 3.TECHNICAL SPECIFICATIONS Material Zinc alloy structure, all-metal keyboard. -
Page 4: Installation
KEYBUS SE STANDALONE 4.INSTALLATION 1) Stick the label on the wall, drill a 14mm diameter hole for the wiring outlet and 4 fixing holes of 6mm diameter, then insert 4 dowels into the fixing holes. 2)Remove the anti-drop screw on the bottom of the product with a screwdriver, remove the mounting rail from the reader. Place the mounting rail to fit the previously drilled holes and fix it to the wall with 4 self-tapping screws. -
Page 5: Slave
STANDALONE KEYBUS SE 5.2.SLAVE KEYBUS SE BLACK GREEN BLANCO BROWN YELLOW BLUE PURPLE ORANGE GREY CONNECTION TO iP-OPENER WIEGAND ACCESS CONTROLLER The reader must be configured as a Wiegand slave: *888888# (master code) + 710#. 6.ACCESS TO PROGRAMMING Perform the following sequence to enter programming:... -
Page 6: Add Card
KEYBUS SE STANDALONE 7.1.2.ADD CARD Enter administrator mode MASTER CODE SWIPE THE CARD (By default: 888888) BY THE READER To exit programming press “*” twice. In the case it is desired that the cards have a user number assigned to them, follow the table below. If no user number is assigned, the cards are assigned in sequential order from 1 to 2000. -
Page 7: Reading Modes
STANDALONE KEYBUS SE 7.4.READING MODES 7.4.1.CARD READING ONLY In this operating mode, reading by numerical code (PIN) is not possible. Enter administrator mode MASTER CODE (By default: 888888) 7.4.2.CARD OR CODE READING (default value) In this operating mode both card and numerical code opening are enabled. -
Page 8: Status Leds
KEYBUS SE STANDALONE 7.8.STATUS LEDS 7.8.1.DEACTIVATE Deactivates the stand by status led. The status LEDs when validating, code, card or accessing programming will still be displayed. Enter administrator mode MASTER CODE (By default: 888888) 7.8.2.ACTIVATE (default value) Enter administrator mode... - Page 9 STANDALONE KEYBUS SE 7.12.SECURITY MODES 7.12.1.SAFE MODE OFF (default value) In case of consecutive wrong codes being introduced, no alarm is triggered. Enter administrator mode MASTER CODE (By default: 888888) 7.12.2.SAFE MODE WITH LOCK ACTIVATED If 10 false codes/cards are introduced within 10 minutes, the terminal will be blocked. It will not take any readings.
- Page 10 12Vdc/24Vdc 12Vdc lock release NOTE: The intercom AP (door opener) does not activate the door opener until the KeyBus SE reader pulse is completed. To avoid opening delays, set the minimum pulse on the reader (1 second): Enter administrator mode...
- Page 11 STANDALONE KEYBUS SE 9.3.SLAVE MODE WITH IP OPENER WIEGAND CONTROLLER The reader must be set as a Wiegand slave: *888888# (master code) + 710#. KEYBUS SE Door 1 Door 2 Door 1 BLACK GREEN WHITE BROWN YELLOW BLUE PUERPLE ORANGE...
- Page 12 *It is recommended to use a protection diode in parallel to the lock release to avoid possible backflows that could damage the reader. 9.5.TWO READERS AND A SINGLE AC DOOR LOCK RELEASE KEYBUS SE nº1 KEYBUS SE nº2 BLACK...
- Page 13 STANDALONE KEYBUS SE 9.6. EXIT PUSHBUTTON KEYBUS SE BLACK GREEN WHITE BROWN YELLOW BLUE PUERPLE ORANGE GREY 12Vdc/24Vdc Exit pushbutton 12Vdc lock release www.golmar.es...
- Page 14 Sistemas de comunicación S.A. C/ Silici 13. Poligon Industrial Famadas 08940 – Cornellà del llobregat – Spain golmar@golmar.es Tel: 93 480 06 96 www.golmar.es Golmar deserves the right for any modification without prior notice.
