golmar KEYBUS SE Installation Manual page 12

KEYBUS SE

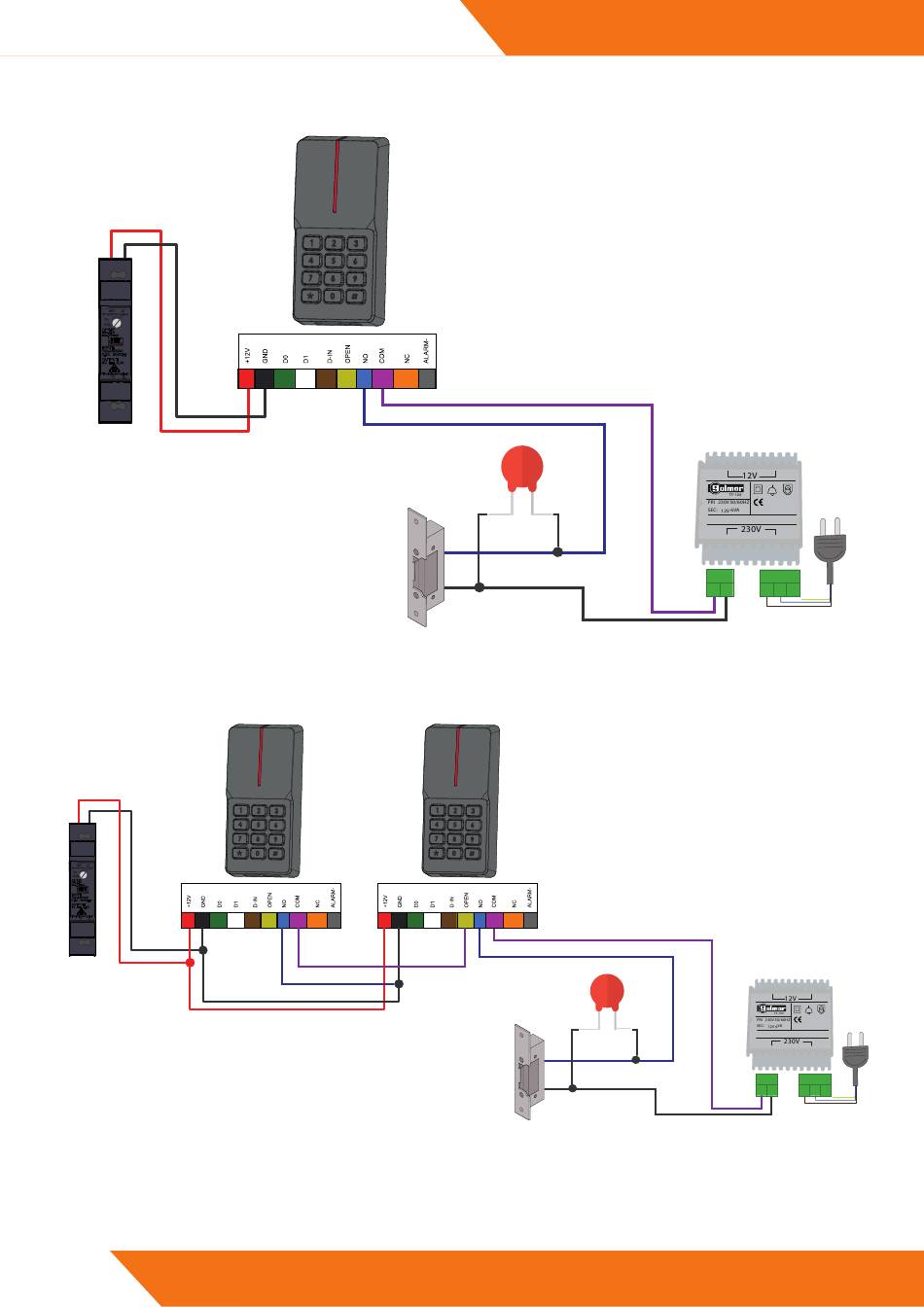

9.4. READER WITH AC DOOR LOCK RELEASE
1 2
3 4
HRF-12/1,25A
*It is recommended to use a protection diode in parallel to the lock release to avoid possible backflows that could damage the reader.
9.5.TWO READERS AND A SINGLE AC DOOR LOCK RELEASE
1 2
RED BLACK GREEN
3 4
12Vdc/24Vdc
12
KEYBUS SE
RED BLACK GREEN WHITE BROWN YELLOW BLUE PUERPLE ORANGE
12Vac
lock release
KEYBUS SE nº1
WHITE BROWN BLUE PUERPLE ORANGE GREY RED BLACK
YELLOW
*It is recommended to use a protection diode in parallel to the lock release to avoid possible backflows that could damage the reader.
GREY
*
KEYBUS SE nº2
GREEN WHITE BROWN BLUE PUERPLE ORANGE GREY
YELLOW
*
12Vac
lock release
STANDALONE
TF-104
SEC PRI
~ ~
F N T
TF-104
SEC PRI
~ ~ F N T
