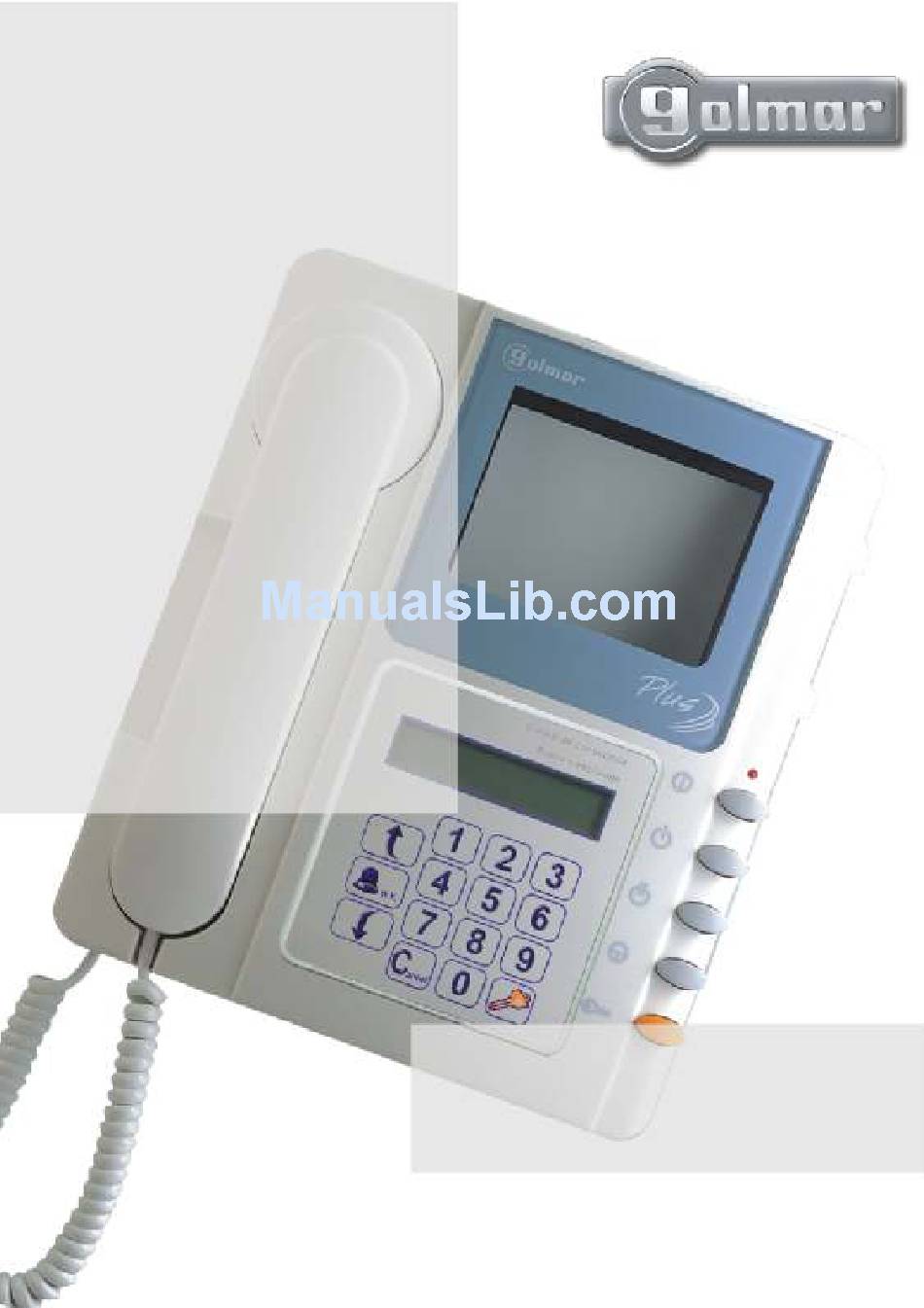

- Page 1 T990EN rev.0104 Porter's exchanges digital installation CE-990 Plus CE-941 Plus Instructions manual...
-
Page 2: Table Of Contents
First of all we would like to thank and congratulate you for the purchase of this product Do not use excessive force when tightening the power supply connector screws. manufactured by Golmar. Install the equipment without the power connected. Disconnect from power before any system The commitment to reach the satisfaction of our customers is stated through the ISO-9001 modification. -
Page 3: System Operation
SYSTEM OPERATION SYSTEM OPERATION Calling from the door panel to an apartment. Calling from the porter's exchange to an apartment. This procedure is detailed on the instruction manual included with the door panel. To make a call, the porter should pick up the hanset and key-in the code corresponding to the If the "capture panel"... - Page 4 CONNECTOR DESCRIPTION CONNECTOR INSTALLATION echanic description of the connector. ix the connector to the wall. For a proper emplacement use the template enclosed with the connector; avoid to place the exchange near to heating sources, in dusty locations or smoky environments. The exchange can be fixed using an electrical embedding box a.
-
Page 5: Porter's Exchanges
CE-941Plus and CE-990Plus unction push buttons. porter's exchanges. a. Screen (only CE-990 Plus model). On-Off push button. If the "Protected Mode" function is enabled (page 11), it shall be b. On-Off light indicator. necessary to introduce the user code to switch on the porter's exchange. -
Page 6: Adjustments
Jumper JP1 selects the call reception volume. If after starting the system it's considered that To enter into the main programming menu, golmar the volume is too high, modify the jumper position. press key symbol and enter Factory default: maximum. - Page 7 PORTER'S EXCHANGE PROGRAMMING PORTER'S EXCHANGE PROGRAMMING Coming from previous page Coming from previous page onfiguration menu. onfiguration menu. To enter into configuration menu, follow Allows to receive the panic calls made from configuraTION panic activated the steps described on the previous page a monitor or telephone, or when the O.K.
- Page 8 Displays the porter's exchange software version. display mESsAgE version 5.00 when the system is on stand-by position. golmar Use this text to show i.e. the building name or address. To change this message press OK and proceed End of the configuration menu. Use "UP" arrow key to move to the previous options.
- Page 9 PORTER'S EXCHANGE PROGRAMMING PORTER'S EXCHANGE PROGRAMMING Coming from previous page epertory menu. epertory menu. To enter into repertory menu, follow Allows to insert a new entry in a specific repertory repertory repertory:insert the steps described on page 10 position. This function allows to keep the O.K.
-
Page 10: Programming Menues
PORTER'S EXCHANGE PROGRAMMING PORTER'S EXCHANGE PROGRAMMING Coming from previous page epertory menu. ext edit. It is possible to transfer the repertory content To introduce or edit text during programming, use the keypad as described. The maximum repertory:t to other porter's exchange or panel in the number of characters in one text line is 16. -
Page 11: Power Supply Installation
POWER SUPPLY INSTALLATION TELEPHONE DESCRIPTION nstalling the FA-PLUS and FA-PLUS/C power supplies. escription of the T-940 Plus telephone. Telephone handset. The power supply must be installed in a dry and 3,5 x 25 Speaker grille. protected place. It's recommended to protect DIN-7971 Microphone hole. -
Page 12: Telephone Installation
If no door panels are installed, program the telephones as follows. Program the system with the porter's exchange handset lifted. To enter the porter's exchange into program mode, TELEPHONE INSTALLATION golmar press key symbol and enter the installer PIN code 13:15 (factory default: 1315), as described on page 10. -
Page 13: Optional Connections
CE-941 Plus and CE-990 Plus porter's exchanges have intercom facility between two porter's porter's exchange. -
Page 14: Installation Diagrams
INSTALLATION DIAGRAMS T-940 Plus T-940 Plus udio installation. The installation diagram shows the connection of an audio system with one or several door panels for the same building and one porter's exchange. If the system has no door panels or only one, override the corresponding wiring. If the system has more than one door panel, wire the second panel as shown on the diagram. - Page 15 Wire the porter's exchange as a monitor. SECTIONS CHART Distance Terminal 50m. 150m. +, – , CV+, CV – 1,00mm² 2,50mm² D4L-PLUS CE-990 Plus RCSH Plus A , A , A, D 0,25mm² 0,25mm² Central de conserjería Porter's exchange o.k. o.k. V , V...
- Page 16 Wire the porter's exchange as a monitor. IMPORTANT: For this type of installation, the door panels must have plugged an EL560 module in each and the monitors must have an EL561 plugged in each. CE-990 Plus The porter's exchange must use the RCSH-Plus/2H connector. RCSH Plus/2H...
- Page 17 FA-Plus/C or FA-Plus FA-Plus/C or FA-Plus Malla Malla out+ out- out+ out- Main Main D4L-PLUS D4L-PLUS General entrance door panel FA-Plus/C FA-Plus/C CE-990 Plus RCSH Plus Central de conserjería Porter's exchange o.k. o.k. ancel ancel Malla out+ out- Main Main...
- Page 18 INSTALLATION DIAGRAMS BUILDING 127 BUILDING 128 To the monitors To the monitors FA-Plus/C or FA-Plus FA-Plus/C or FA-Plus Malla Malla out+ out- out+ out- Main Main D4L-PLUS ideo installation with general entrance door panel ideo installation with general entrance door panel for residential complexes.
- Page 19 Golmar se reserva el derecho a cualquier modificación sin previo aviso. Golmar se réserve le droit de toute modification sans préavis. Golmar reserves the right to make any modifications without prior notice.
