Hardware layout

5 Hardware layout
The STM32F334 Discovery board is designed around the STM32F334C8T6 microcontroller
in a 48-pin LQFP package.
Figure 2
(ST-LINK/V2-1, high-brightness LED dimming with a buck converter, buck-boost converter,
LEDs, and push-buttons).
Figure 3
board.
10/34
illustrates the connections between the STM32F334C8T6 and its peripherals
and Figure 4 help you to locate these features on the STM32F334 Discovery

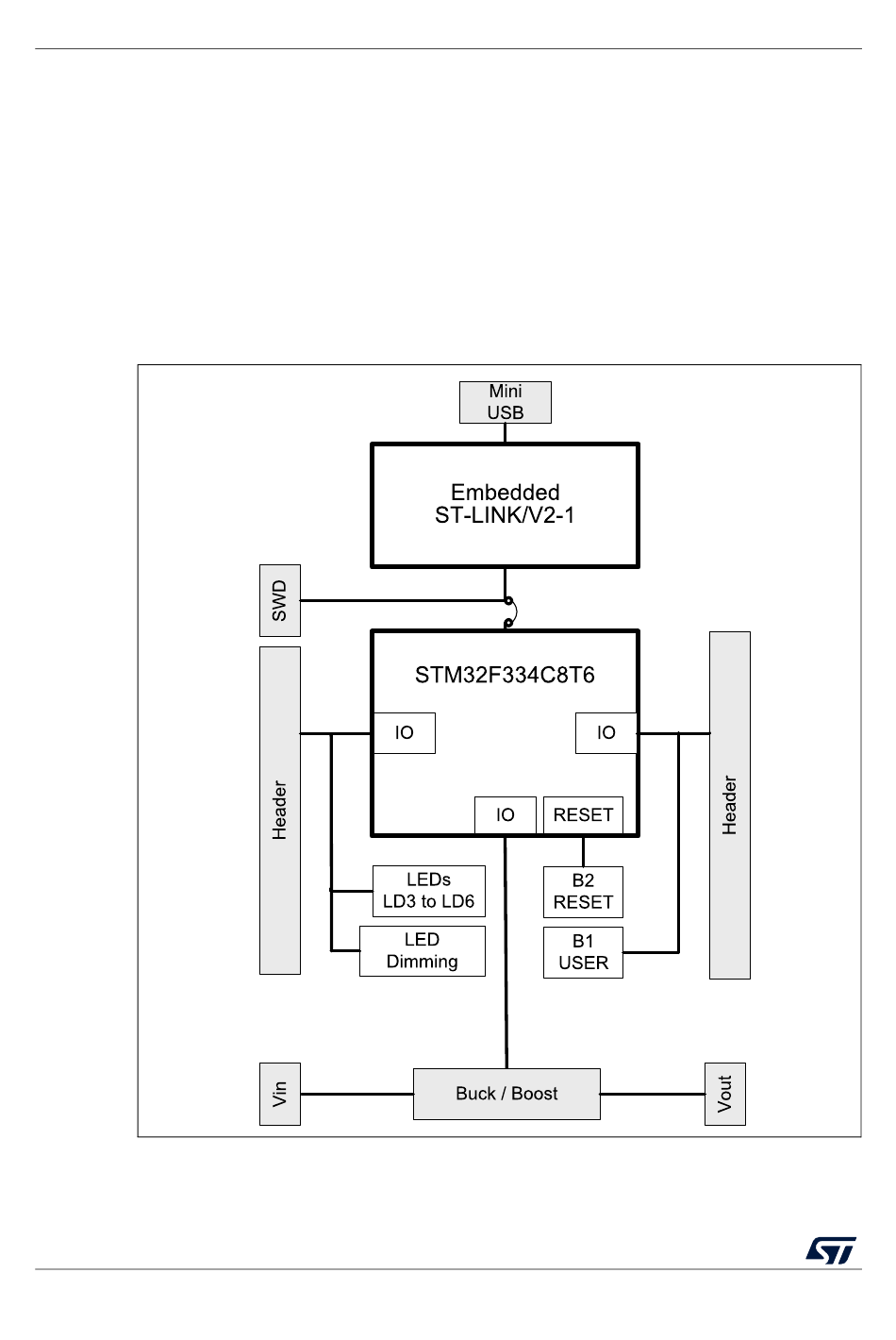

Figure 2. STM32F334 Discovery board hardware block diagram

UM1735 Rev 3
UM1735
MS34149V1
