A-2 Creating SFC Elements

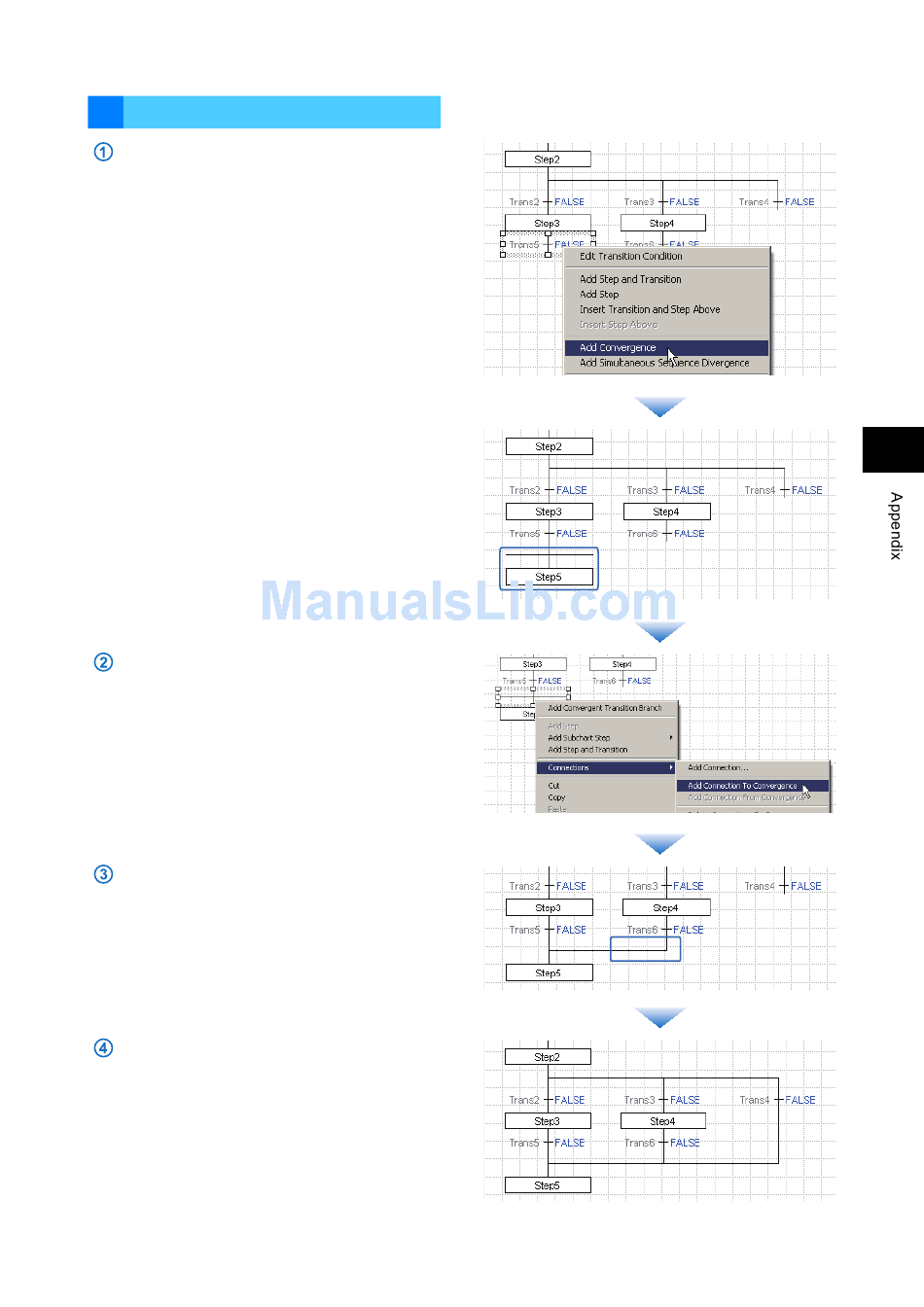

2 Create a convergence.
Right-click a transition, and select Add
Convergence from the pop-up menu.
A
A convergence line and a step will be added.
A connector extending from the transition to
the convergence line will also be added.
Right-click the convergence line, and select
Connections - Add Connection To
Convergence from the pop-up menu.
Move the cursor to the transition to be
merged, and click.
The transition will be connected to the
convergence line.
Complete the convergence by repeating the
above procedure.
A-7
