Setting Transition Conditions - Omron SFC - INTRODUCTION GUIDE Introduction Manual

2-7 Simulated Transition Test
Click OK.
Online connection is now completed.

2-7-2 Setting Transition Conditions

2
Confirm that the transitions actually take place when the transition conditions are satisfied.

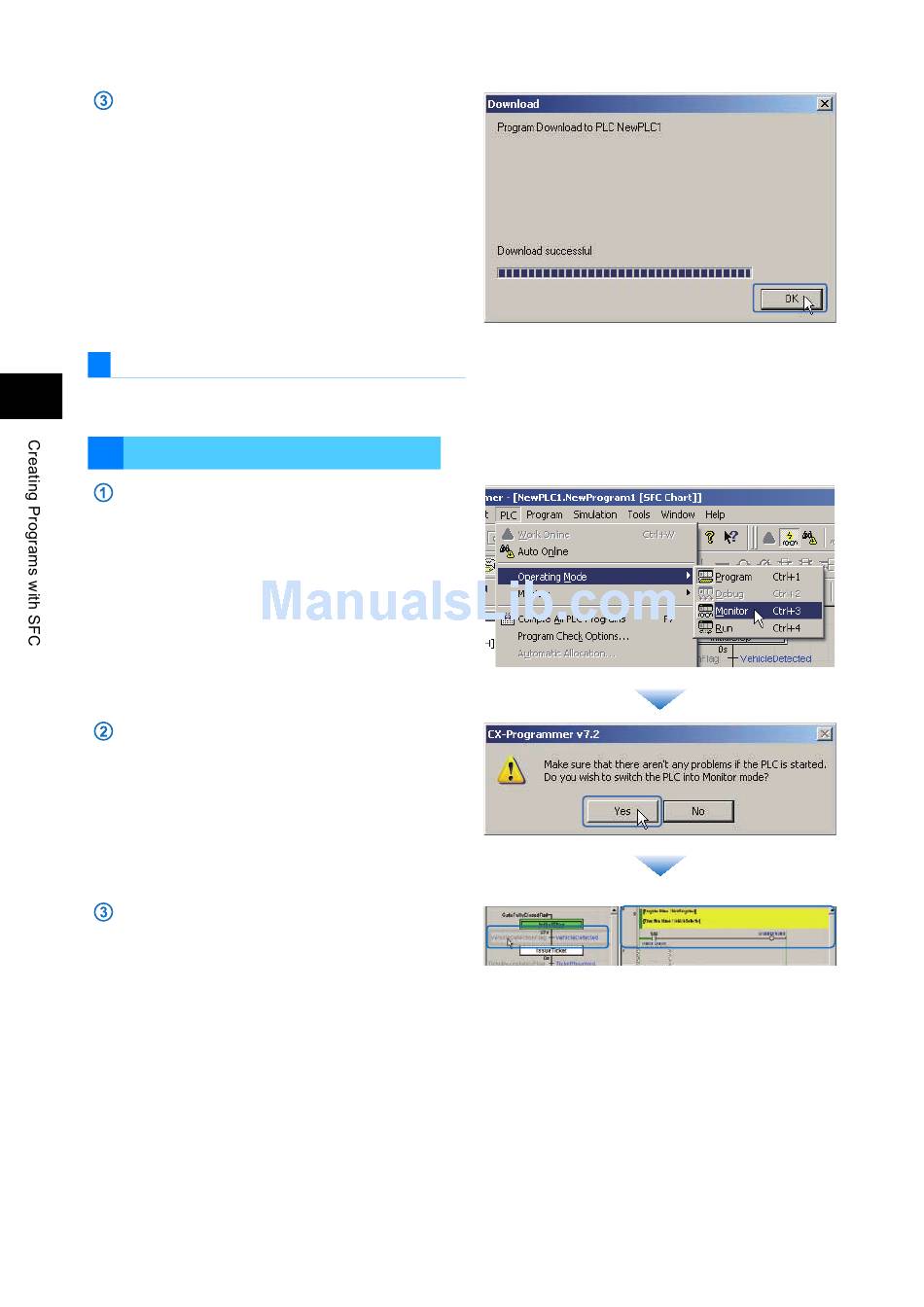

1 Switch to Monitor mode.
Select PLC - Operating Mode - Monitor.
A confirmation dialog box will be displayed.
Click Yes.
The operating mode for the PLC will be
switched to Monitor mode.
The SFC editor will become greyed out.
The green frame represents the active step.
Click the Vehicle Detection Flag transition.
The Vehicle Detected program will be
displayed in the program view.
