2-9 Simulated Operation Test
4 End the simulation.
Select Simulation - Work Online Simulator.
The simulator will go offline.
Select Simulation - Exit Simulator.
The simulator will close.

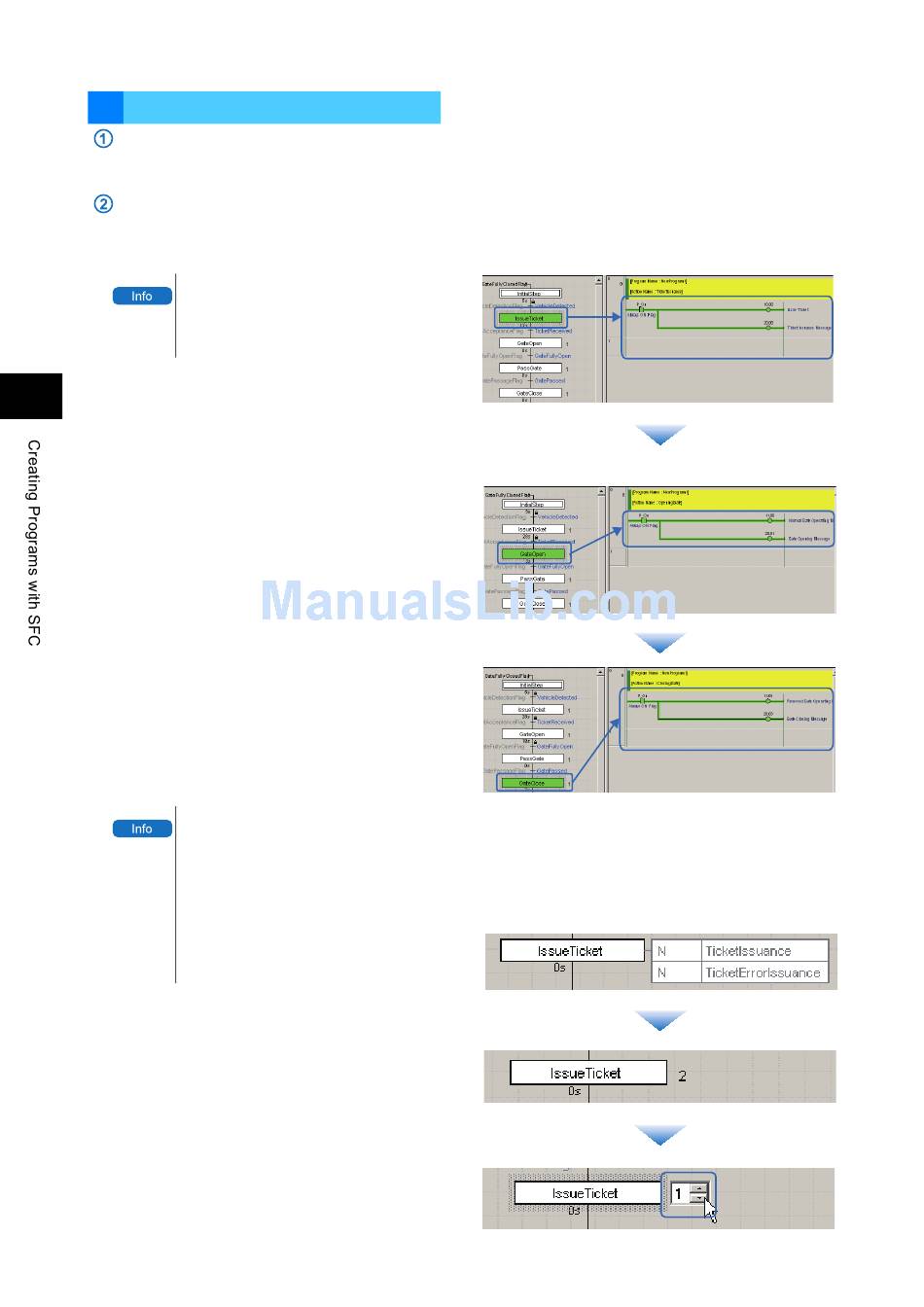

Action blocks can be hidden for easier viewing
of the steps and the transitions. When the
action blocks are hidden, the action programs
for the active step will be displayed as the
active status is transferred.
2
Action blocks can be hidden in either of the
following ways.
•Right-click a step and select Show Action
Blocks from the pop-up menu.
•Right-click on a blank area of the SFC view,
and select Hide All Action Blocks from the
pop-up menu.
If there are multiple action blocks, select the
action to be displayed by selecting its number
from the list.
