2-5 Creating Steps and Transitions

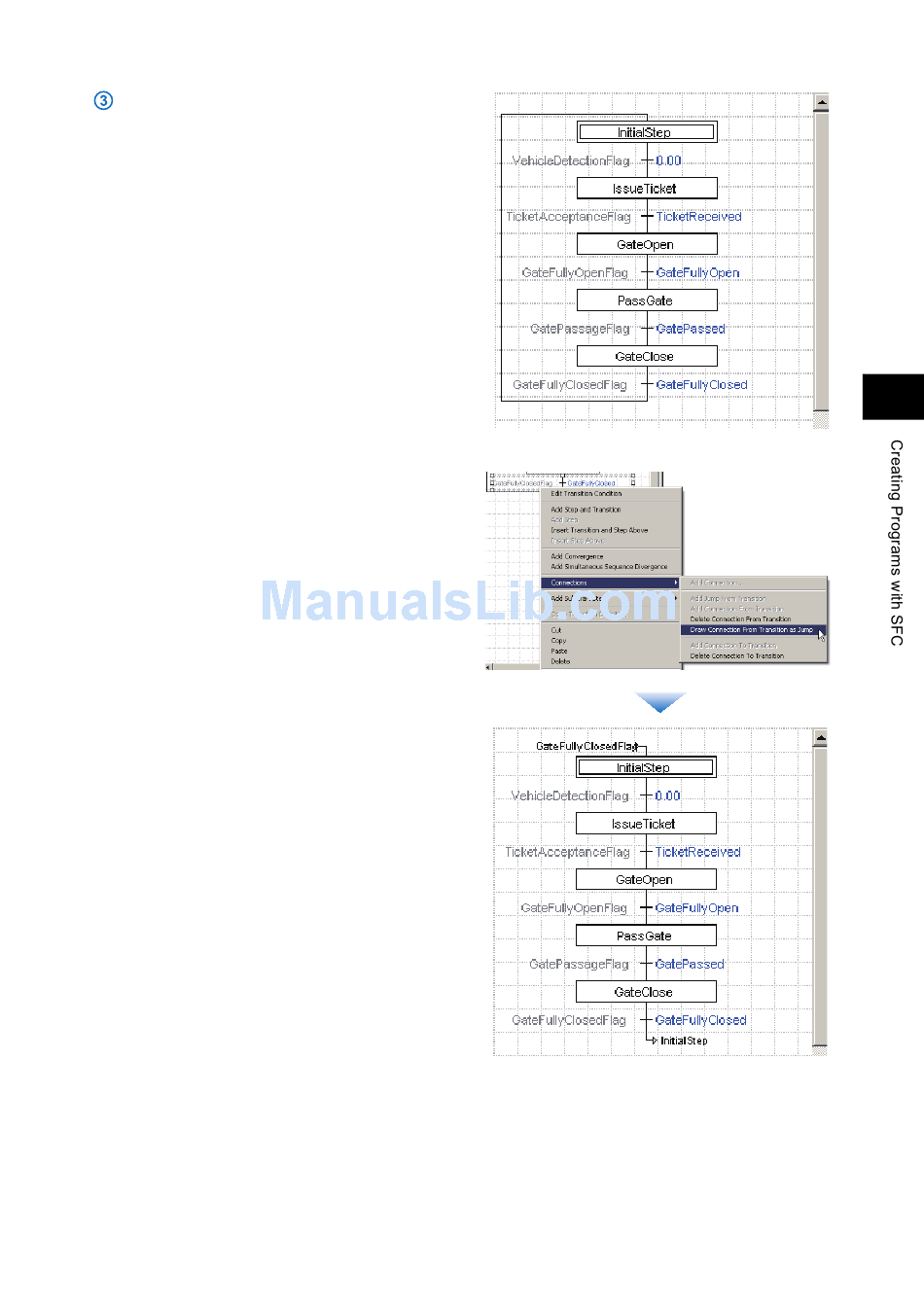

Left-click on the mouse.
The step and the transition will be connected.
This connection is referred to as a "loop".
2
The loop can be displayed differently for
easier viewing of the SFC chart.
Right-click the Gate Fully Closed Flag
transition, and select Connections - Draw
Connection From Transition as Jump from
the pop-up menu.
A jump is functionally identical to a loop. They
differ in appearance only.
The SFC chart is now completed, except for
the actions.
