Section 1
SFC Overview
This section explains the features and the operations of SFC.
1-1

Introduction of SFC

This section provides an overview of SFC.

1-1-1 Describing Programs with SFC

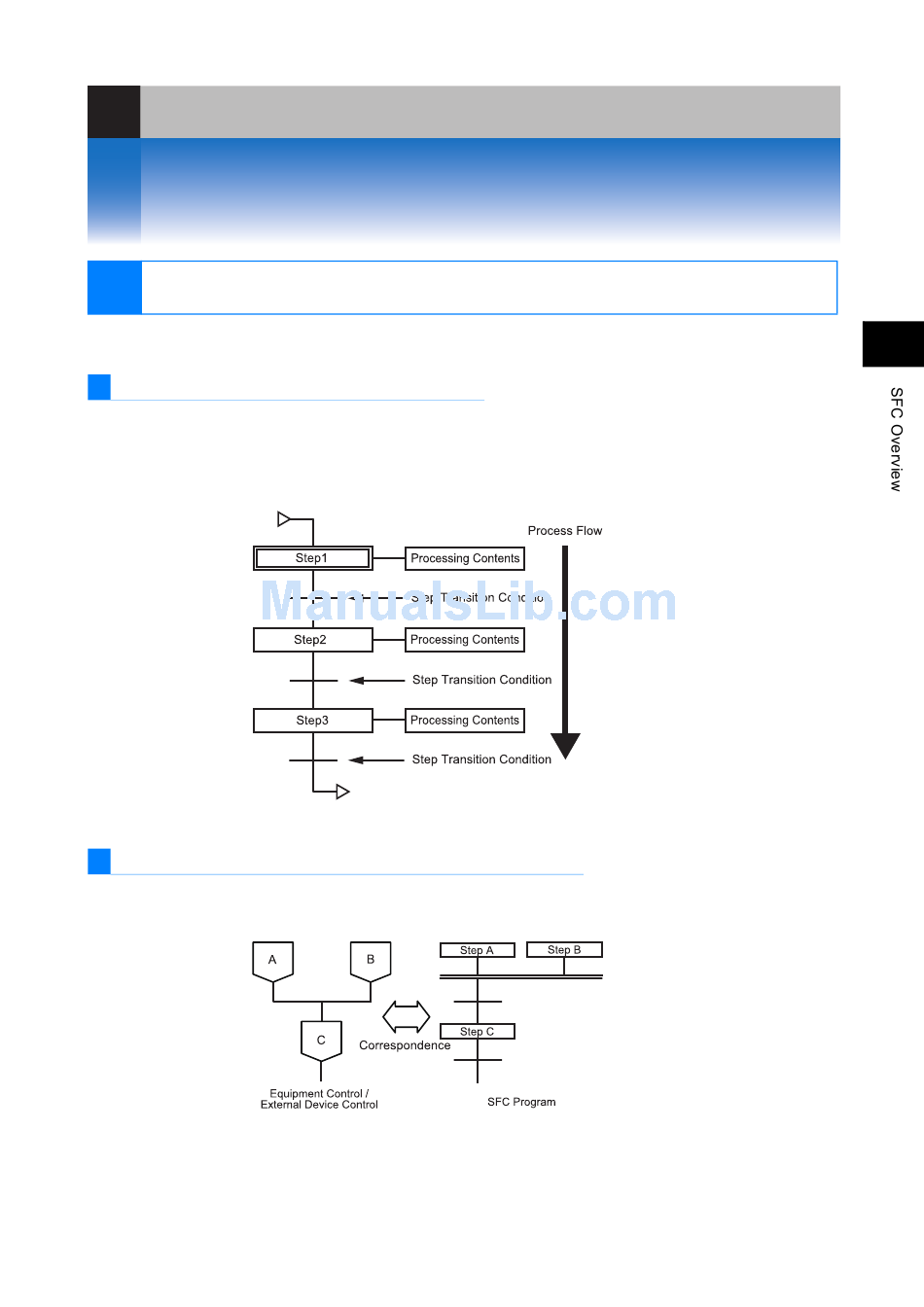

Sequential Function Chart (hereafter called SFC) is a graphical programming language that
displays the process flow as a diagram, thereby allowing the user to control the sequential
processes by describing the transition conditions and actions for each step.
SFC is suitable for understanding the processing order and status transition of a program.

1-1-2 Correspondence of Steps and Programs

Program controls correspond to the actual step flow, making it easy to understand the program as
a whole. This reduces the workload in debugging and maintaining the programs.
