Assigning Action Qualifiers - Omron SFC - INTRODUCTION GUIDE Introduction Manual

2-8 Creating Action Blocks

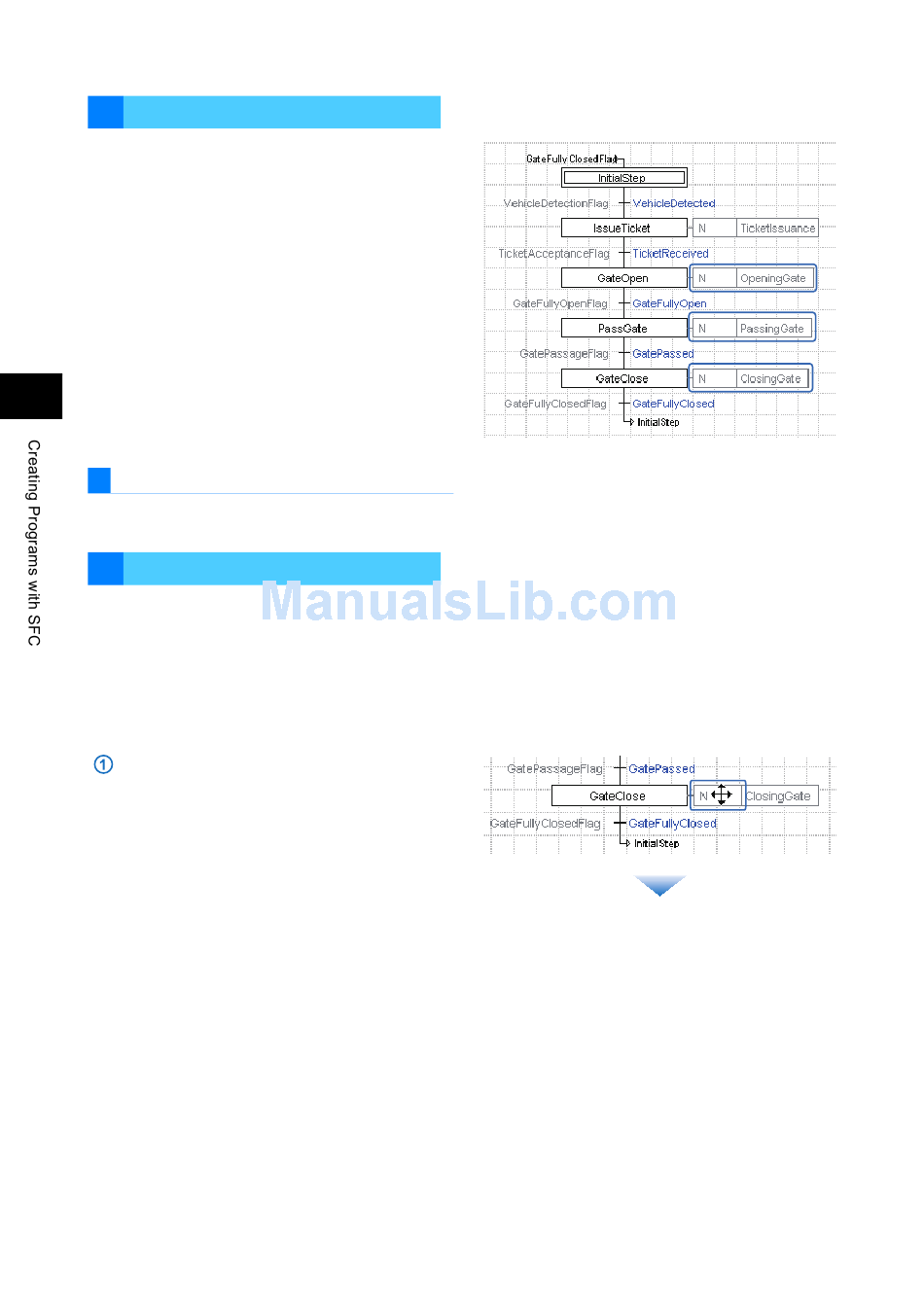

3 Create the remaining actions.
In the Gate Open step, open the gate and
display the "Opening gate" message.
In the Pass Gate step, display the "Go"
message.
In the Gate Close step, close the gate and
display the "Closing gate" message.
In all steps, the outputs are reset at the end of
the step.
Create action blocks for the remaining steps,
in the same manner as for the Issue Ticket
step.
2
For details on action programs to be created,
refer to 2-2-3 Programming Example.

2-8-2 Assigning Action Qualifiers

Set the execution timing for the actions.
1 Select an action qualifier.
In the Gate Close step, the gate will be
closed.
Wait until 3 seconds after the vehicle has
passed the gate before beginning to close the
gate. The execution timing for an action is set
by using an action qualifier (AQ).
Double-click the N AQ for the Closing Gate
action.
A drop-down list will be displayed.
For details on AQ, refer to A-1-2 Action
Qualifier (AQ) List.
