Omron SFC - INTRODUCTION GUIDE Introduction Manual page 39

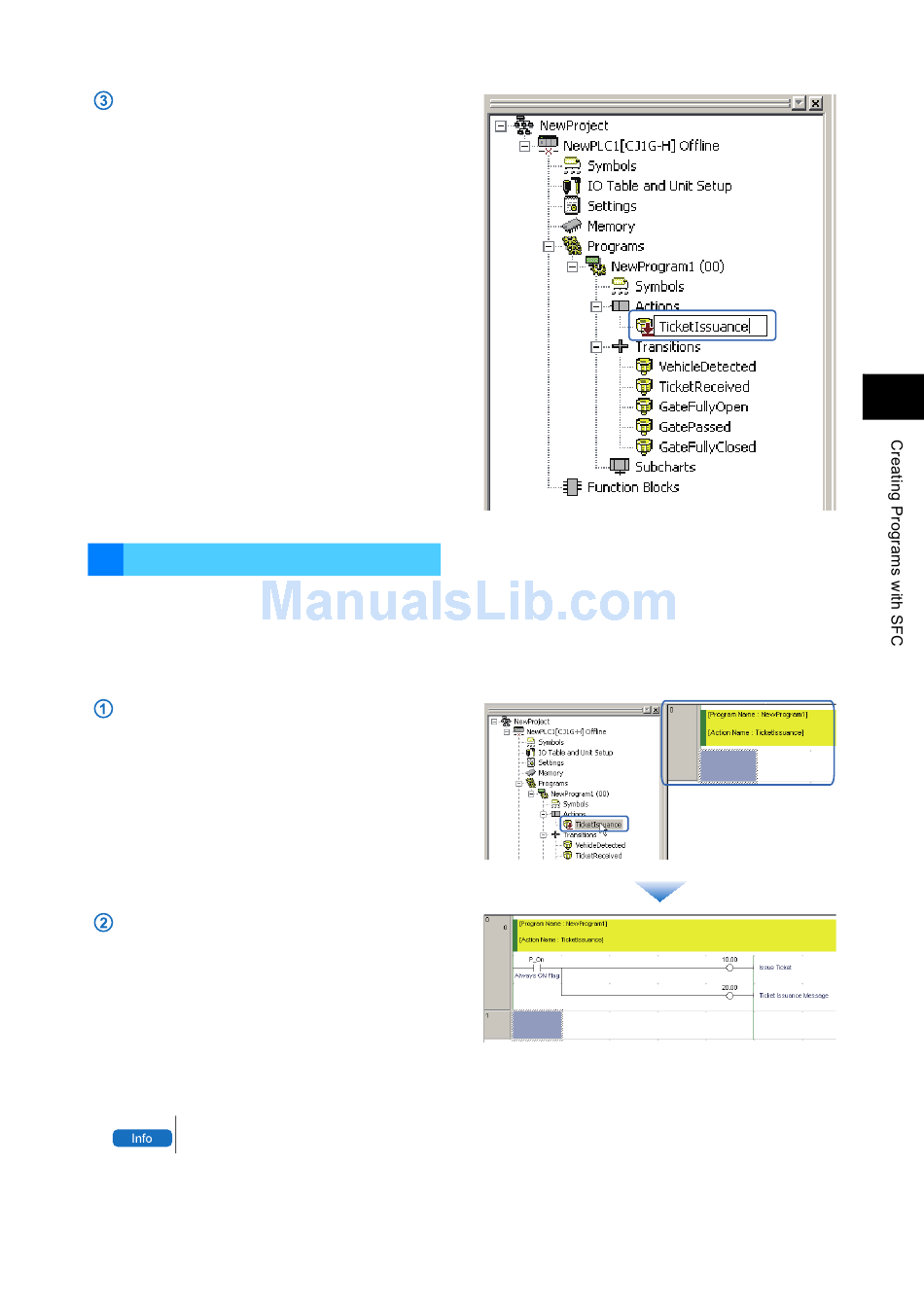

Type "Ticket Issuance".
The action program will be renamed to Ticket
Issuance. The action will also be renamed
automatically on the SFC chart.
2 Create the program.
In the Issue Ticket step, issue a ticket and
display the "Take ticket" message.
Create a program that starts these two
processes when the step becomes active.
Double-click the Ticket Issuance program.
The ladder editor will be displayed.
Create the ladder program.
To turn an input ON when the step becomes
active, use P_On (always On flag). Enter
output contact 10.00 for the ticket dispenser,
and output contact 20.00 for the display panel.
For details on the programs to be created and
the comments to be entered, refer to 2-2-3
Programming Example.
For details on creating ladder programs, refer to
CX-Programmer Operation Manual.
2-8 Creating Action Blocks
2-29
2
