Flow vision PERFLU 5-EX-CA Installation Instructions & Adjustment Settings page 25

PERFLU
5-EX-CA

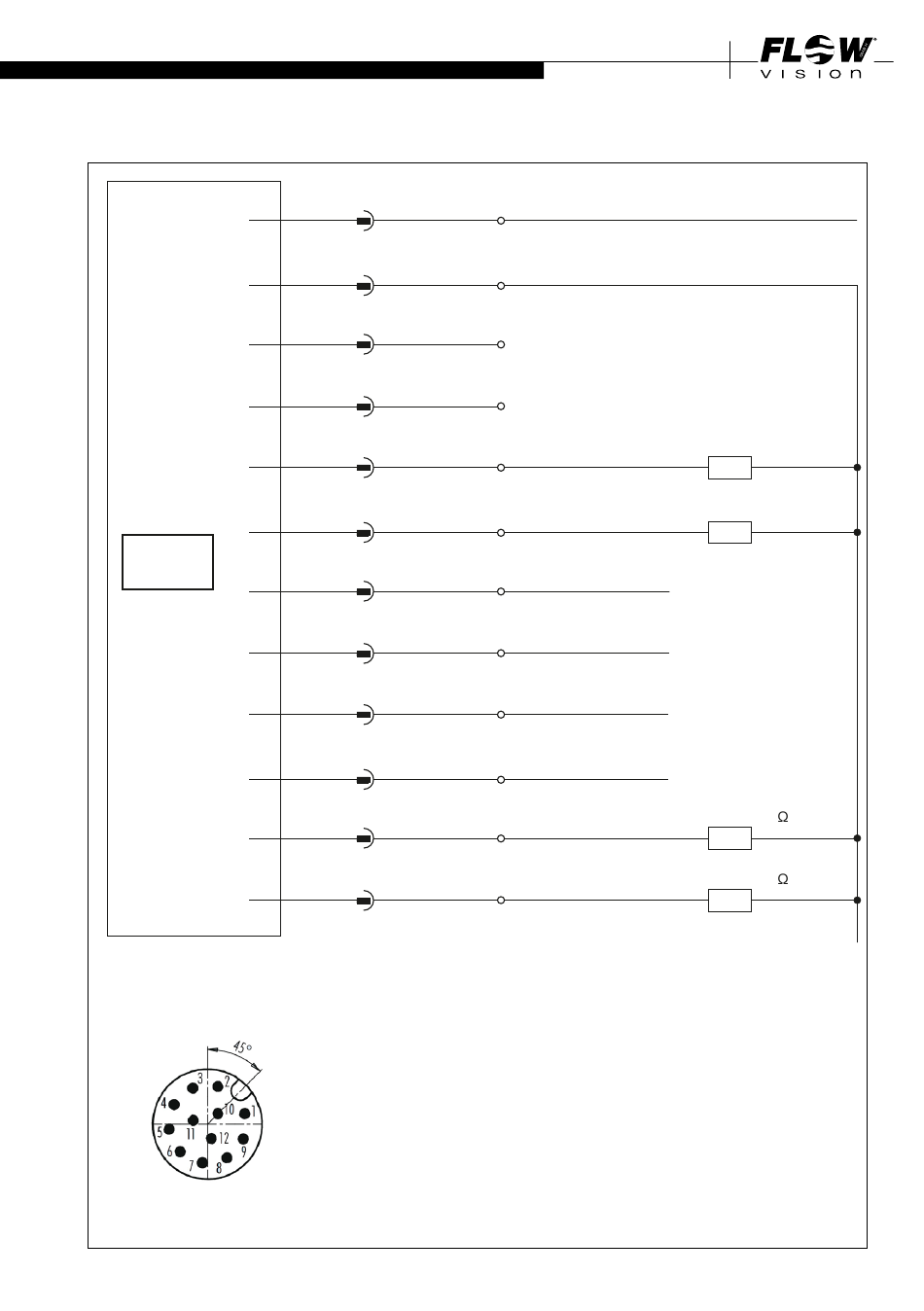

Stecker Draufsicht
connector top view
Flow Meter | PERFLU 5-EX-CA
1
braun/br own
+ DC 24 V
2
blau/blue
GND
3
weiß/white
reserviert/reserved
4
grün/green
reserviert/reserved
5
rosa/pink
Fehlermeldung/error
6
gelb/yellow
Pulsausgang/pulse output
7
schwarz/black
Relais 2/relay 2
8
grau/grey
Relais 2/relay 2
9
rot/red
Relais 1/relay 1
10
violett/purple
Relais 1/relay 1
11
grau-rosa/grey-pink
0/4...20 mA Temperatur/temperature
12
rot-blau/red-blue
0/4...20 mA Durchfluss/flow
+ DC 24 V
Last/load max. 500 mA
Last/load max. 500 mA
AC/DC 24 V, max. 0,7 A
AC/DC 24 V, max. 0,7 A
Last/load max. 500
Last/load max. 500
Fig. 15
GND
25
