Flow vision PERFLU 5-EX-CA Installation Instructions & Adjustment Settings page 23

4.1 Elektrischer Anschluss des
Sensors

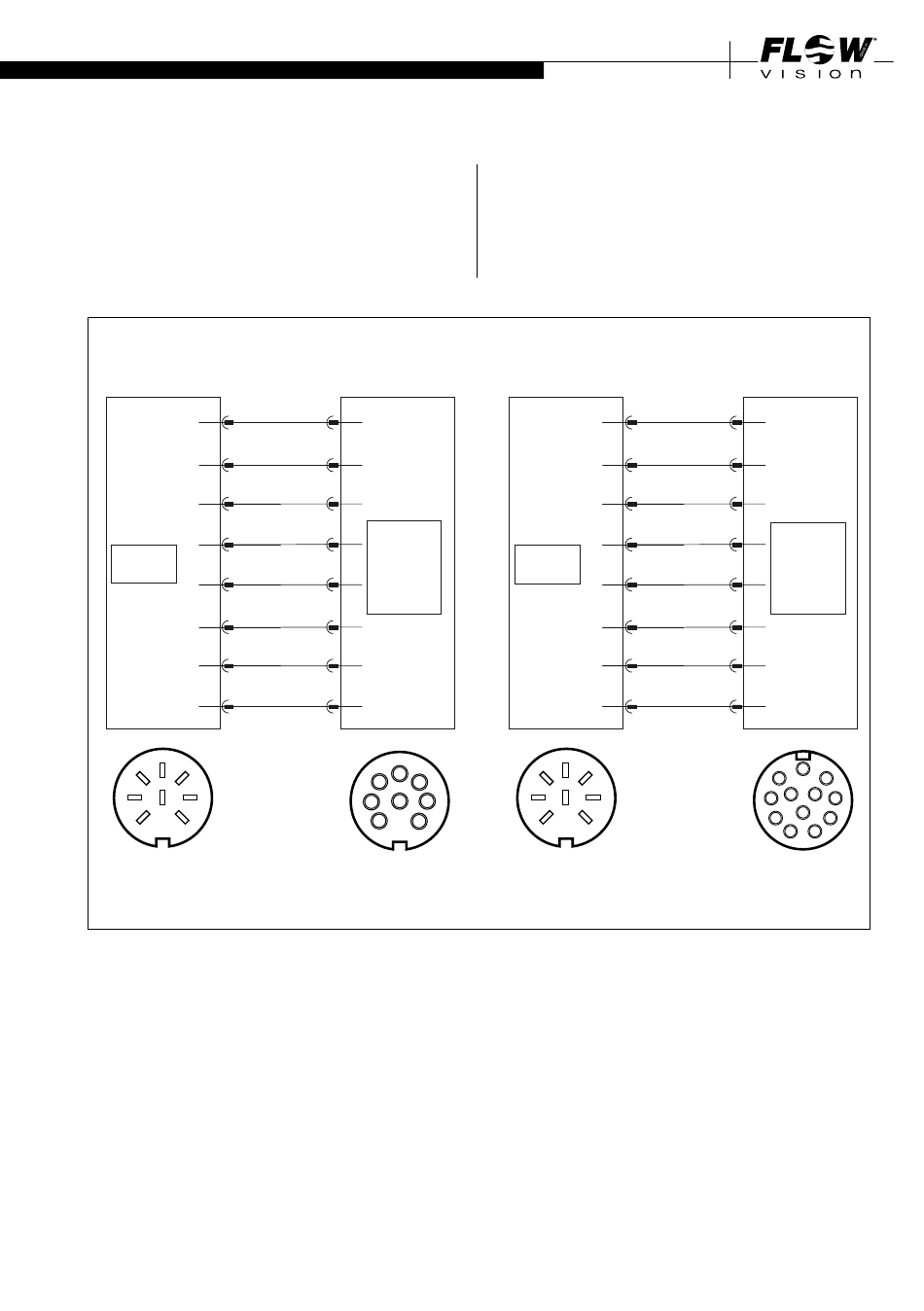

Der Sensor wird mit Hilfe des FlowVision Kabels Do+Ka
Typ 41/51 in PVC- oder Typ 42/52 in Silikonaus führung
mit der M16-Buchse der Auswerteeinheit verbunden.
Kabel Do+Ka Typ 41/42
Cable Do+Ka type 41/42
1
2
grün/green
3
braun/brown
4
PERFLU
5-EX-CA
5
weiß/white
6
grau/grey
7
gelb/yellow
8
blau/blue
2
5
4
1
3
8
6
7
Buchse M16, 8-polig
Connection jack M16, 8-pole
Flow Meter | PERFLU 5-EX-CA
1
rosa/pink
2
3
4
Sensor
rot/red
VIC-EX
5
SIC-EX
PIC-EX
6
7
8
2
4
5
3
1
8
7
6
Stecker M16, 8-polig
Connector M16, 8-pole
4.1 Electrical connection of the
sensor
The sensor is connected to the M16 connection jack
of the control unit using the FlowVision cable type
41/51 in PVC- or type 42/52 in silicone-version.
Kabel Do+Ka Typ 51/52
Cable Do+Ka type 51/52
1
2
weiß/white
3
braun/brown
4
gelb/yellow
PERFLU
5-EX-CA
5
6
7
8
2
5
4
1
3
8
6
7
Buchse M16, 8-polig
Connection jack M16, 8-pole
1
grün/green
2
3
4
Sensor
VIC-EX-HT
5
blau/blue
SIC-EX-HT
PIC-EX-HT
6
grau/grey
7
rosa/pink
8
rot/red
9
1
8
2
10 12
3
11
4
5
Stecker M16, 12-polig
Connector M16, 12-pole
Fig. 14
7
6
23
