Advantage Controls MegaTronMT Installation Maintenance Repair Manual page 38

CABLE-7P-2A

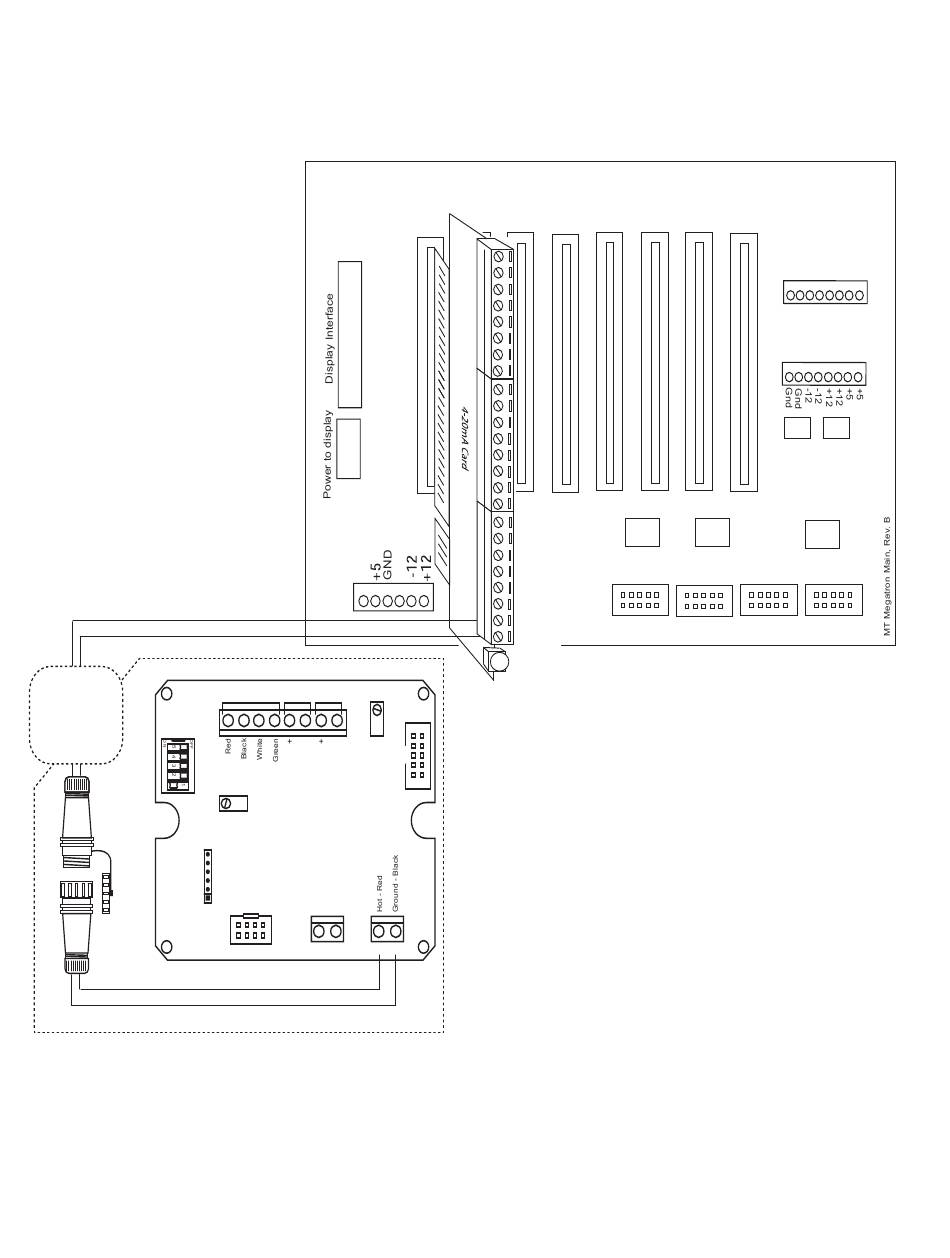

Wiring a Nano-M to a
MegaTronMT, or
*Other Building Management System
Note:
Refer to full manual for
additional information
BLACK (ground)
RED
*Or to other
Building
Management
System
Input Device Red (positive)
Input Device Black (negative)
Incoming Power
Water Flow
Contrast
Conductivity
Meter Meter
- -
Nano-M
Motherboard
Corrosion 4-20mA
Card Slots
LED
Cable
Input 1 -
Input 1 +
LED
38
(H11, H12)
Comm.
Jumper Block
Spare Power
Relay Card Outputs
1-5 11-15
6-10
16-20
