Advantage Controls MegaTron Quick Steps

Web Connectivity via Cell ROUTER-3 Internet
Our cell router packages are a plug and play
setup. The controller CAT5 is connected to
the ROUTER-3 CAT5 via a coupler. Then plug
in the ROUTER-3's electrical cord to power.
Troubleshooting
(additional on back)
Step 1:
This is the RUN Screen. When the controller
is communicating with our network correctly,
there will be a steady DR (DA) code displayed.
If the code alternates DR/DL (or a steady DC)
this usually means that the cellular signal is
not strong enough. The ROUTER-3 box and
antenna may need to be relocated to an area of
regular cell reception. CAT5 cable run over 328
ft. requires a repeater or switching appliance.
Megatron
SYS1: Towers 1-4
COND: 0 uS/cm
pH: 3.2
ORP: 548 mV
3 ALARMS! DR
Other codes that may be present:
NC = Talking to ICM but not connected
DR (DC) = DHCP remote connect (+WebAdv)
DA = DHCP WebAdv connection & authent.
DL = DHCP local connection
SR (SC) = Static remote connect (+WebAdv)
SA = Static WebAdv connection & authent.
SL = Static local connection
FL = DHCP failed local connection
CS = No communication card detected
1
Diagnostics - Only shows on startup/boot.
2
Controller assigned static IP (DHCP:Off). Not used
with cellular connections. Enable DHCP as directed
in Steps 2 through 4.
3
No network detected or CAT5 cable not plugged in.
4
If a card is present and you are getting CS, check
that the comm card is properly seated into the carrier
board. This may loosen in shipment. On MG and
XS units make sure the board is seated in all the
way (with power off). On SS units make sure ribbon
cable to carrier board is plugged in correctly.
MegaTron Quick Steps
TEMP1: 68°F
WM1: 0.0
WM2: 0.0
FLOW: ON
RELAYS
1,3
2
2
2
3
4
Step 2:

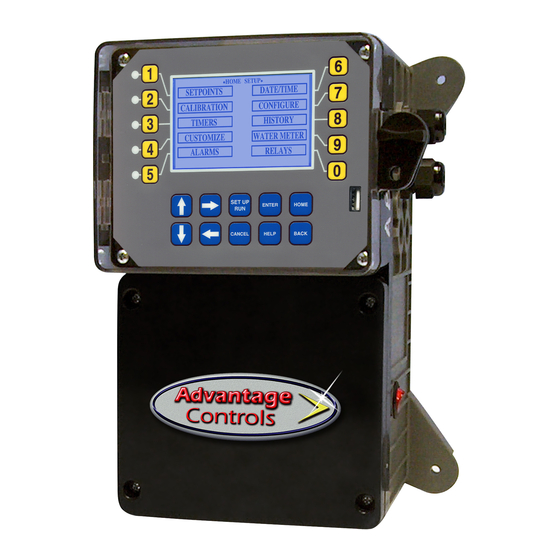

Push the SET UP RUN button to get this screen. From here
push CONFIGURE (Button 7) to go to the next screen.
>HOME SETUP<
SETPOINTS
CALIBRATION
TIMERS
CUSTOMIZE
ALARMS
Step 3:
This is the Configure Screen. From here push NETWORK
(Button 8) to go to the next screen.
PASSWORD
RELAYS
HISTORY
FLOW SW
Step 4:
This is the Network Summary Screen.
a summary of the currently assigned controller network
settings. When connected to the cellular modem, these
numbers will auto populate. Note: Any changes beyond
this point require RESET (Button 0) to be pressed and a 60
second restart countdown will begin.
IP ADDR:
SUBNET MASK:
GATEWAY:
DOMAIN:
ACI SERVER:
HOST:
MAC:
DHCP:
Local Mode:
Remote Mode:
SETTINGS
If you are getting a DR (DA) or SR (SA) and cannot see the
controller on the WebAdvantage summary screen, please
check with us to see if you have submitted the connection
sheet correctly. If you have not filled out the connection
sheet, you can do so online at...
www.advantagecontrols.com/request_webadv_connect.php
DATE/TIME
CONFIGURE
HISTORY
WATER METER
RELAYS
>CONFIGURE<
CONTRAST
TEMP SCALE
NETWORK
SYS INFO
FACTORY
This screen is
>NETWORK<
192.168.1.76
255.255.255.0
192.168.1.240
DynamiCUniversal Rabbit BIO
web80.advantagecontrols.com
mycontroller
00:90:c2:d9:ea:7c
On
On
DHCP
On
RESET
