Advantage Controls MegaTronMT Installation Maintenance Repair Manual

Touch screen controller
Hide thumbs Also See for MegaTronMT:
Table of Contents

Advertisement

Quick Links

Download this manual
Touch
Manual
Touch Screen
Controller
Installation
Maintenance
Repair
Manual
Advantage Controls
4700 Harold-Abitz Dr.
Muskogee, OK 74403
Phone: 800-743-7431
Fax: 888-686-6212
www.advantagecontrols.com
3/2024
E-mail: support@advantagecontrols.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MegaTronMT and is the answer not in the manual?

Questions and answers

Related Manuals for Advantage Controls MegaTronMT

Summary of Contents for Advantage Controls MegaTronMT

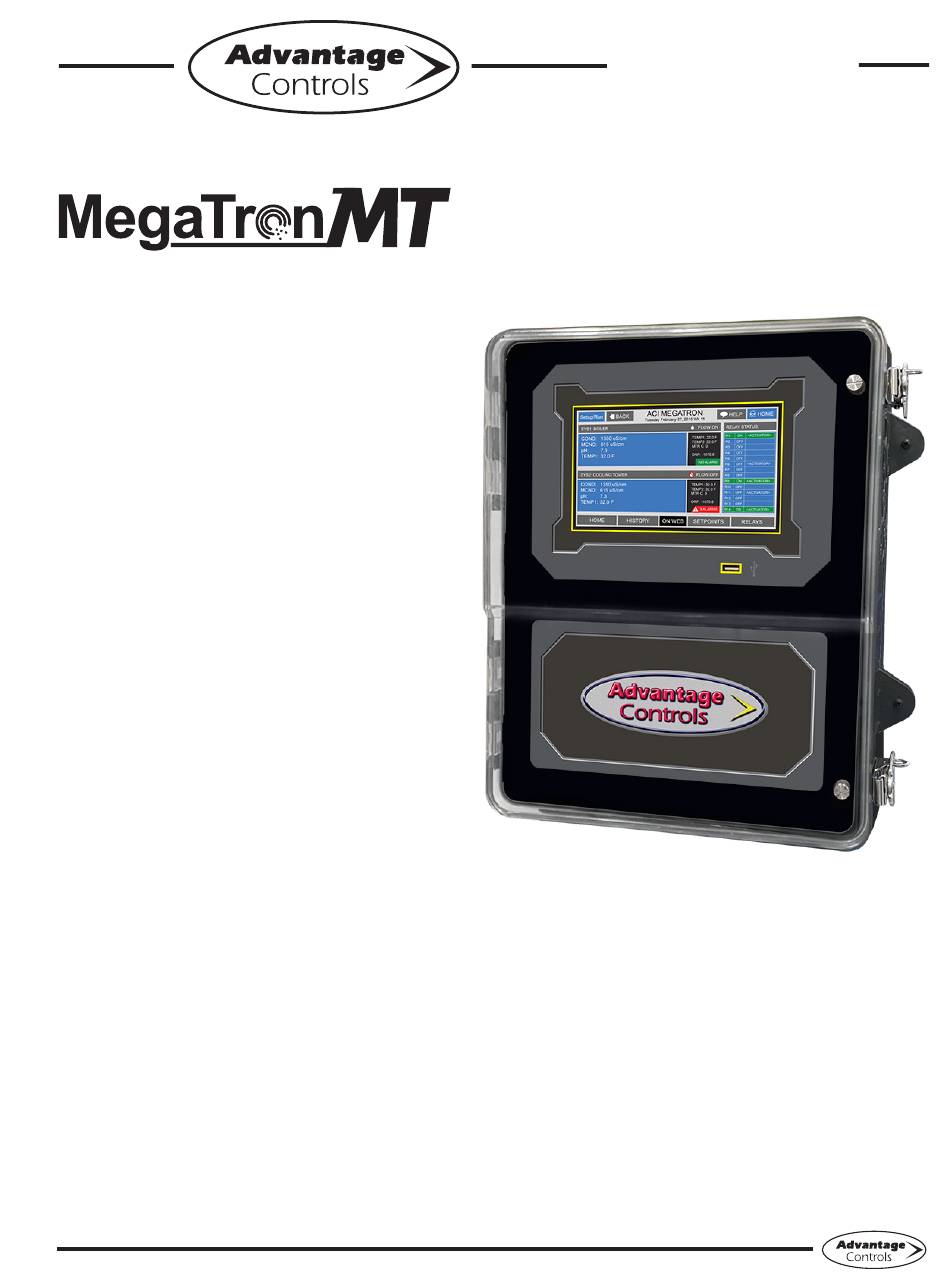

  • Page 1 Touch Manual Touch Screen Controller Installation Maintenance Repair Manual Advantage Controls 4700 Harold-Abitz Dr. Muskogee, OK 74403 Phone: 800-743-7431 Fax: 888-686-6212 www.advantagecontrols.com 3/2024 E-mail: support@advantagecontrols.com...

  • Page 2: Table Of Contents

    MegaTronMT Touch Screen Controller Instruction & Maintenance Manual Table of Contents Contents Page Introduction ................. 3 Model Numbering ............... 3 Description of Unit ..............3 Installation .................. 4 Electrical Wiring ................4 Wiring Diagrams ................. 5 Mounting Instructions ..............8 Electrode Installation ..............

  • Page 3: Introduction

    Model Numbering table listed below. Model Numbering MegaTronMT units have several base system control functions and unit optional features. Your unit may be supplied with one or more of the features described in this manual. To determine what features apply to your unit check the model number label located on the controller enclosure.

  • Page 4: Installation

    Chemical Feed Timers Chemical feed timers are designed to automate the addition of various chemicals by activating a relay output. Multiple timers can be supplied depending upon the model number and each timer will include a relay output. All timers can be programmed to be one of the following types. Pulse Time - Accepts pulses from a make-up water meter (supplied separately).

  • Page 5: Wiring Diagrams

    NOTES: 1. Liquid tight fittings and some labeled signal leads are provided for all signal (low voltage) connections for both pre-wired and conduit units. 2. Units should be ordered with the appropriate option to provide powered relays designed for the incoming/outgoing power.
  • Page 6 Back Pane Connections MegaTronMT Back Pane Card Slots (H11, H12) Comm. Jumper Block Spare Power +12 VDC for paddlewheel owmeters Relay Card Outputs 11-15 16-20 6-10 Incoming Power System Card Connections Standard System Card Misc. Conductivity Black Temperature Green Note: Conductivity probe’s wire colors...
  • Page 7 4-20mA Output Card Wiring Isolated Configuration For isolated 4-20mA outputs an external power source for the loop must be supplied. JP4 and JP5 on the board must be jumpered for isolated, with an external power source supplied to the external VDC input. The external power source must not exceed 24 volts DC.

  • Page 8: Mounting Instructions

    Electrode Installation MegaTronMT controllers may come configured for various circulating water systems. Listed below are instructions for typical cooling tower and boiler installations. Your specific installation requirements may differ, but should conform to these instructions as much as possible for proper operation.
  • Page 9 Typical Cooling Tower Installation Diagram COOLING TOWER TO DRAIN MAKE-UP WATERMETER PUMP CIRCULATION CHILLER Cooling Tower Probe Assembly FS-FC TFS-C FS-0C TFS-OC 1A9A000262 E-30-PH pH Probe PE-21 FS-T -or- OE-21 ORP Probe PE-NUT FS-B1-SP 2C0A-150 FS-PT-P E-30-PH Paddle Flow Switch used with option FS-SP Sample Valve...

  • Page 10: Boiler

    Boiler Standard boiler electrodes have a MNPT stainless steel bushing and are supplied with a FNPT cross designed for mounting in the skimmer (surface) blowdown line. Sampling of the boiler’s water can be achieved using one of two typical plumbing configurations (continuous sampling or timed and/or sample &...
  • Page 11 Typical Continuous Sampling Installation Fully ported gate or ball valve Throttling device 1" Continuous blow down line Electrode within a 1" cross with electrical 1/2" pipe connection vented Electrically between probe actuated and throttle blow down device and valve flush valve Warning - Do not use on bottom blowdown lines, only continuous or surface blowdown lines.

  • Page 12: Front Panel

    III. Front Panel Description SET UP/RUN - System initializes into RUN mode. Press this key to put the controller in SET UP Mode and see HOME menu page. HOME - Used to go back to the HOME menu page. HELP - Used to access help screens.

  • Page 13: System Operation Overview

    Calibration All MegaTronMT controllers are factory calibrated for temperature, conductivity, pH, and ORP. All units are shipped with the date preset, and the clock set to your current time. These readings and settings should be verified for accuracy, and adjusted as per the instructions listed below.

  • Page 14: Menu Navigation

    To access the menus, press the Set Up / Run key on the front panel. This takes you to the Home menu. MegaTronMT controller’s menus are easily navigated by pressing the associated number key next to a menu box on the screen. Once you have stepped through the sub menus to reach a point at which a value or selection is made, a Pop-up window will appear prompting you to enter a desired value or selection.
  • Page 15 Set Point Options SET POINT - What reading turns the relay on. DIFFERENTIAL - Amount reading changes by before the relay is turned off HIGH ALARM - What reading generates a High alarm. LOW ALARM - What reading generates a Low alarm. LIMIT TIME - What amount of continuous bleeding will generate a time alarm notice.
  • Page 16 SET POINT - What reading turns the relay on DIFFERENTIAL - Amount reading changes by before the relay is turned off HIGH ALARM - What reading generates a High alarm notification. LOW ALARM - What reading generates a Low alarm notification.
  • Page 17 2.6. Calibration Calibration is for adjusting the displayed value of a probes reading to match your tester or known solution. Pick the system or mA input first. From a particular system, pick the probe to calibrate. CALIBRATION - For adjusting the actual reading values of the available analog probe inputs, such as conductivity, pH, ORP or temperature.
  • Page 18 2.7. Timers A unit may have up to 5 selectable timers for each system on a controller. All timers are associated with their system, so for a % of post bleed timer looks at the bleed of that system. TIMERS - Select the type (28-Day, pulse, limit, percent, recycle, percent of post bleed, or other event), as well as the run times of each timer available per system.
  • Page 19 2.7.d. Recycle Timer ON CYCLE - The amount of the defined time that the timer is to be on. OFF CYCLE - The amount of time that the cycle will be off. ON/OFF TIMER - This is the displayed countdown of time for the cycle the timer is in.
  • Page 20 2.7.g. 28-Day Timer Each 28-Day timer has Program 1-4 for programming the various feed times. While the programming steps for four programs are the same, each can have its own independent settings. WEEKS - The week(s) that the timer is to feed. DAYS - The day(s) that the timer is to feed.
  • Page 21 2.9. Water Meters / Totalizers Each system with a timer on it will have 2 water meter inputs. Each of these can have the incoming contact defined, allowing the controller to keep track of water usage. If desired, the controller can calculate evaporation loss by subtracting the deference between a system’s two water meter inputs.
  • Page 22 3.1. 4-20mA Out Settings Units with a 4-20mA output option will have a menu for setting up the 4-20mA output. The 4mA and 20mA values can be defined by giving the output proportioning capability. i.e. 4mA = a pH of 6.0 and 20mA = a pH of 8.0.
  • Page 23 While in the High or Low calibration pop-up screen use the up and down arrows to change the output value being read with the voltmeter. Adjust the High value for the 20-mA reading and the Low value for the 4-mA value.
  • Page 24 Customize This menu allows the user to define the on-screen name of the unit plus the name of each system and relay. The user can also set up the Notepad for each system and 4-20mA Input’s name and unit of measurement. RUN SCREEN - Allows the user to select what will be shown on the screen while the controller is in the RUN mode, such as displaying temperature readings, water...
  • Page 25 SENSOR 1 - The first sensor reading or Notepad value to be used in the calculation. SENSOR 2 - The second sensor reading or Notepad value to be used in the calculation. mA Inputs NAME - Name the input. UNITS - Set the units of measurement. NUMBER - Set the number range.
  • Page 26 Password ADMIN PASSWORD - The administrator password gives access to all menus except factory set up. USER PASSWORD - The user password allows the user to access HOME menus that are made available in USER SET UP. Date and Time Set Up DATE AND TIME - For setting the date, time, day, and week on the controller.
  • Page 27 History This menu is used to set the history “time stamp” interval, the water meter daily history starting hour, the alarm delay period and the USB history save format. INTERVAL - The amount of time between each history time stamp for probe readings. W/M HOUR - The time of day that the daily water meter history cycle is to start.
  • Page 28 History The onboard history allows for viewing the history of the probe readings, relay activations, key-pad activity, calibrations, water meter hourly and daily logs, and alarms for each system present. It is also where Notepad data is entered and reviewed. An initial overview page is displayed showing your current sample interval, the calculated number of days the unit can keep probe history for before losing the oldest.
  • Page 29 A unit may have up to 10 option auxiliary flow meter inputs. These additional inputs are for tracking various flow meter devices like Advantage Controls’ FloTracker in a metering pump’s discharge tubing. They can also be linked to a system’s water meter input for additional tracking and alarm capabilities.
  • Page 30 Relays STATUS - Allows for viewing accumulated relay ON times, temporary forcing relays ON or OFF or seeing which relay is on. RESET - Allows the accumulated run time of a particular relay to be reset to zero. FORCE - Allows a relay to be manually forced ON or OFF for a single event from 0-999 minutes.

  • Page 31: Maintenance

    VI. Maintenance The only required maintenance for normal uninterrupted operation of your MegaTron MT controller is cleaning of the electrode(s). After initial startup, it is a good idea to clean the electrode frequently until a schedule based on need has been developed. Since each application is unique, it is difficult to estimate the required frequency of cleaning.

  • Page 32: Warranty & 30 Day Billing Memo Policy

    VII. Advantage Controls’ Product Warranty Advantage Controls warrants control systems of its manufacture to be free of defects in material or workmanship. Liability under this policy extends for 24 months from the date of installation. Liability is limited to repair or replacement of any failed equipment or part proven defective in material or workmanship upon manufacturer’s examination.
  • Page 33 Common boiler blowdown valve connections. N.C. N.O. COM (1 - WHITE) N.O. (2 - BLACK) GND ( - GREEN) SOLENOID VALVE (TOP VIEW) MBWB 1036 MOTORIZED BALL VALVE (SIDE VIEW) MBWA 1075 BLOWDOWN VALVE (TOP VIEW) Card Slots (H11, H12) Wiring for Comm.
  • Page 34 Pyxis STA-500 and other single mA output sensors Wiring for Card Slots MegaTron MT (H11, H12) Comm. Note: Refer to Jumper Block full manual for additional information Spare Power Cable Relay Card Outputs 11-15 16-20 6-10 Input 1 - Incoming Power Input 1 + GREEN (-4-20) WHITE (+4-20)
  • Page 35 Pyxis STA-525 series sensors Wiring for MegaTron MT Jumper Block Note: Refer to full manual for additional Spare Power information Pyxis changed the wiring on the 525 Wiring for STA-525 (and H) serial numbers under series of sensors 220011 Cable in late 2022 so that Wiring for STA-525SS serial numbers under 210086 there is not a -4-20...
  • Page 36 Pyxis STA Dual Output Sensors Wiring for Card Slots MegaTron MT (H11, H12) Comm. Jumper Block Note: Refer to full manual for Spare Power additional information Jumper between Cable Input 1 - and Input 2 - Input 2 - Input 2 + PINK (+4-20) Input 1 - Input 1 +...
  • Page 37 MegaTron wiring for Autotrol Turbine Meters MegaTron MT 1” METER = 65 PULSES / GALLON 2” METER = 15 PULSES / GALLON Card Slots (H11, H12) Note: Use 22 AWG (.76 mm) Comm. twisted pair shielded wire Jumper Block for all of these low voltage signal connections.
  • Page 38 CABLE-7P-2A Wiring a Nano-M to a MegaTronMT, or *Other Building Management System Note: Refer to full manual for Card Slots (H11, H12) additional information Comm. Jumper Block Spare Power Incoming Power Cable Relay Card Outputs 11-15 16-20 6-10 BLACK (ground)
  • Page 39 - Notes -...
  • Page 40 Get the Advantage in Water Treatment Equipment Advantage Controls can give you the Advantage in products, knowledge, and support for all of your water treatment equipment needs.  Cooling Tower Controllers  Boiler Blow Down Controllers  Blow Down Valve Packages  Solenoid Valves...
