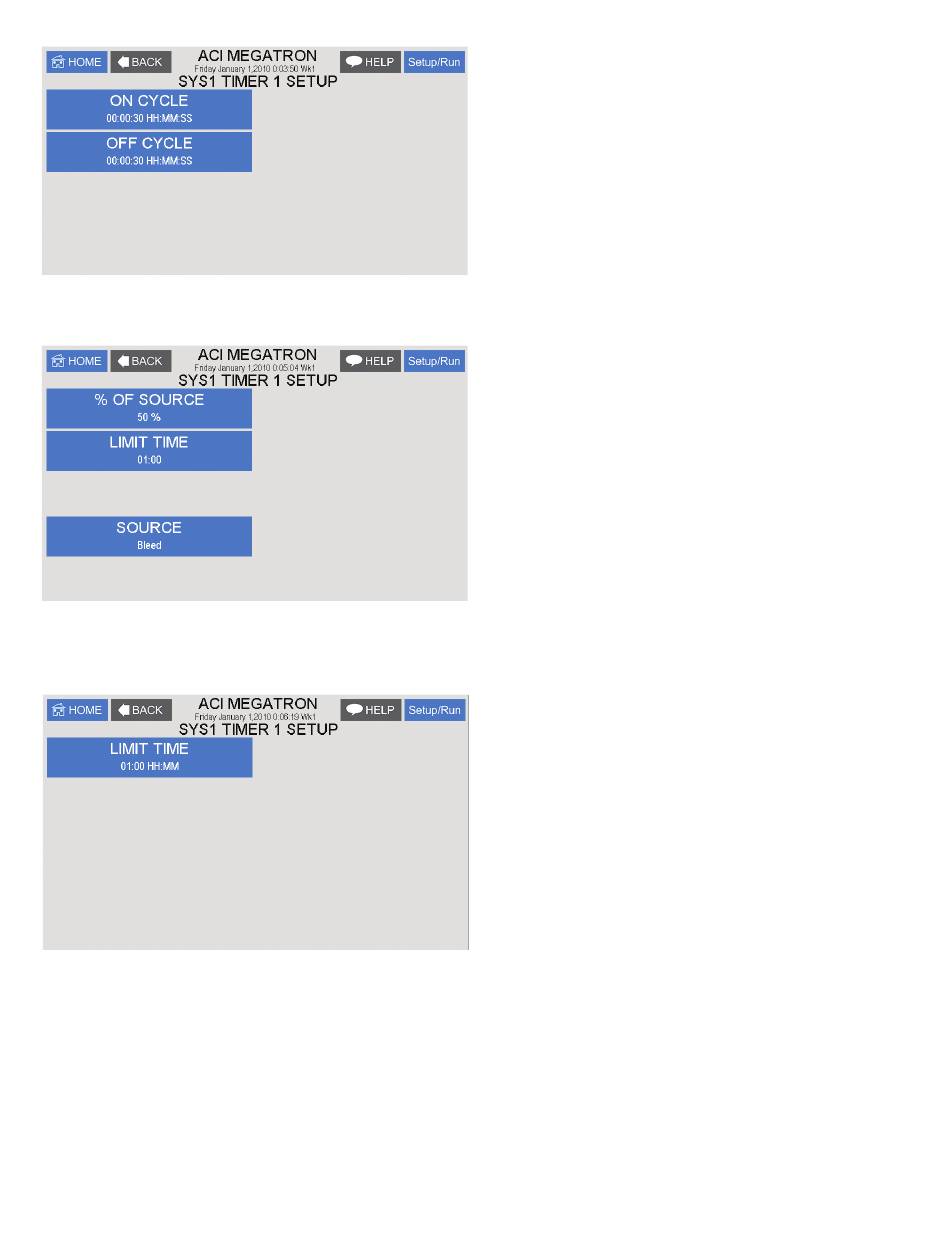

2.7.d. Recycle Timer
2.7.e. Post Bleed Timer
2.7.f. With Bleed Timer
ON CYCLE - The amount of the defined time that the
timer is to be on.
OFF CYCLE - The amount of time that the cycle will
be off.
ON/OFF TIMER - This is the displayed countdown of
time for the cycle the timer is in.
% of SOURCE - The % of the post bleed time or other
source time that you want the timer to run.
LIMIT TIMER - The limit timer is a safety feature that
limits a single feed cycle to the amount of time set,
regardless of the calculated post feed %.
SOURCE - Select between cond. bleed, another timer
or digital input as the time source.
LIMIT TIMER - This timer starts when the conductivity
bleed starts and turns off when the bleed stops or until
the limit time has been reached. The time can be set
in MM:SS.
