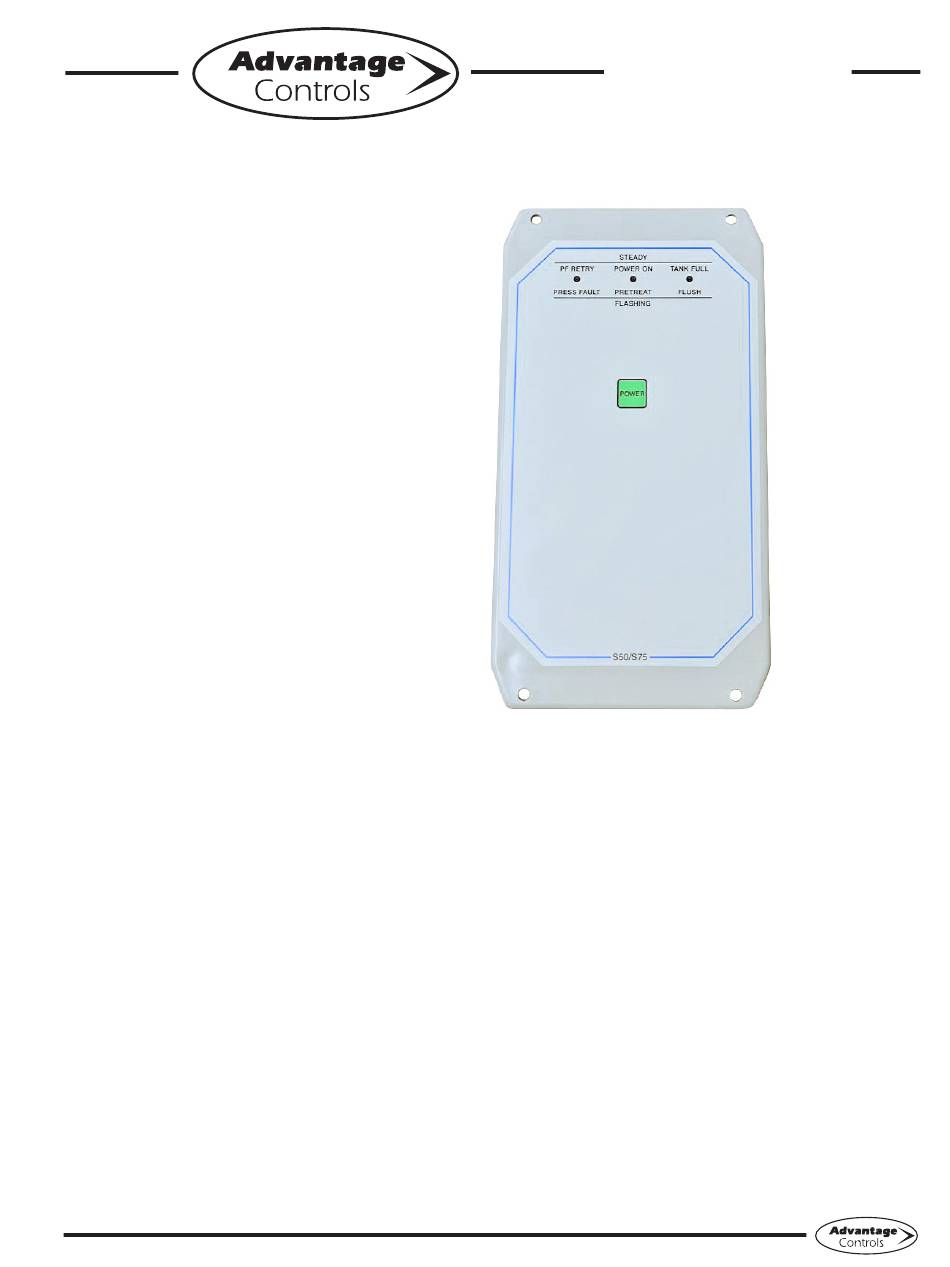

- Page 1 Manual Series 75 Controller Installation Maintenance Repair Manual Advantage Controls 4700 Harold-Abitz Dr. Muskogee, OK 74403 Phone: 800-743-7431 Fax: 888-686-6212 www.advantagecontrols.com email: support@advantagecontrols.com 01/2021...
- Page 2 Series 100 Controller Manual Table of Contents Contents Page Introduction ................3 Installation ..................3 Quick Connect Terminal Wiring ..........4 III. System Operation ..............5 Warranty and Factory Service Policies ........6...

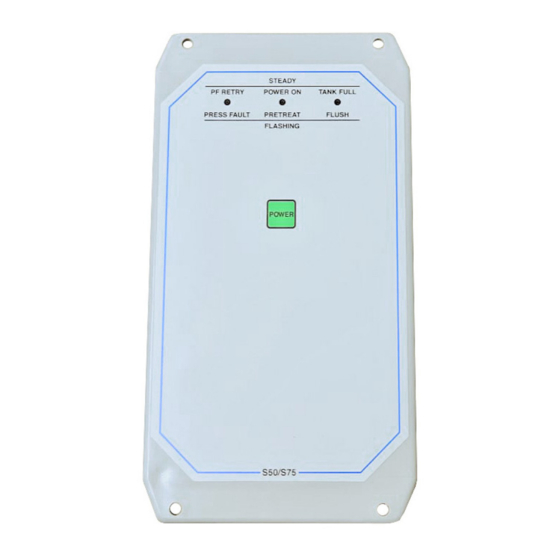

- Page 3 Introduction The Advantage Controls Series 75 RO controller is designed for the small commercial Reverse Osmosis system. This controller incorporates relay outputs and dry contact inputs to either run or shutdown as necessary for proper operation. The S75 Controller has up to three relay outputs: inlet solenoid valve, RO pump motor, and an optional flush solenoid valve.
- Page 4 Quick Connect Terminal Wiring TANK FULL PRE-TREAT PRESSURE FAULT 12 P11 SWITCH INLET FLUSH MDA 20A INLET RO PUMP FLUSH POWER 120/240 VAC 120 / 240 VAC RO PUMP INLET FLUSH POWER IN VALVE VALVE CAUTION 1. There are live circuits inside the controller even when the power switch on the front panel is in the OFF position.
- Page 5 III. System Operation When the power switch is turned ON, the center status LED will flash Green, the inlet valve will OPEN and the RO pump will START. The center LED will be solid Green for normal run. Under normal operation the RO unit will run until: (A) the storage tank is full (left status LED Amber) or (B) Pretreat lockout has occurred (center status LED Flashing Green).
- Page 6 Manufacturer’s Product Warranty Advantage Controls warrants to the original purchaser that the products it manufactures will be free from defects in material and workmanship for a period of twelve months from the date of shipment on parts and ninety days on labor. Some non-Advantage manufactured resale items may have warranty periods less than twelve months.
- Page 7 Get the Advantage in Water Treatment Equipment Advantage Controls can give you the Advantage in products, knowledge and support on all of your water treatment equipment needs. Cooling Tower Controllers Boiler Blow Down Controllers SET UP ENTER HOME Blow Down Valve Packages...
