Advantage Controls MegaTronMT Installation Maintenance Repair Manual page 36

Pyxis STA Dual Output
Sensors

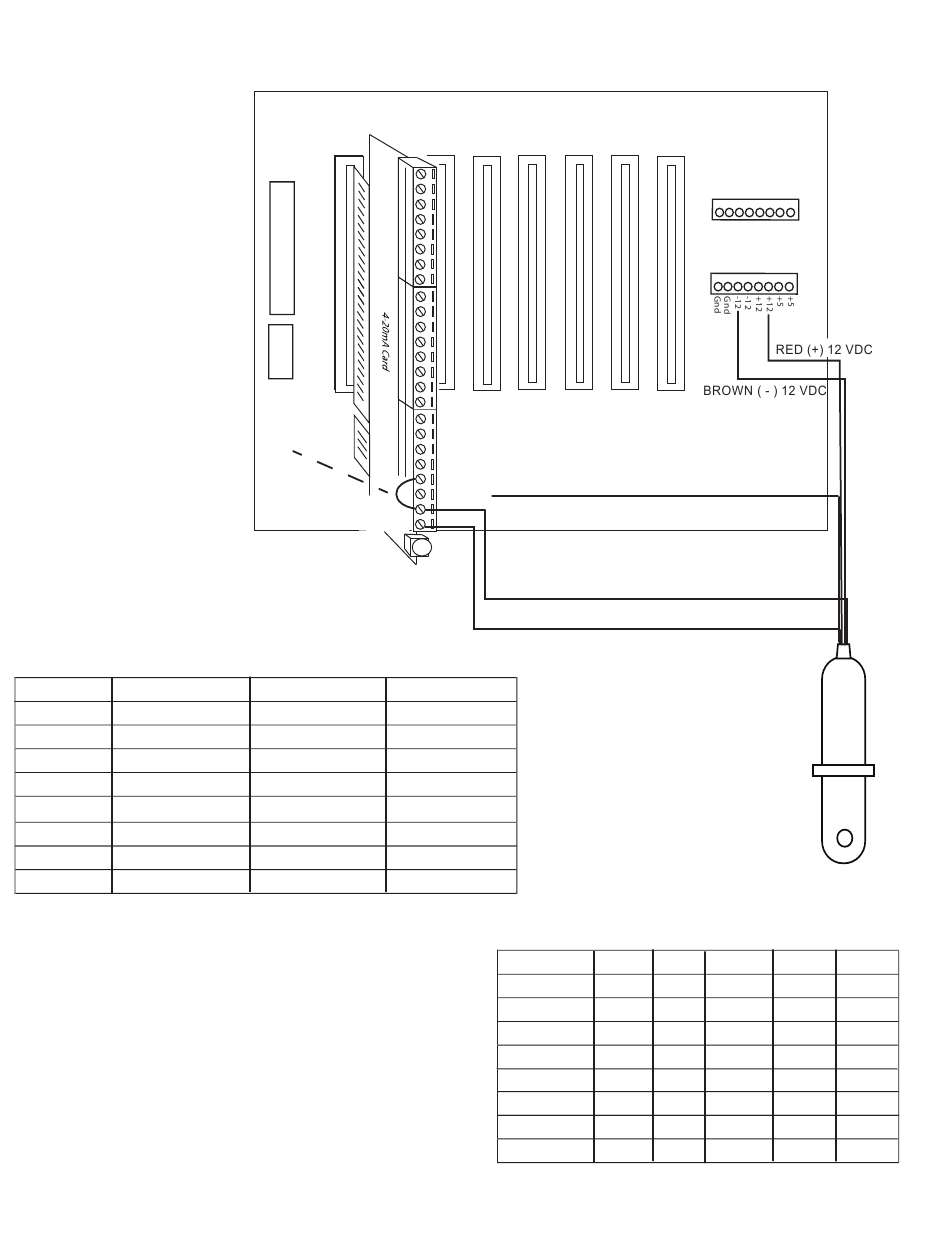

Wiring for
MegaTron MT
Note: Refer to
full manual for
additional
information
Jumper between
Input 1 - and Input 2 -
- 588 Tagged Polymer & PTSA
- FCLSS Free Chlorine & pH (765)
- CLOSS Chlorine Dioxide & pH (765)
- 772TP Dissolved Oxygen & temp
Controller Wiring
Wire Color Designa�on 588
Red
12 VDC +
Brown 12 VDC -
White Polymer 4-20mA+
Pink PTSA 4-20mA+
Gray* 4-20mA -
Blue RS-485 A
Yellow
RS-485 B
Green RS-485 C, ground
*Internally connected to power ground
** Pyxis 765SS sensor
LED
Cable
Input 1 -
Input 1 +
FCLSS & CLOSS** 772TP
12 VDC + 12 VDC +
12 VDC - 12 VDC -
Oxidizer 4-20mA+ DO 4-20mA+
pH 4-20mA+ Temp 4-20mA+
4-20mA - 4-20mA -
RS-485 A RS-485 A
RS-485 B RS-485 B
ground ground
Card Slots
Input 2 -
Input 2 +
LED
GRAY (-4-20)
WHITE (+4-20)
Controller Settings
Sensor Name
588 #1
Poly
588 #2 PTSA
FCLSS #1 FCL2
FCLSS #2 pH
CLOSS #1
CLO2
CLOSS #2 pH
772TP #1 DO
772TP #2 Temp
36
(H11, H12)
Comm.
Jumper Block
Spare Power
PINK (+4-20)
Units #-Units
MIN
XX.XX 00.00
PPM
XXXX.X 000.0
PPB
PPM X.XXX
0.000
XX.XX 00.00
X.XXX 0.000
PPM
XX.XX
00.00
PPM XX.XX
00.00
F XXXX.X 032.0
MAX
20.00
200.0
5.000
14.00
5.000
14.00
20.00
122.0
