Advantage Controls MegaTronMT Installation Maintenance Repair Manual page 33

SOLENOID VALVE
(TOP VIEW)
LD2
Wiring for
MegaTron MT
Refer to
manual for
additional
information
BROWN (-4-20)
ORANGE (+4-20)
Note: The brown wire to the mA input (-)
may be green instead of brown on some
cables.

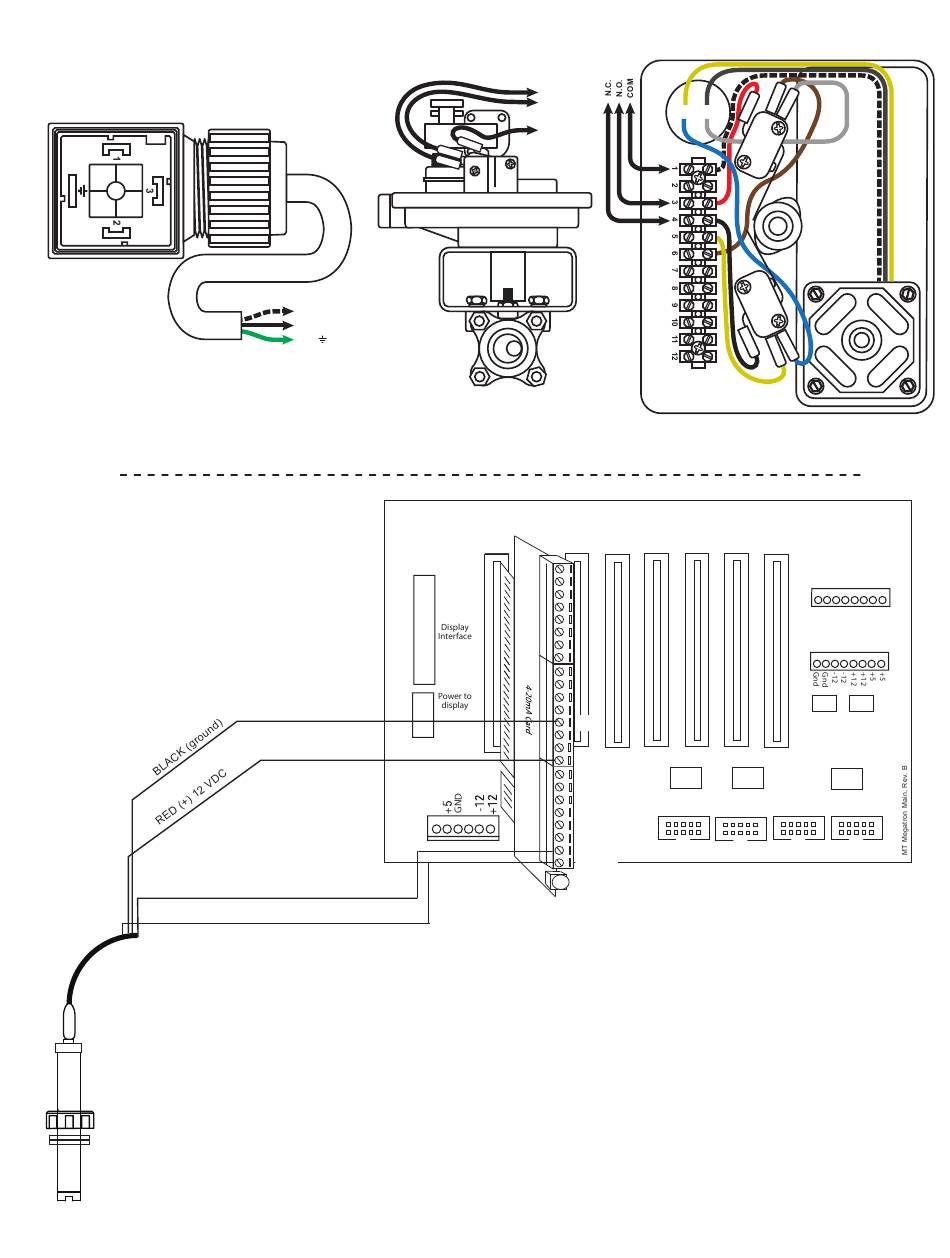

Common boiler blowdown valve connections.
COM (1 - WHITE)
N.O. (2 - BLACK)
GND ( - GREEN)
MBWB 1036 MOTORIZED BALL VALVE
N.C.
N.O.
COM
(SIDE VIEW)
Card Slots
-12
+12
LED
Cable
Input 1 -
Input 1 +
LED
33
MBWA 1075 BLOWDOWN VALVE
(TOP VIEW)
(H11, H12)
Comm.
Jumper Block
Spare Power
Relay Card Outputs
1-5 11-15 16-20
6-10
