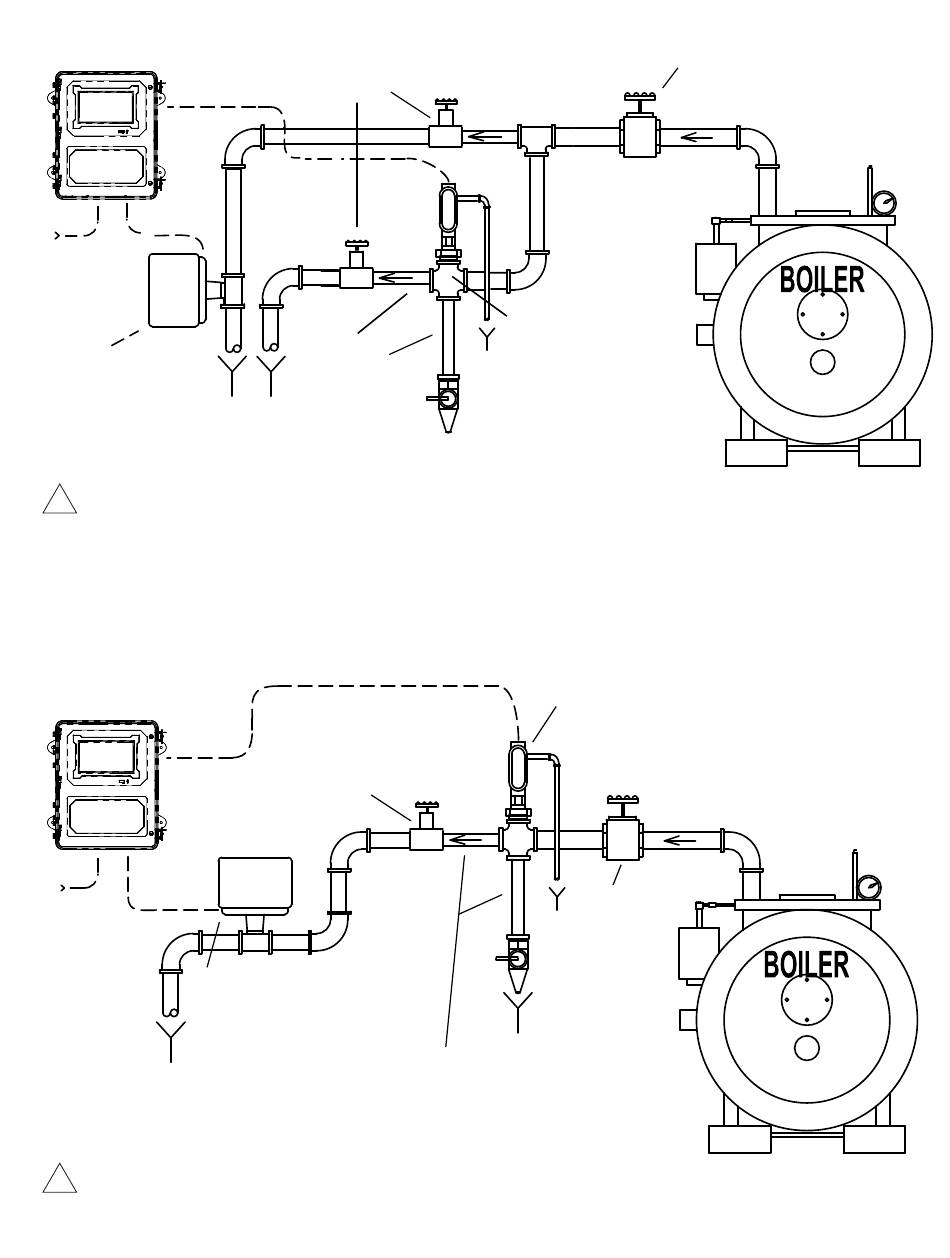

Typical Continuous Sampling Installation
Electrically
actuated
blow down
valve
Warning - Do not use on bottom blowdown lines, only continuous or surface blowdown lines.
!
Typical Timed Sampling and Sample and Hold Boiler Installation
Electrically actuated
blow down valve
To drain
Warning - Do not use on bottom blowdown lines, only continuous or surface blowdown lines.
!
Throttling device
1/2" pipe
between probe
and throttle
device and
flush valve
Throttling device
within 24" past probe
1/2" pipe between
probe and throttle
device and to the
flush valve
Electrode within a 1"
cross with electrical
connection vented
Electrode within a 1"
cross with electrical
connection vented
Fully ported
gate or ball
valve
11
Fully ported
gate or ball valve
1" Continuous
blow down line
1" Continuous
blow down line
