Firebricks installation

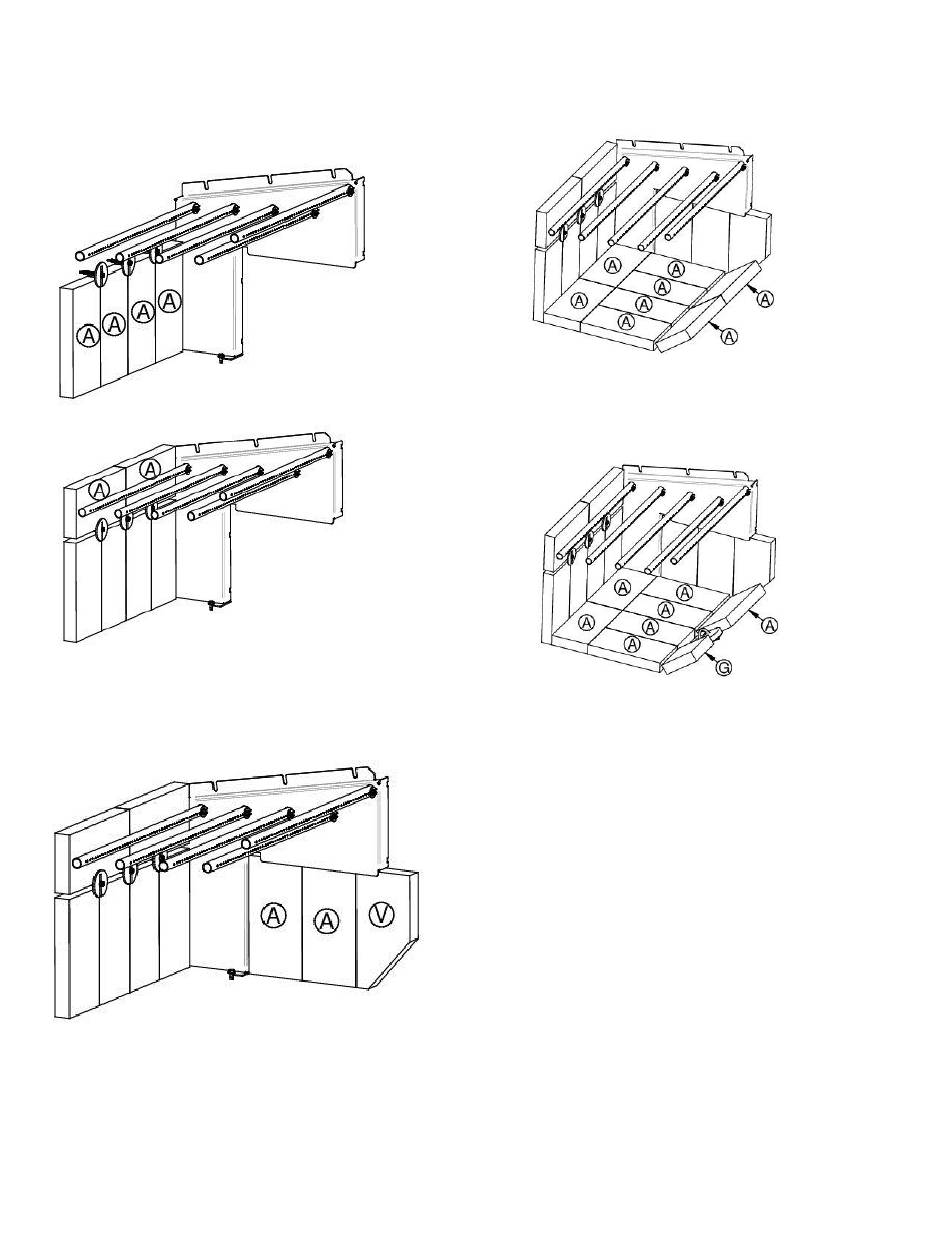

Back firebricks installation

1) Place 4 bricks «A» at the bottom.
2) Put the 3 brick screws in the hole and for this purpose Do
not tighten up these screws too much, so that washers will
be easily installed.
3) Add 2 bricks «A» horizontally on the 4 bricks.
4) Tighten the 3 bricks screw.

Side firebricks installation

1) Put 2 "A" bricks between the right corridor and the door and
1 "V" brick.
2) Repeat the steps before for the other side.
PR_I028/2023-08-08-EN
Floor firebricks installation (without ash
plug)
1) Put 8 bricks «A» in the bottom as shown in the picture.
Floor firebricks installation (with ash
plug)
1) Put 7 bricks «A» and 1 brick« G » in the bottom as shown
in the picture.
