Chimney connector installation

The chimney connector is a set of single wall flue pipes and
elbow installed between the stove collar and the chimney collar.
Components of single wall chimney connector are available at
any hardware store and there is no precise standard or
regulation. However, some rules must be followed to install solid
fuel burning equipment.
•
Single wall chimney connector
For the single wall chimney connector, you must use
the connector of 6 inch diameter with a minimum
thickness of 24 gauge (0.025 inches 0.64 mm).
ATTENTION:
•
Any horizontal section must be sloping upwards
1/4 inches (6.35 mm) by feet (30 cm) toward the
chimney collar. This section should not exceed
36 inches (91,4 cm).
•
The clearance between the roof and the single wall
chimney connector must be 18 inches (45.7 cm) or
more.
Assembly of connecting parts
1. Make a brief installation of all sections and elbows (if
necessary) to ensure that you respect the clearances and
inclinations of the horizontal sections. You must also verify
if you have all the necessary parts for final installation.
o
For direct vertical installation, you will need:
▪
1 x vertical section of 24 inches (61 cm) or
more
▪
1 x adequate length of telescopic chimney
part allowing you to connect the last chimney
connector section to the chimney collar.
Note: For higher roof, more parts might be needed.
o
For horizontal installation, you will need
▪
1 x vertical section of 24 inches (61 cm) or
more
▪
1 x 90° elbow
▪
1 x adequate length of telescopic chimney
part
Note: For better performance, two 45 degree elbows with
or without straight section in between are preferable.
2. Disassemble the whole thing and start screwing the pieces
from the stove to the roof chimney collar.
PR_I028/2023-08-08-EN

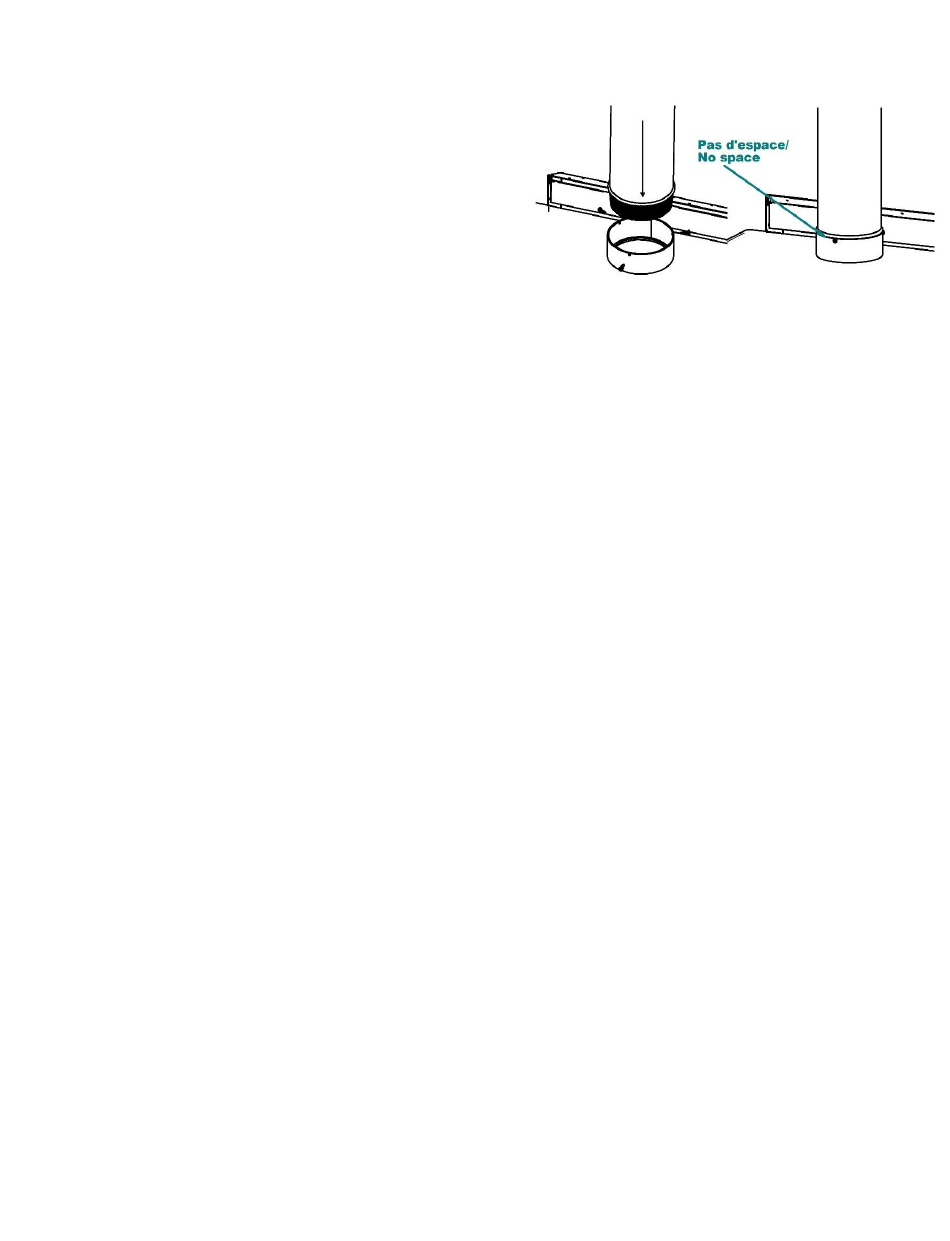

3. Insert entirely the roll formed end into the stove collar and
screwing it with a minimum of 3 screws.
WARNING: It is mandatory to screw the pipe to the
stove collar and also at each joint with a minimum of 3
screws.
4. Install all the next section up to the chimney support collar
and make sure to attach all parts with at least 3 screws.
DO NOT CONNECT THIS APPLIANCE TO A CHIMNEY
SERVING ANOTHER APPLIANCE.
CONNECTOR PIPES SHOULD NEVER GO ACROSS A
CEILING, WALLS, A CLOSET, AN ATTIC OR OTHER
ENCLOSED AREA THAT
BUILDUP.
COMBUSTIBLE MATERIAL, MAKE SURE THAT YOUR
INSTALLATION COMPLIES WITH CAN / CSA-B365.
