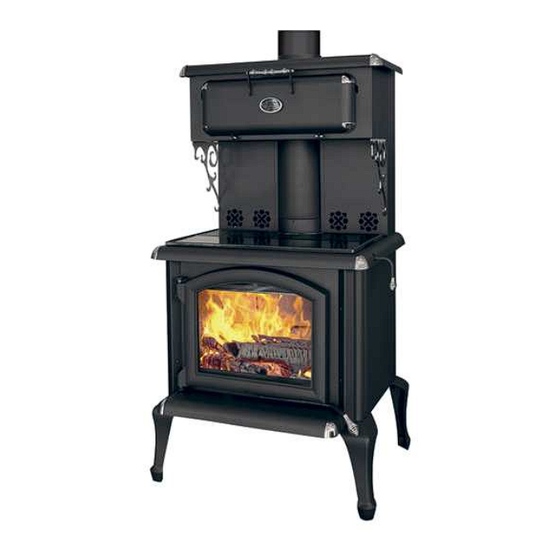

- Page 1 Instruction Manual FORGERON CUISINIERE FORGERON CAN/ULC S627-M00 UL 1482 CAN/CSA STD B415.1-10 490, rue de l'Argon Quebec, CANADA G2N 2C9 Tel.: 418-849-8095 Fax : 418-849-0077 March 1 , 2015...
-
Page 2: Table Of Contents
External combustion air source........... 21 Exterior Air Intake pipe............21 Parts that can be replaced ..........29 J. A. ROBY LIMITED LIFE WARRANTY ......30 Installation of Air Intake Pipe........... 21 Air Inlet Obstruction ............21 March 1... -
Page 3: Introduction
Read all instructions carefully before install your new J. A. ROBY wood stove. A good installation is very important for a safe and effective use of J. A. ROBY INC stove. In the doubt about the instruction step to install your appliance correctly, we suggest to call a professional master installer. -
Page 4: Nameplate
Nameplate. March 1 , 2015... -
Page 5: Appliance Dimensions
Appliance Dimensions. Figure 1 March 1 , 2015... -
Page 6: Installation
Installation. Floor protection. Your stove must be installed on a non-combustible material plate to protect the floor and avoid fire would be caused by: • Projections of sparks when door opening or loading logs • The heat radiation when stove runaway should have an ignition to the floor and the coating. •... -
Page 7: Clearances Of The Stove Until The Floor Plate Protection
Clearances of the stove until the floor plate protection. The following dimensions are the minimums values and it can be higher. Canada: • 8 in (20.3 cm) behind • 8 in (20.3 cm) beside • 18 in (45.7 cm) in front of the door opening. United States: •... -
Page 8: Minimums Clearances To The Non-Combustible Material
Minimums clearances to the non-combustible material. With these reduced clearances, this appliance take a minimum of space where is installed. Whether in the living room or the dining room, the Cook stove will complete your decorate by his originality and heating, it requires a minimum clearance of 12 inches to the back (for a smoke simple pipe with a heat shield ) and a 18 inches lateral MINIMUM clearance. -
Page 9: Assembly Before Installation
For the smoke double pipe, you must remove the pre-cut metal Assembly before installation According to chosen option, to save more storage space and shipping. The stove leg and warmer couldn’t be assembled in the shop, you must assembly before install the cooker stove. Legs installation. - Page 10 Fix the left side. Fix the top with the back and with the front too. Fix the right side. Fix the left decorative panel side and finish to install the left chrome decoration Fix the front (with the door) with the two sides and the back.
-
Page 11: Fan And Snap Disc Box Installation
Put and fix the warmer with the 6 holes of each side to the cook stove. Screw snap disc box into the holes made for that at the back side near the vent box. Fan and Snap disc box installation. WARNING: NEVER ROUTE POWER CORD UNDER OR IN FRONT OF THE APLIANCE Screw fan putting electrical wire in the centered... -
Page 12: Firebricks Installation
Firebricks installation. Screw the brick screw and insert split washer. Back firebricks installation. Put 4 bricks «A» and 1 brick «C» to the middle Tighten the screws on the air corridor Repeat the 3 steps before to make the other side of the stove. - Page 13 Put two half metal disk over the rockwool near the rear Firebricks installation on the pipes. deflector already in place. The firebricks must be put on the 4 pipes from the bottom of combustion chamber. Bricks keep a maximum of heat inside the combustion chamber and help the air ratio to burn the most of wood pollution gas made by wood steam and wet wood.
-
Page 14: General Stove Installation Steps
Put the stove directly on the floor aligned vertically with General stove installation steps. the center of chimney, and trace the side of the stove Read the entire owner and installation manual before on the floor and remove it. install and use your stove. Trace the protection floor at 8 inches (20.3 cm) offset Chose a spot where to install your cook stove. -
Page 15: Chimney Connector Installation
(25.4 mm) offset. installation codes for wood heater. • Double wall chimney connector. Your J. A. Roby cook stove was design and tested with a ATTENTION: single wall chimney connector but it is possible to install a 6 •... - Page 16 Insert entirely the roll formed end into the stove collar and screwing with minimum screws. WARNING: It is mandatory to screw the pipe to the stove collar and also at each joints with a minimum of 3 screws. Install all the next section up to the roof chimney support and don’t forget to screw the chimney connector to the roof support collar.
-
Page 17: Mobile Home Installation
• Cap with spark arrester Mobile home installation. • Firestop. DANGER: DO NOT INSTALL IN SLEEPING ROOM. • Chimney ceiling support • Decorative collar. WARNING: THE STRUCTURAL INTEGRITY OF THE If the chimney exit by a wall and the bottom are MOBILE HOME FLOOR, WALL, AND CEILING/ROOF MUST less than 7 feet (213 cm) over the ground level. -
Page 18: Chimney Installation, General Steps
• The chimney must be over 36 inches (91.4 Chimney installation, General steps cm) over the higher point into the roof Use only approved chimneys. The same size as the output opening. collar. 6 inches in this case. The chimneys used must be tested •... -
Page 19: Outside Vertical Installation
Outside Vertical Installation. Cathedral Vertical Installation The wood appliance must be installed in accordance with the The wood appliance must be installed in accordance with applicable local laws or the CAN/CSA-B365, NFPA211 (USA) the applicable local laws or the CAN/CSA-B365, NFPA211 norms. -
Page 20: Vertical Installation
Vertical Installation The wood appliance must be installed in accordance with the applicable local laws or the CAN/CSA-B365, NFPA211 (USA) norms. Follow the chimney manufacturer’s instructions to install the chimney.. March 1 , 2015... -
Page 21: External Combustion Air Source
the cold air circulation into the stove when it is not in External combustion air source. service.) Plug the flexible air inlet pipe onto the damper section In conventional designed house, natural ventilation is enough and seal it. to operate the wood stove. Put a thermal resistant isolation onto the pipe if the In some new energy saving house, natural ventilation is not pipe is not isolated. -
Page 22: Stainless Steel Deflector Replacement
• Stainless steel deflector replacement. Install the new lateral support (#1,#4) • Install the new stainless steel deflector(#3) Add-on stainless-steel plate are used into combustion chamber to protect the steel from wear corrosion cause by extreme Install disassembled tube, rockwool and half round plate. temperature and extreme conditions into combustion chamber. -
Page 23: Stainless Steel Tubes Replacement
Stainless steel tubes replacement. Although the tubes are in stainless steel. With extreme temperature and conditions the tubes are eventually corroding and perforating by normal deterioration. They must be replaced by a new one to ensure performance of your stove. Stainless steel tubes Installation. -
Page 24: Operating Instructions
facilitate its adhesion with metal, do not heat the appliance with Operating Instructions a strong fire. It will also avoid thermal shock which could lift up the paint or make it whiten. Make sure that the room is ventilated enough in order to Primary and secondary air admission eliminate the odours and the smoke coming from the paint control. -
Page 25: Maintenance
• Far enough any combustible material. Maintenance. • Far enough any inflammable liquid and vapor. • Ash Removal. Enough long to be thoroughly cooled. If the ash are disposed of by burial in soil or otherwise locally The wood burning make some residual called ash and must be dispersed, they should be retained in the closed container until remove from the combustion chamber to help oxygen all cinders have thoroughly cooled. -
Page 26: Air Tighten Adjustment
The door is the mobile element that need a special attention. Close the door align it and lock it. Its tightness is primordial. One of the first signs of wear braided Tighten the upper hinge then align the washer with fiberglass rope is the white soot seems to stick on the glass the hinge support. -
Page 27: What To Do In Case Of Chimney Fire
Align the two fiberglass rope ends and put some high temperature latex between. Install the door if you uninstall it What to do in case of Chimney Fire. Contact your local authority to know what to do in case of Chimney fire. -
Page 28: Annexe 1
Annexe 1 Door assembly March 1 , 2015... -
Page 29: Annexe 2
Annexe 2 Parts that can be replaced • Bricks • Stove ceramic glass • Spring Handle • Stove Door • Fans • Flat fiber glass rope (around glass) • Round fiberglass rope • Ash Plug • Slotted Brick Washer To ordered parts call your stove seller representative. March 1 , 2015... -
Page 30: J. A. Roby Limited Life Warranty
WOOD BURNING STOVES & FIREPLACES J. A. ROBY’s warranty only applies to original buyer and is non-transferable. This warranty covers brand new products only, which have not been altered, modified nor repaired since shipment from factory. The products covered by this warranty must be manufactured after review date indicated at the bottom of page.
