Annexe 3

Installation of optional fan kits

460 CFMs fan kit (part #: VENT460 TH)

PR_I028/2023-08-08-EN
Revision : 10

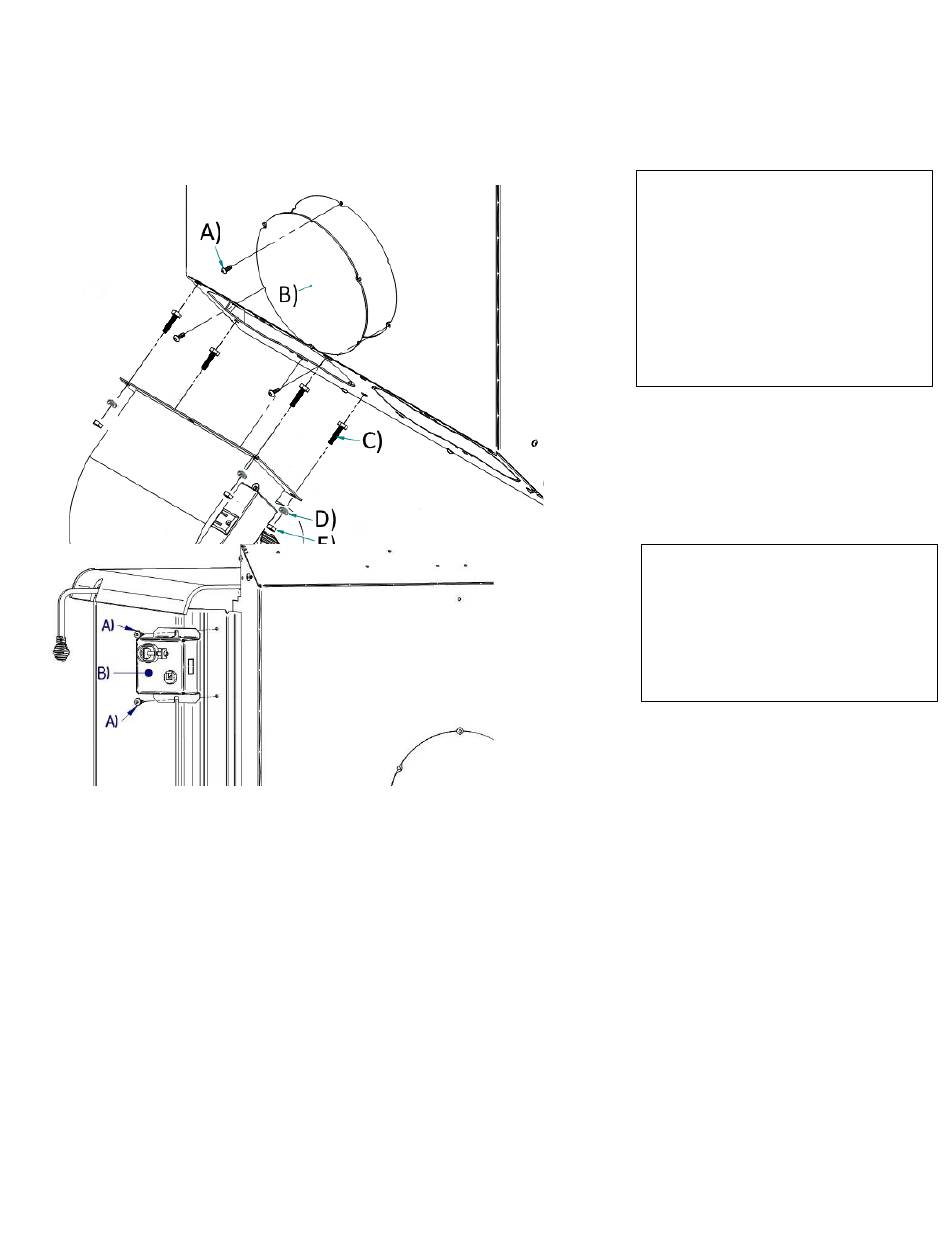

Step 1 : Remove the access panel (B) on
the back of the appliance by unscrewing /
untightening the 3 screws (A). Insert the 4
bolts (C) inside the fan housing at the
designated location by passing the hand
through the access opening. Take care of
putting the bolt's screwing part oriented
downward. Fastened the fan to the stove
with the 4 lock washers (D) and the 4 nuts
(E) provided with the fan kit as shown
hereby
Step 2: Install the fan kit's thermodisk
junction box (B) by screwing it to the
appliance with 2 screws (A) (included). The
thermodisk junction box should be located
on the back corner of the stove as in the
hereby picture. Connect the power cable
plug of the thermodisk junction box to the
power supply.
