Firebricks installation

Bottom firebricks installation

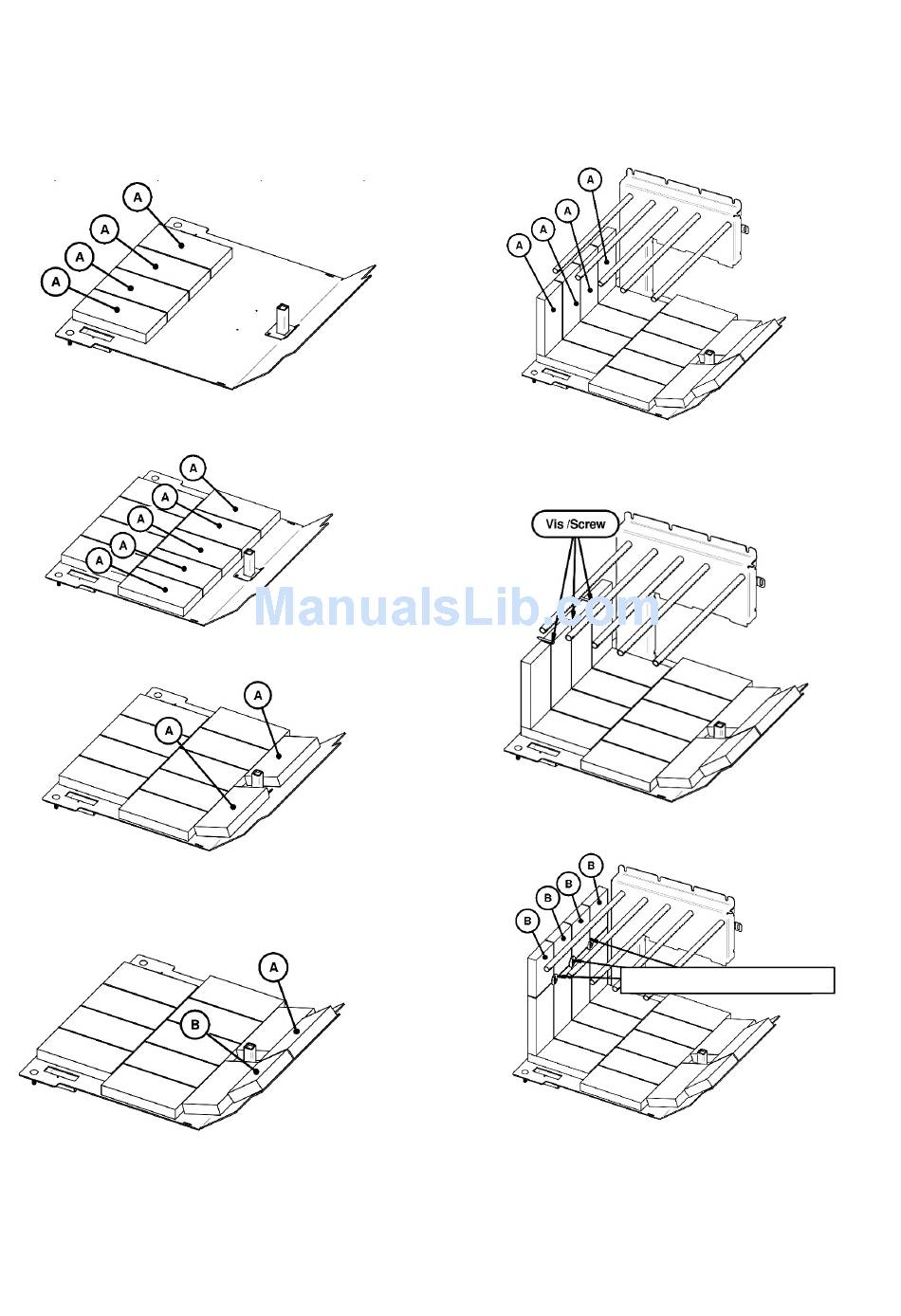

1) Put 4 bricks «A» in the bottom as shown in the picture
below.
2) After, insert 5 bricks «A» in front of the 4 bricks previously
placed.
3) Insert 2 brick «A» on both sides of the pilot.
4) Insert brick «A» on the right and «B» on the left to finish the
installation at the bottom.
November 5, 2015

Back firebricks installation

5) Put 4 bricks «A» against the back wall.
6) Put the 3 brick screws in the hole for this purpose and
tighten them loosely so that split washers can be insert
easily.
7) Add 4 bricks «B» horizontally on the 4 bricks «A» previously
placed.
Rondelles fendues / Split washers
8) To finish, put the split washers and tighten the screws.
.
