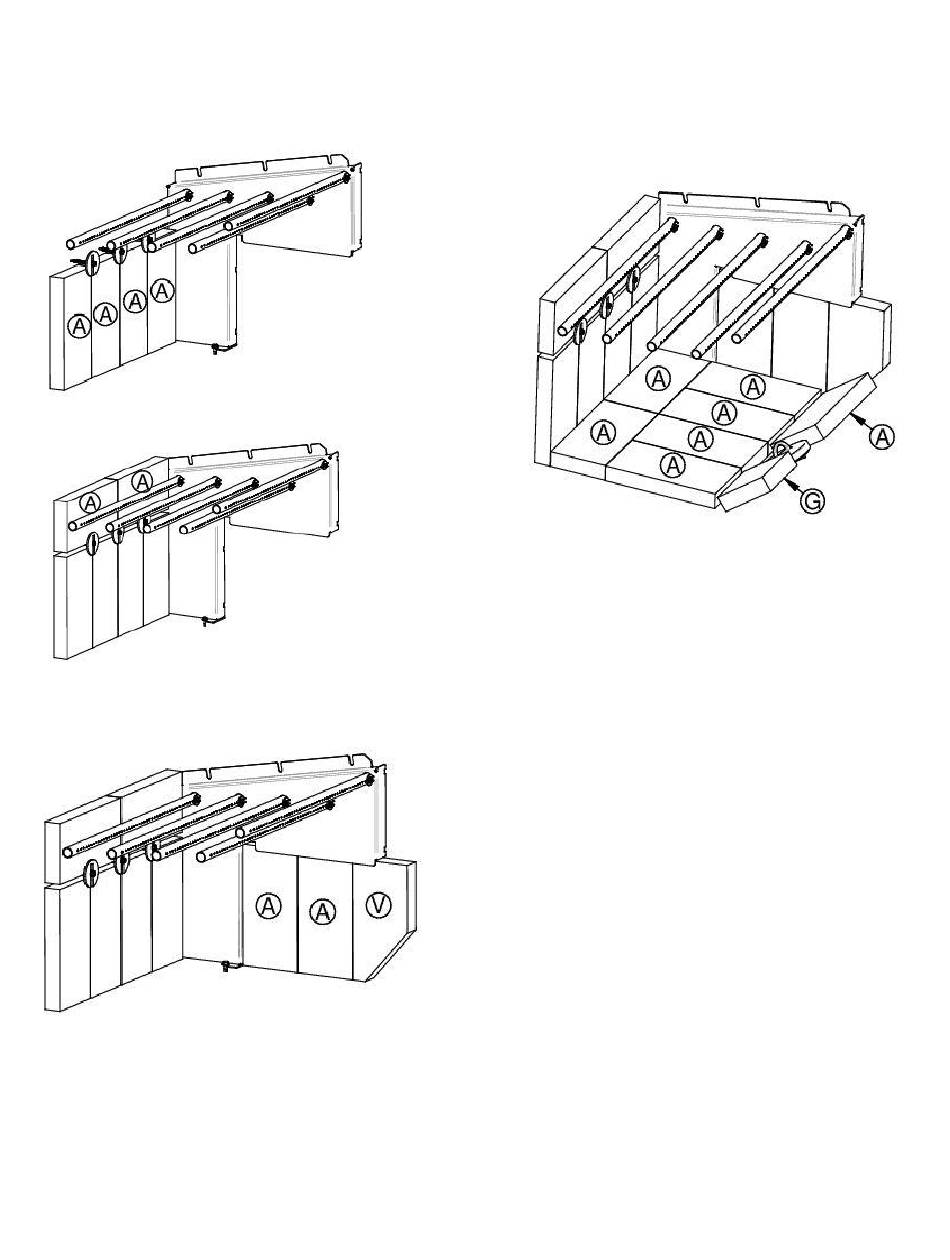

Firebricks installation

Back firebricks installation
1) Place 4 bricks «A» .
2) Set the 3 big screws in the holes for this purpose. Do not
tighten up these screws too much, so that washers will
be
3) Add 2 bricks «A» horizontally on the 5 bricks.
4) Tighten the 3 bricks screw.
Side firebricks installation
1) Put 2 bricks «A» and 1 angled brick «V» on the right hand.
2) Repeat the same thing to the other side.
PR_I004/2023-04-21-EN
easily installed.
Floor firebricks installation
1) Put 2 bricks «A» in the bottom as shown in the picture.
2) After, insert 4 bricks «A» in front of the 2 bricks previously
placed.
3) Insert 1 brick «A» on the right from the ash dump plug.
4) Insert 1 brick «G» on the left from the ash dump plug.
