WallBox without protections included:

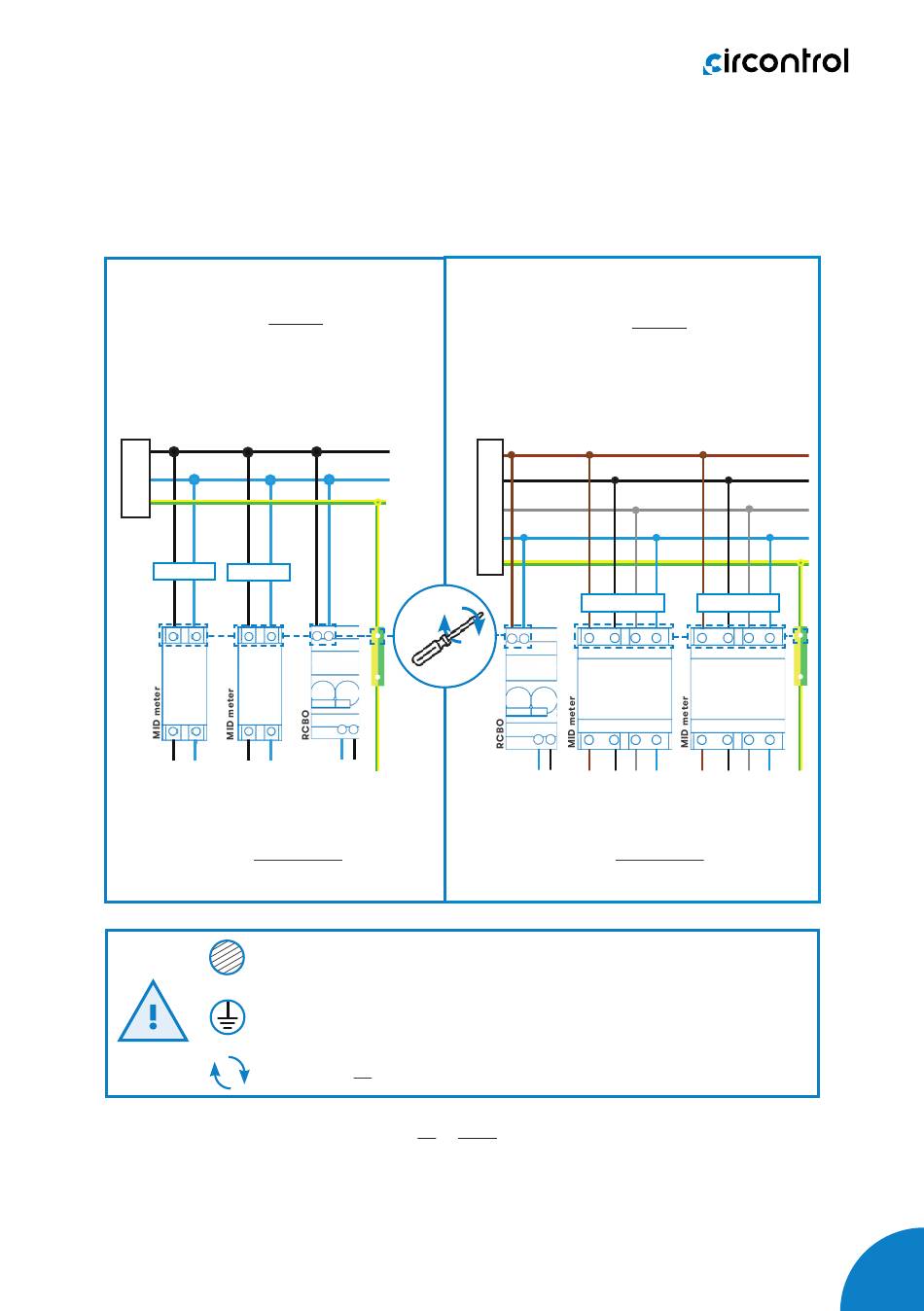

SINGLE-PHASE CHARGE POINT
• Connect to the 230VAC.
• The regulation IEC-61851-1 ed 3
indicates each plug shall have their
own protections upstream.
L
N
EP
Protections
Protections
One
Second
connector
Connector
• Use provided cable glands in order
to maintain the IP protection
S
Terminal block maximum cross-section: 35mm
Do not forget to connect the ground cable to the ground terminal
Make sure all screws are securely tightened at 4 - 5 Nm
Note: The proper earthing system must be TT or TN-S. The ground loop impedance measurement
for the entire installation must be less than 80 ohms; however, it could be even less if required
by national regulations. At least once a year it is recommended to carry out the verification of the
installation grounding by qualified personnel when the terrain is drier.
THREE-PHASE CHARGE POINT
•
•
L1
L2
L3
N
EP
Control
Circuit
•
Connect to the 400VAC.
The regulation IEC-61851-1 ed 3
indicates each plug shall have their
own protections upstream.
Protections
One
Control
connector
Circuit
Use provided cable glands in order
to maintain the IP protection
2
Protections
Second
connector
