Wallbox eVolve Series - Installation Manual
G

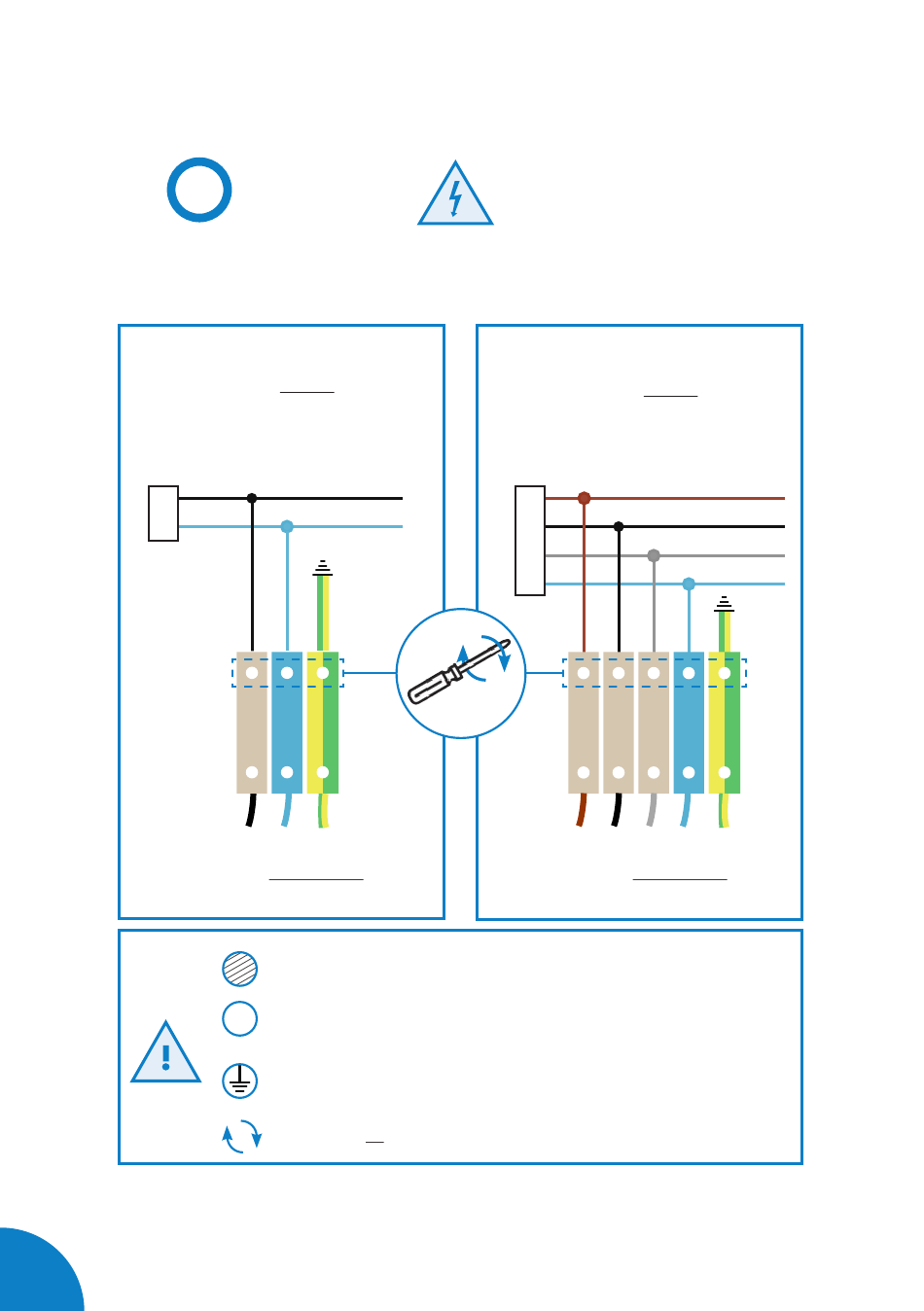

WallBox with protections included:
SINGLE-PHASE CHARGE POINT
• Connect to the 230VAC.
L
N N
• Use provided cable glands in order
to maintain the IP protection
18
Wiring
S
Terminal block maximum cross-section: 35mm
Type of cable allowed by the terminal block: Aluminium & copper
Al/Cu
Do not forget to connect the ground cable to the ground terminal
Make sure all screws are securely tightened at 4 - 5 Nm
THREE-PHASE CHARGE POINT
• Connect to the 400VAC.
• If the Power Supply is Single-
Phase, connect L1 and N.
L1
L2
L3
N
• Use provided cable glands in order
to maintain the IP protection
