F
Connections

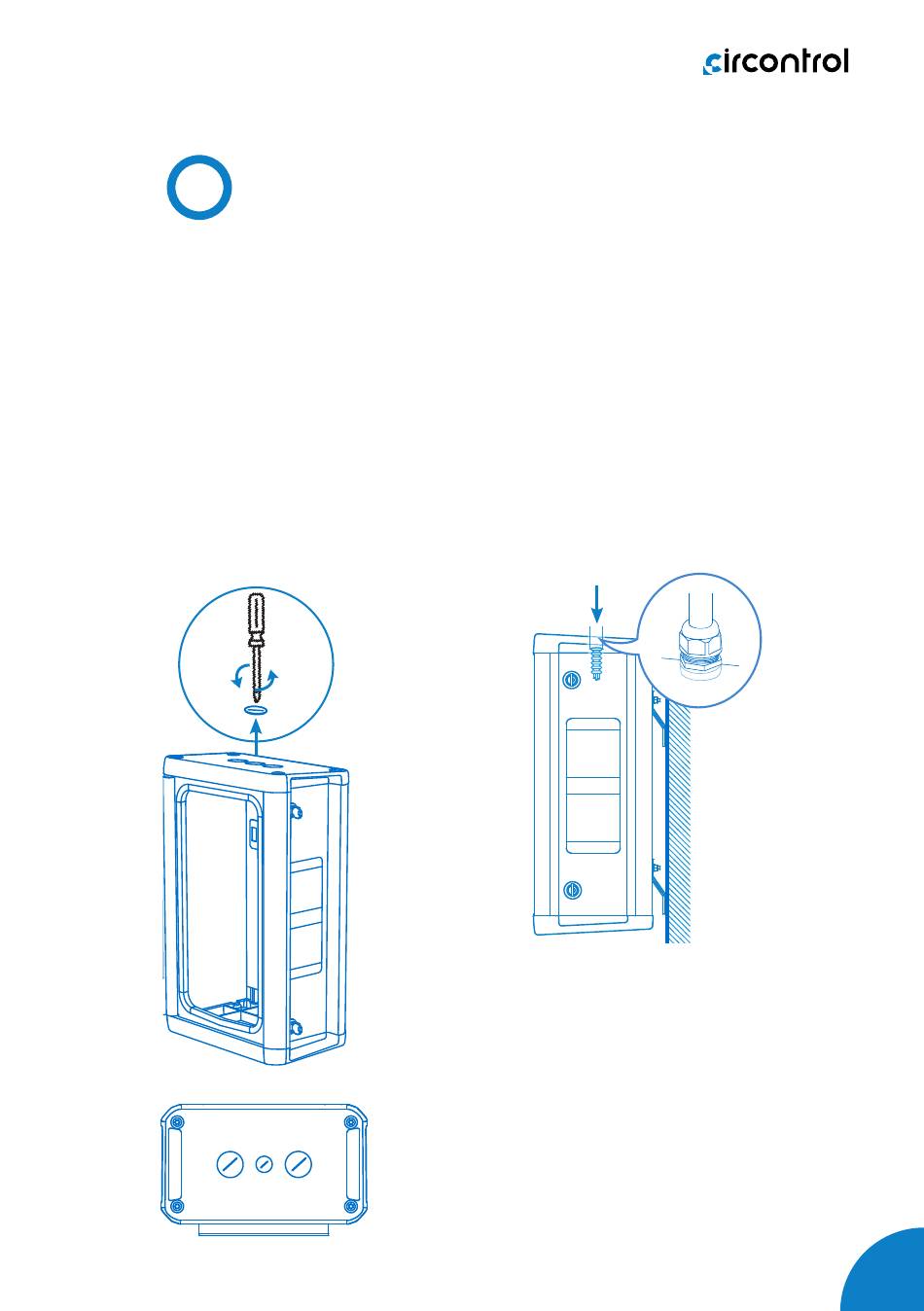

Introduce connections into the Charge Point:
1.
Remove one or two of the upper or lower plugs that fit your electrical connection (A or B)*.
2.
Put your electrical connections inside the Charge Point. Put the cable gland according to
the chosen plug.
Put your communications connection inside the Charge Point. Consult
the user manual of each model for correct installation.
1
A
A
B
A
A
B
Upper
Lower
A
B
A
2
A
A
B
(*) A: M40 x 1.5
B: M20 x 1.5
17
