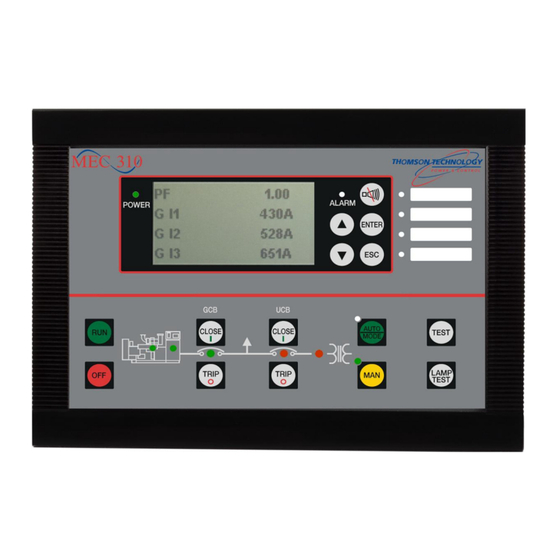

THOMSON MEC 310#GENSET CONTROLLER OPTION J-CANBUS J1939 Manual
Genset controller option j – canbus j1939
Hide thumbs
Also See for MEC 310#GENSET CONTROLLER OPTION J-CANBUS J1939:
- Installation and operation manual (119 pages)
Table of Contents
Related Manuals for THOMSON MEC 310#GENSET CONTROLLER OPTION J-CANBUS J1939
Summary of Contents for THOMSON MEC 310#GENSET CONTROLLER OPTION J-CANBUS J1939

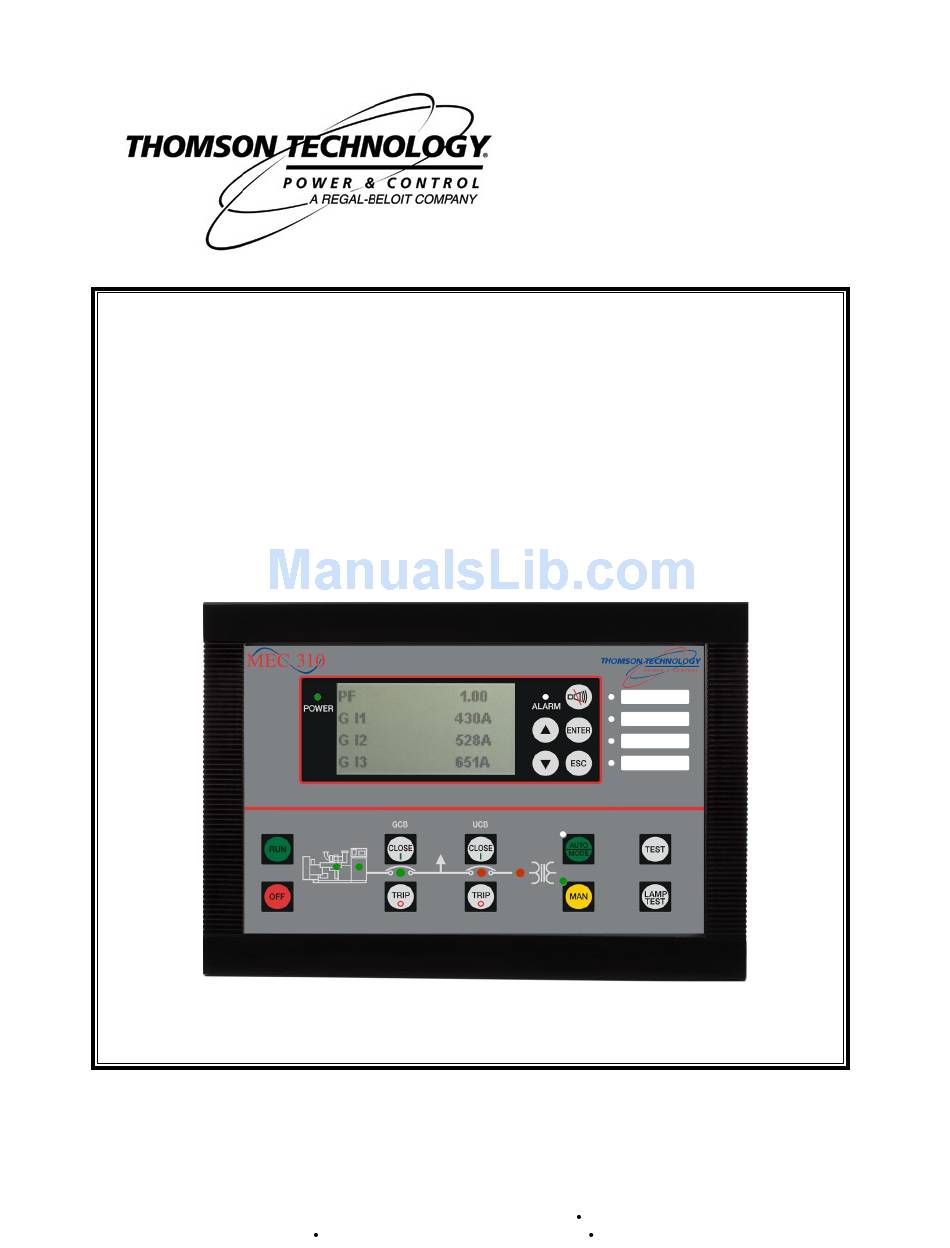

- Page 1 MEC 310 GENSET CONTROLLER Option J – CANbus J1939 r. 0474G PM077 Rev 1 09/08/20 9087A – 198 Street, Langley, BC Canada V1M 3B1 Telephone (604) 888-0110 Telefax (604) 888-3381 E-Mail: info@thomsontechnology.com www.thomsontechnology.com...
- Page 2 This description of options covers the following products: MEC 310 FW version 1.2X.X...
-
Page 3: Table Of Contents
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Table of Contents WARNINGS AND LEGAL INFORMATION ..................1 ....................1 EGAL INFORMATION AND RESPONSIBILITY ....................1 LECTROSTATIC DISCHARGE AWARENESS .............................1 AFETY ISSUES ............................1 ACTORY SETTINGS ..............................1 EFINITIONS DESCRIPTION OF OPTION ......................2 J...............................2 PTION MEC 310......................2... - Page 4 MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 J1939..........................37 LARMS ENERAL ............................38 LARMS VECO , JDEC – J ....................38 LARMS EERE ENGINES , MTU ADEC..........................39 LARMS , MTU MDEC – 2000/4000 – 302 & 303 ............40 LARMS SERIES MODULE ............................41...
-
Page 5: Warnings And Legal Information
Thomson Technology takes no responsibility for installation or operation of the engine set. If there is any doubt about how to install or operate the engine controlled by the unit, the company responsible for the installation or the operation of the set must be contacted. -
Page 6: Description Of Option
Description CAN-H CAN 1 CAN-GND CAN-L An overview of the terminals can be seen below. The slots are positioned in the unit as follows (rear of the unit): Term. 53: CAN-H Term. 54: CAN common Term. 55: CAN-L 9 10 11 12 13 14 15 16 17 18... -
Page 7: Wiring
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Wiring MEC 310: For wiring details, please refer to the document ‘Installation Instructions and Reference Handbook’. Principle diagram Display Option Option MEC 310 PLC (or computer), AMS (Alarm- and Module... -
Page 8: Functional Description
3. Functional description This communication extracts information from the Electronic Control Module (ECM) of an engine equipped with an ECM module with CANbus interface. The values can be used as display values, alarms/shutdown alarms and values to be transmitted through Modbus. -
Page 9: Communication System
Communication system All these protocols are based on a CANbus communication system. Except for the MDEC and ADEC communication, all of them are based on the J1939. The MDEC and ADEC protocols are MTU designed protocols based on CANopen. The baud rate is fixed by the engine manufacturer at:... -
Page 10: J1939 Measurement Table
J1939 measurement table This is the common J1939 measurement overview showing which measurements are available. Note that not all measurements are supported by the individual engines; please refer to the specific engine description. The table shows which values can be displayed in the view screens. - Page 11 MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Object selection, J1939 The view lines can be configured with these available values. For Modbus scaling, please see the table on page 39. The engine is expected to use source address 0.
-
Page 12: Verification Of J1939 Objects
The priority needs to be converted to decimal. Note that the 3 priority bits in this case are displayed in the CAN id (You see 0x c f00400 instead of 0x 0c f00400). In other cases you may read e.g. - Page 13 MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 The formula to find the priority number (P) is to divide by 4: 0xc = 12 (Dec) => Priority 3 Priority DecID HexID 0x10 0x14 0x18 Normally in SAE J1939, only priority 3 and 6 are used.
-
Page 14: Displaying Of J1939 Dm1/Dm2 And Scania Kwp2000 Alarms
KWP 2000 alarms can all be shown on the display. MEC 310 J1939 Use the up or down buttons until the DM1 or DM2 is shown in the display and press enter. The alarm log will be shown in the display. Example:... -
Page 15: Control Commands Sent To The Engine
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Control commands sent to the engine Engine types with the possibility to send commands to the ECM via the CANbus communication line: Engine type Command Preheat Start / Stop Engine speed... -
Page 16: Specific Engine Type Descriptions
Refer to the MEC 310 Installation and Operation Manual, chapter TPS 300 software configuration. If an alarm is enabled, it can be inhibited. The configuration of this inhibit function is selectable by means of the TPS 300 software in the menu line Settings/Inhibits. -
Page 17: Views Available On The Display
If a view line is not available, it will not be shown. • If the value for an available view line is not available due to some type of • error in the sensor, sub-system or module, ‘--’ is shown. -
Page 18: Display Functions
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Display functions The display indicates both readings and alarms. Illustrated below are examples with icons and English language. MEC 310 Type and software version. version Battery 24.0 V Battery voltage, RPM and running hours counter. -
Page 19: Running Detection
ON, or the measured frequency of the generator is above 30Hz, or the speed information given by the EIC communication is above the limit EICoverspeed_6010 During a stop sequence the generator is considered to be stopped, if:... -
Page 20: Caterpillar/Perkins (J1939)
The available alarms vary from engine type to engine type. Besides these, the entire log list can be read in the engine controller by holding the ‘LOG’ button for 3 seconds. Caterpillar/Perkins (J1939) -
Page 21: Cummins Cm850 (J1939)
FMI indication ‘ – ‘ means that the alarm in question is not supported. Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •... -
Page 22: Detroit Diesel Ddec (J1939)
FMI indication ‘ – ‘ means that the alarm in question is not supported. Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •... -
Page 23: Deutz Emr 2 (J1939)
FMI indication ‘ – ‘ means that the alarm in question is not supported. Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •... -
Page 24: General J1939 (J1939)
FMI indication ‘ – ‘ means that the alarm in question is not supported. Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •... -
Page 25: Iveco (J1939)
FMI indication ‘ – ‘ means that the alarm in question is not supported. Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •... -
Page 26: John Deere Jdec (J1939)
FMI indication ‘ – ‘ means that the alarm in question is not supported. Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •... -
Page 27: Mtu Adec (Canopen)
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 MTU ADEC (CANopen) The MTU ADEC is not a part of the J1939, therefore the reading of values, alarms and shutdowns are different. Display readings Object EIC speed EIC coolant temp. - Page 28 MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Warning Below is a list of warnings that can be shown on the display. The warnings will be shown as an alarm in the alarm window. The alarms can be acknowledged from the display, but they will be visible until the alarm disappears in the ECM module.
- Page 29 MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •...
-
Page 30: Mtu Mdec Module 302/303 (Mtu)
M Modbus RTU is implemented. Alarms Below is a list of alarms that can be shown on the display. The alarms will be shown in the alarm window. The alarms can be acknowledged from the display, but they will be visible until the alarm disappears in the ECM module. -
Page 31: Scania Ems (J1939)
Warnings and shutdowns (DNL2 alarms) Below is a list of warnings and shutdowns that can be shown on the display. They will be shown as an alarm in the alarm window. The alarms can be acknowledged from the display, but they will be visible until the alarm disappears in the ECM module. - Page 32 Fault in TPU Error in TPU Timer Processor Unit Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls) Droop • Engine speed •...
-
Page 33: Volvo Penta Ems (J1939)
It is only possible to write commands to the engine when the Scania Coordinator is NOT mounted. Control In the parameter 2770 it is possible to configure the droop setting and the initial speed setting. Volvo Penta EMS (J1939) Warnings and shutdowns... -
Page 34: Volvo Penta Ems 2 (J1939)
FMI indication “ – “ means that the alarm in question is not supported, Write commands to engine controller Engine controls • All the write commands to the engine controller (ex: speed, start/stop, etc.) are enabled in setting 7563 (EIC Controls). Engine speed •... -
Page 35: Parameters
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 5. Parameters Parameters related to engine communication can be found in settings 2770 and 7500-7660. Please refer to the separate parameter list for details: For MEC 310, please see the “MEC310 Installation and Operation Manual” document. -
Page 36: Modbus Communication
Please refer to the ECM (Engine Communication Module) user manuals for more information about the ECM protocol technical description and the details of each communication value. If option M is installed, then the data can be transmitted to a PLC, a computer, the alarm-and- monitoring system or a Scada system. - Page 37 MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Measurement table (read only) function code 04h. Addr Content Unit Scaling Description J1939 ADEC MDEC EIC coolant level 1/10 Coolant level EIC fuel rate [L/h] 1/10 Fuel rate EIC charge air press...
- Page 38 MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Measurement table (read only) function code 04h. Addr Content Unit Scaling Description J1939 ADEC MDEC EIC exch. temp A [deg] [F] 1/10 Exh. temp bank A EIC exch. temp B...
-
Page 39: Alarms, Caterpillar/Perkins
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Alarms, Caterpillar/Perkins Alarm, status and measurement table (read only) function code 04h. Addr. Content Type 1020 EIC alarms, MEC 310 Bit 0 7570 EIC communication error controller Bit 1 7580 EIC warning... -
Page 40: Alarms, Ddec - Detroit Engines
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Addr. Content Type Bit 15 EIC crankcase press., shutdown Alarms, DDEC – Detroit engines Alarm, status and measurement table (read only) function code 04h. Addr. Content Type 1020 EIC alarms, MEC 310... -
Page 41: Alarms, General J1939
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Alarms, General J1939 Alarm, status and measurement table (read only) function code 04h. Addr. Content Type 1020 EIC alarms, MEC 310 Bit 0 7570 EIC communication error controller Bit 1... -
Page 42: Alarms, Iveco
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Alarms, Iveco Alarm, status and measurement table (read only) function code 04h. Addr. Content Type 1020 EIC alarms, MEC 310 Bit 0 7570 EIC communication error controller Bit 1 7580 EIC warning... -
Page 43: Alarms, Mtu Adec
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Alarms, MTU ADEC Alarm, status and measurement table (read only) function code 04h. Addr. Content Type 1020 EIC alarms, MEC 310 Bit 0 EIC communication error controller Bit 2 EIC shutdown... -
Page 44: Alarms, Mtu Mdec Series - 2000/4000 - Module 302 & 303
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Addr. Content Type Bit 15 Power supply high voltage Alarms, MTU MDEC series – 2000/4000 – module 302 & 303 Alarm, status and measurement table (read only) function code 04h. Addr. Content Type 1020... -
Page 45: Alarms, Scania
MEC 310 GENSET CONTROLLER - Option J – CANbus J1939 Alarms, Scania Alarm, status and measurement table (read only) function code 04h. Addr. Content Type 1026 EIC alarms (KWP 2000) Bit 0 EIC overreving Bit 1 EIC speed sensor 1... -
Page 46: Alarms, Volvo Penta
EIC ECM red lamp, shutdown Bit 8 EIC high inlet air temperature, warning Bit 10 EIC battery voltage, warning Bit 11 EIC low oil level, warning Thomson Technology reserves the right to change any of the above. PM077 R1 09/08/20 Page 42 THOMSON TECHNOLOGY...
